• Model NO.：SCS
• Scale Structure：U-Type Steel
• Operating Environment：Non Explosion Proof Loadometer
• Lightning Protection：With Lightning Protection
• Transport Package：Ship
• Specification：PACKAGE
• Trademark：HZGH
• Origin：China
• HS Code：84238290
• Production Capacity：500

Basic Info.

Model NO. SCS Scale Structure U-Type Steel Operating Environment Non Explosion Proof Loadometer Lightning Protection With Lightning Protection Transport Package Ship Specification PACKAGE Trademark HZGH Origin China HS Code 84238290 Production Capacity 500

Product Description

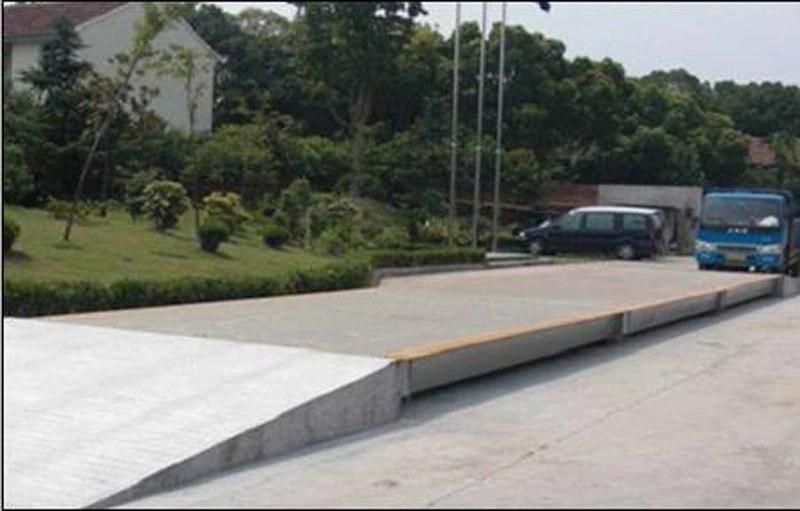

Name: Truck scale
Capacity: 10T-150T
Model: SCS-T (single, dual, three, four sections)

*SCS Analog / Digital Modular Full-electronic Truck Scale Series
*SCS truck scales have been tested with heavy-load for a long time and are optimized
*Gradually. Their main beams and auxiliary beams are made of rigid section-steels like I-steel, U-steel, etc. High quality steel plates are selected and used for its platform, and its scale body is reasonably pieced into closed box-type frame. While welding, we use the special technique and clamps, precision measure technology of space positioning and advanced weld-technic, so as to ensure the level degree of large area, the space geometry-dimension and the rational distribution of weld stress. All the main mechanical capacity is largelystrengthened, from the longitudinal anti-bending and horizontal anti-torque capability of its scale body to the part compressive-rigidity of its platform plate.
*Its surface layer is specially finished: Firstly its scale body is strictly processed with antirust and oxide-layer dislodging, secondly the managed surface is sprayed twice with the quality epoxy and rich-zinc antirust paint, then antirust-paint layer is sprayed with orange-veins acrylic acid polyurethane that is usually used in shipbuilding industry. So the property of abrasion, anti-press, anti-aging and antirust is enormously improved.

Detail file:
* Accuracy class: OIML III
* Weighing range: 10-150t
* Length of platform assembby: 6-24m
* Platform width: 3/3.4m
* Safety overload: 130% Max
* Max transmitting distance of analog signal: 100m
* Max transmitting distance of digital signal: 1000m
* Operating power supply: 240/220/110VAC, 50/60Hz
* Relative humidity: <95%
* Working temperature: -10-+40
