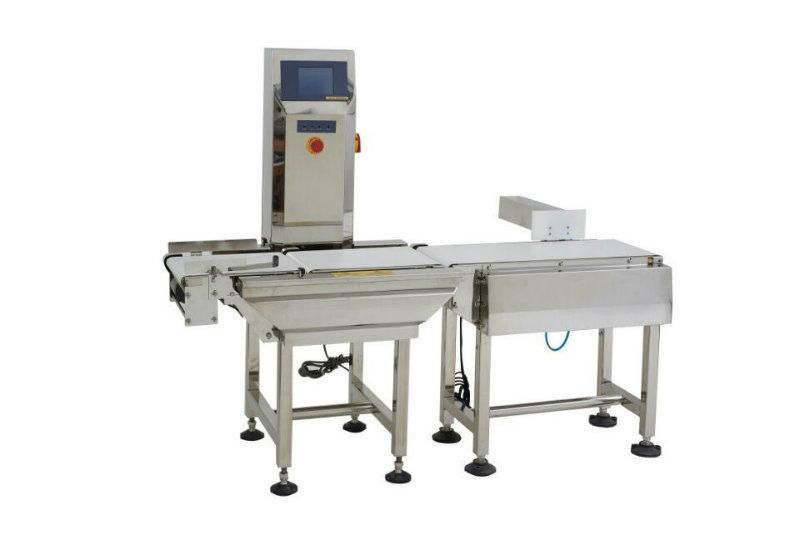

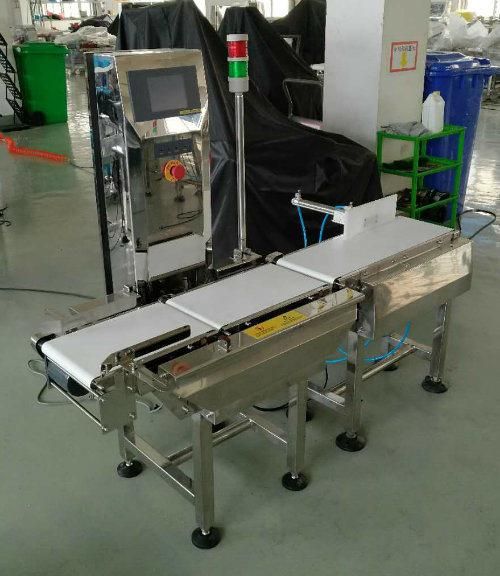

High Speed Auto Conveyor Check Weigher for Weight Less 1000g
Baoji Toptech Industrial Co., Ltd.- Accuracy：＜±0.5g, ＜±0.1g
- Check Weight Range：1-999g, 5-1000g
- Application Area：Food Product or Small Product Weight Sorting, Food Product or Other Small Product
- Type：Conveyor Model, Check Weigher Combination
- Touch Screen：Touch Screen, Touch Screen
- Sorting Method：Push Bar or Blow, Pusher-Bar
Base Info
- Model NO.：JL-230NS
- Certificate：Ce
- Application：Auto Weight Sorting for Small Weight Product
- Warranty：1 Year
- Speed：200bag,Min
- Transport Package：Wooden Case
- Specification：230MM
- Origin：China
- HS Code：8423302000
- Production Capacity：10000PCS
Description
Others parts
Load box / USB port/ Alarm pilot light
3,Parameters form:
| Weight range | Accuracy | Mini scale | Speed |
| 5-999g | ±0.3~±0.5g | 0.1g | Max: 70-80 can/min |
| Product size limited | L <=300mm | W <=220mm | H <=300mm |
4,Configuration list:
| Parts Name | qty | Brand |
| Weight sensor | 1 | Germany- HBM |
| Touch screen(10inch) | 1 | Taiwan- Winstar |
| Motor | 3 | China- Zhongda(ZD) |
| Frequency converter | 1 | Japan- Panasonic |
| Conveyor belt | 3 | Switzerland- HABASIT |
| Pneumatic element | 1 | Taiwan- Chelic |
| Solenoid valve | 1 | Taiwan- Chelic |
| Filter | 1 | Taiwan-ToNab |
| Photoelectric switch | 1 | Korea- Autoincs |
