Supmeter Modbus RTU Weighing Controller for Single Batching Scale
Changsha Supmeter Technological Co., Ltd.- After-sales Service：24 Hours After-Sale Service
- Warranty：12 Months
- Weighing：<30kg
- Accuracy：0.5%-1%
- Display Type：Touch Screen
- Display Digits：Touch Screen
Base Info
- Model NO.：BST106-M10[EB]
- Measure Method：Semi-Automatic
- Shell Material：Plastic
- Application：Batching Scale
- Certification：CE
- Customized：Customized
- Certificate：CE
- Sampling Frequency：800Hz
- Di&Do：7*Di & 18*Do
- Ao：0-10V * 2
- Communication：RS232&RS485
- IP Grade：IP65
- Power Supply：24V
- Communication Protocol：Modbus RTU
- Transport Package：Carton Box
- Specification：226.5*163.5*54mm [W*H*D]
- Trademark：SUPMETER
- Origin：China
- HS Code：8537109090
- Production Capacity：50000PCS,Year
Description
Product Description
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
4. 7"/10.2" Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
5. Loadcell Interface
6. Max. Connection Quantity: 16 Loadcells (350Ω).
7. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
8. Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
9. I/O Interface
10. 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
11. Optional 'Bulk/Medium/Dribble Feed' DOs for feeding control. Optional Continuous and Jogging Dribble Feed Methods.
12. 2 Definable analog signal AO[0~10V] for weight signal output or 'Bulk/Medium/Dribble Feed' control.
13. Digital Communication Interface
14. COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
15. COM[RS232] for connecting RS232 Serial Printer.
16. USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
17. Software Function
18. Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
19. Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
20. Load Calibration and Loss Calibration functions available.
21. 100 Recipes for packing control.
22. Optional 'Auto Correct Inflight' function.
23. Optional 'Pause for Tolerance Alarm' and 'Auto Dribble Re-feed' functions.
24. Optional 'Batch Target Control' function [With Batch Count Target or Batch Weight Target finished, the packing process will stop automatically].
25. The Batch Records can be printed automatically.
26. Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
27. With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations

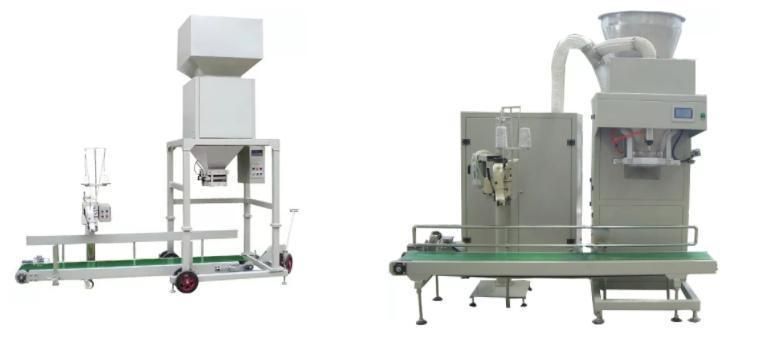

Suitable Application:

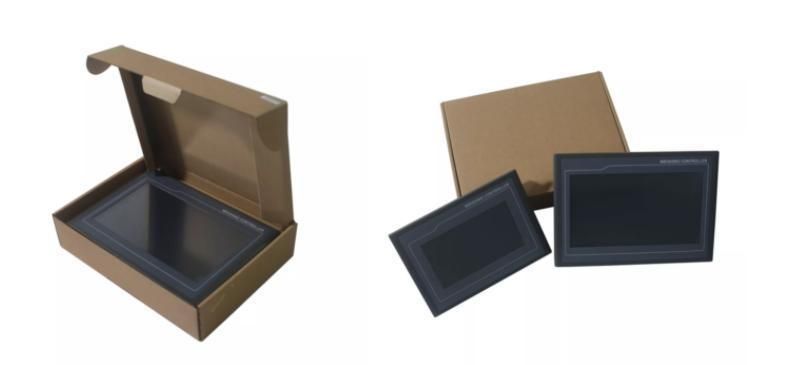

Package & Delivery:To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile:
SUPMETER is an experienced manufacturer which is working on manufacturing weighing indicator/controller. We have professional sales team, strong technical team and 24-hous working after-sale service. Cooperating with us, you will get high quality but low price products, fast and accurate delivery, family like service.
Warranty
Product Application
BST106-M10[BH] with TFT touch screen, suitable for Ration Packing Scale with optional Bucket-weighing Mode, Bag-weighing Mode and Loss-in-weight Mode. It is with the performance of high accuracy, good stability and easy operation. 7 inch and 10 inch can be chosen according to your desire.Main Features
1. Suitable for Ration Packing Scale with optional Bucket-weighing Mode, Bag-weighing Mode and Loss-in-weight Mode.2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
4. 7"/10.2" Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
5. Loadcell Interface
6. Max. Connection Quantity: 16 Loadcells (350Ω).
7. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
8. Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
9. I/O Interface
10. 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
11. Optional 'Bulk/Medium/Dribble Feed' DOs for feeding control. Optional Continuous and Jogging Dribble Feed Methods.
12. 2 Definable analog signal AO[0~10V] for weight signal output or 'Bulk/Medium/Dribble Feed' control.
13. Digital Communication Interface
14. COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
15. COM[RS232] for connecting RS232 Serial Printer.
16. USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
17. Software Function
18. Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
19. Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
20. Load Calibration and Loss Calibration functions available.
21. 100 Recipes for packing control.
22. Optional 'Auto Correct Inflight' function.
23. Optional 'Pause for Tolerance Alarm' and 'Auto Dribble Re-feed' functions.
24. Optional 'Batch Target Control' function [With Batch Count Target or Batch Weight Target finished, the packing process will stop automatically].
25. The Batch Records can be printed automatically.
26. Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
27. With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations
Suitable Application:
Package & Delivery:To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile:
SUPMETER is an experienced manufacturer which is working on manufacturing weighing indicator/controller. We have professional sales team, strong technical team and 24-hous working after-sale service. Cooperating with us, you will get high quality but low price products, fast and accurate delivery, family like service.
Warranty
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
