Customized Screw Plug Gauges Go and No Go 4h 5h 6h 7h 8h Thread Ring

Dongguan SYS Industrial Co., Ltd.
  • Type：Limit Gauge
  • Measurement Object：Inside Diameter
  • Test Methods：Through Check Method
  • Material：Steel
  • Precision Gauge：Precision Gauge
  • Certification：ISO, CE, DIN, JIS

Base Info

  • Model NO.：G03
  • Usage：For Working, For Inspection, For Checking
  • Shape：Round
  • Customized：Customized
  • Hardness：60HRC
  • Measuring Range：Metric and Inch
  • Standard：GB,DIN,ASTM
  • OEM：OEM Services Provided
  • Accuracy：0.001mm +-0.0005mm
  • Transport Package：Plastic Box
  • Specification：customized
  • Origin：China
  • HS Code：9017300000
  • Production Capacity：40000 PCS Per Month

Description

Basic Info.

Model NO. G03 Usage For Working, For Inspection, For Checking Shape Round Customized Customized Hardness 60HRC Measuring Range Metric and Inch Standard GB/DIN/ASTM OEM OEM Services Provided Accuracy 0.001mm +-0.0005mm Transport Package Plastic Box Specification customized Origin China HS Code 9017300000 Production Capacity 40000 PCS Per Month

Product Description

Customized Screw Plug Gauges Go and No Go 4h 5h 6h 7h 8h Thread RingCustomized Screw Plug Gauges Go and No Go 4h 5h 6h 7h 8h Thread RingCustomized Screw Plug Gauges Go and No Go 4h 5h 6h 7h 8h Thread RingUsage:
Threaded pipes can provide an effective seal for pipes transporting liquids, gases, steam, and hydraulic fluid. These threads are now used in materials other than steel and brass, including PTFE, PVC, nylon, bronze, and cast iron.

We can supply:

     1. Metric thread plug gauge & ring gauge from M1 to M100, accuracy 6H, 5H, 6G; 6g, 6h, etc

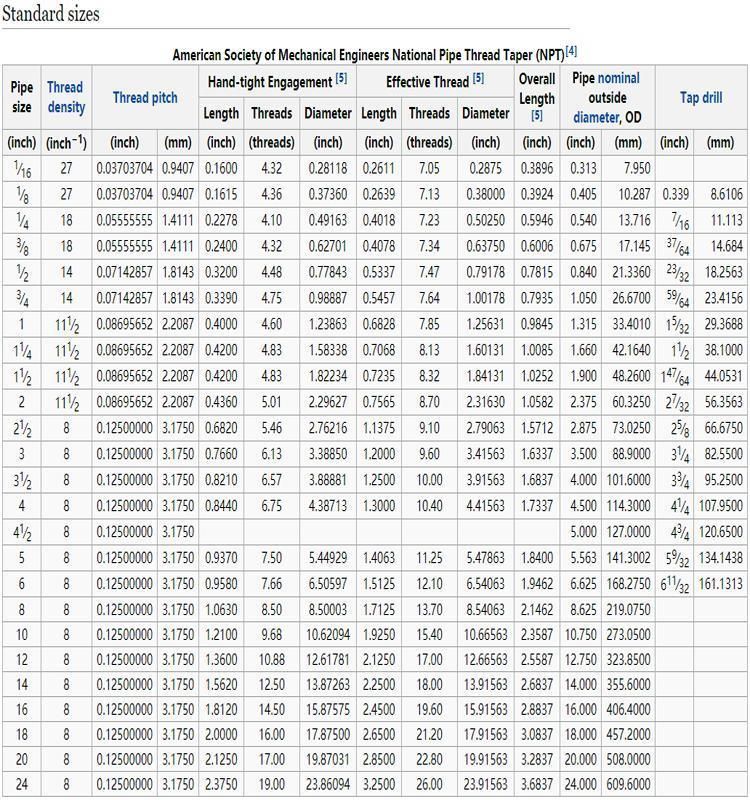

     2. US specification thread plug gauge& ring gauge (suitable for US standard) from No.0 - 80UNF, accuracy 2B, 3B, 2A, 3A (UNC, UNF, UNE, UN, UNS, etc) and taper pipe thread series NPT, NPTF, NPSM, ACME, STUB ACME, BUTT, etc
     3.UK thread plug gauge & ring gauge (suitable for European countries standard) from size 1/8 - 40 BSW, BSF, and taper pipe thread series with G, RC/R, PT, BA, etc
    4.For thread insert hole check, ST thread plug gauge, and TS ZS thread ring gauge
    5.For threaded hole positioning and measuring thread hole center distance Thread positioning gauge (thread vertical gauge, thread gauge)
    6.Oil Pipe Series Gauge API series
    7.Other series thread gauges: Pg, V1, V2, SM
