Digital Measuring Profile Projector (JT300: 300mm, 200mmX100mm)
Guiyang Xintian Oetech Co., Ltd.- Type:Measuring machine
- Material:Casting Iron Body
- Measurement Object:dimensions
- Range:0~300mm
- Resolution:0.001mm
- Precision:(3+L,75) micron
Base Info
- Model NO.:JT300
- Measure Method:Manual
- Accuracy:(3+L,75) micron
- Precision Measuring Device:Precision Measuring Device
- Certification:GB, CE, ISO
- Customized:Non-Customized
- Screen Diameter, Stage Travel(X*Y):300mm, 200mm*100mm
- Transport Package:Veneer Case
- Specification:ISO9001: 2000 CE & EMC Certification
- Trademark:Sinpo
- Origin:Guiyang, Guizhou, China
- HS Code:9031491000
- Production Capacity:2000 Uuits , Year
Description
Basic Info.
Model NO. JT300 Measure Method Manual Accuracy (3+L/75) micron Precision Measuring Device Precision Measuring Device Certification GB, CE, ISO Customized Non-Customized Screen Diameter, Stage Travel(X*Y) 300mm, 200mm*100mm Transport Package Veneer Case Specification ISO9001: 2000 CE & EMC Certification Trademark Sinpo Origin Guiyang, Guizhou, China HS Code 9031491000 Production Capacity 2000 Uuits / YearProduct Description
JT300 Φ300mm Profile ProjectorFeatures: -The up and down system adopts linear guide way and nuts without interference. It's more comfortable and stable. -The reflecting mirror adopts patent coating techniques with good anti-dust effects. -The transmission illumination has high and low levels, which can meet different measuring requirements. -Light source adopts Philip tungsten halogen lamp with high brightness and long using life to satisfy long time using demands. -Axial flow fan with strong dissipations heat function dissipates heat in double directions-The optical system has excellent quality, the objective forms clear image and the magnification is accurate. -The working distance on object is large, which can meet measuring requirements of different parts. -The RS232 port can realize the output and communication of data with computer. - It is erect image with external DRO which is according to the operator's habits. Technical parameters:
-Screen Diameter: Φ300mm
-Rotating range: 0°~360°
-Resolution of the rotary angle: 1
-Accuracy of the rotary angle: 6

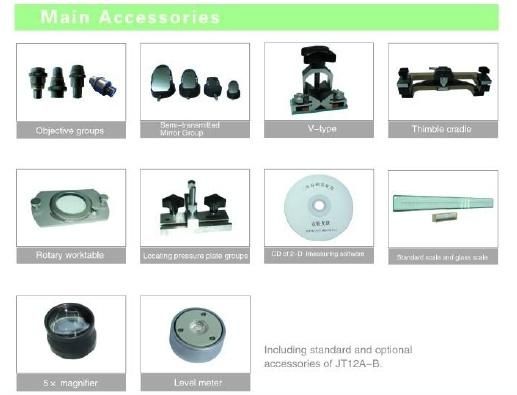

-Objective
Magnification Object Visual Field (mm) Object Working Distance (mm)
10X φ30 75.201
20X φ15 69.599
50X φ6 44.4
100X φ3 26.243
DS600 or DS401 Box
-Errorof magnifying power ≤ 0.08%
-Worktable area: 400×225mm
-Travel of workstage: X=200mm Y=100mm Z=90mm
-Display equivalent of X Y: 1μm
-Accuracy of instrument: (3+L/75) um, L unit: Mm
-Load capability of worktable: 5kg
-Lighting source
Transmission lighting: 12V 100W Halogen tungsten lamp
Reflecting lighting: 24V 150W Halogen tungsten lamp
-Overall sizes of the instrument (mm): 694×380×1065
-Machine Weight: 135 kg
-Ambient environment of the instrument service
-Working temperature: 20±5'C
-Relative humidity: Not more than 60%
Model | JT300 |
Projection Screen | φ300mm |
Rotation Range | 0°~360° |
Resolution of the rotary angle | 1′ |
Accuracy of the rotary angle | 6′ |
Objective Magnification Power | 10X 20X 50X 100X |
Objective Visual Field | φ30mm φ15mm φ6mm φ3mm |
Objective Working Distance | 75.201mm 69.599mm 44.4mm 26.243mm |
Error of magnification | 0.08% |
Range of X-coordinate (mm) | 150mm 200mm |
Range of Y-coordinate (mm) | 50mm 100mm |
Z -coordinate (mm) Focusing | 80mm |
Worktable area | 350×175 400×225 |
Resolution | 1μm |
Image | Erect |
Accuracy of Instrument | (3+L/75)μm |
Load Capacity | 3kg |
Overall Size(mm) | 806×380×1065 |
Transmission Lighting | 12V 100W Halogen tungsten lamp |
Reflecting Lighting | 24V 150W Halogen tungsten lamp |
Rated Voltage | |
Mainframe Weight | 180kg |
