Customzied Measuring Tool Precision Measurement Concentricity Gage
Dongguan SYS Industrial Co., Ltd.- After-sales Service：OEM
- Warranty：OEM
- Type：Concentricity Gauge
- Material：Stainless Steel
- Measurement Object：Concentricity
- Range：10-50mm
Base Info
- Model NO.：SL-1050
- Resolution：0.003mm
- Precision：0.003mm
- Measure Method：Manual
- Accuracy：A
- Precision Measuring Device：Precision Measuring Device
- Certification：GB, ISO
- Customized：Customized
- Measuring Length：102mm
- Test Range：3-25mm; 10-50mm; 20-102mm
- Transport Package：Carton Box
- Specification：5kg
- Trademark：SYS
- Origin：China
- HS Code：90173000
- Production Capacity：200PCS,Month
Description
<=0.003SL-1050 10-50 152 2 SL-20102 20-102 203 2
It is application for centrifugal pumps, compressors, fans, generators and other rotating equipment to find the concentricity of the two axes of work. Widely used in petrochemical, power generation, paper, textile, and other machinery industries.

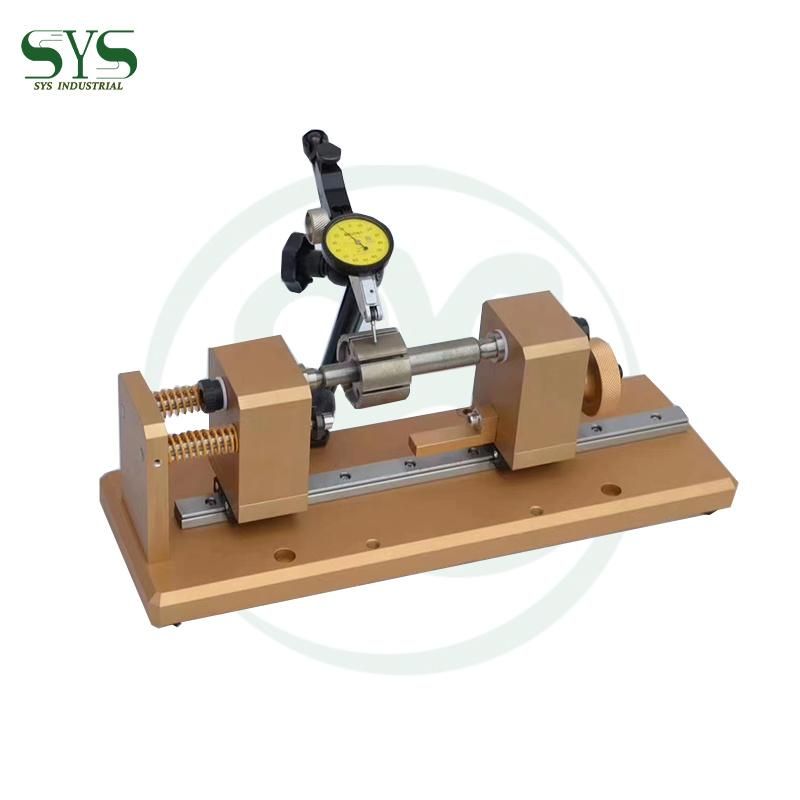

This concentricity gauge has axial dial indicator or micrometer, It is easy to read.
The base is equipped with high-performance magnets, which can be firmly adsorbed on the 12mm diameter tie bar, used to detect the concentricity of cylindrical pin type, gear type, fixed type, bolt type and other shaft workpieces, which not only improves the measurement accuracy and reduces the measurement error, but also can greatly improve the working efficiency, reduce the machine vibration and prolong the service life.
Features:
1.Accuracy more 0.003mm
2.Save time and fast measuring device.
3.Portable and easy to operation
4.Suitable for working on floor
5.Measuring range: 3-25mm; 10-50mm; 20-102mm
6.Measuring length: 102mm
7.Parallel runner: Parallel light wheel/parallel sheave
8.Support customized size/specification.
Application:
1.Precise measurement of roundness, concentricity, circular runout and section difference of shaft parts;
2.Simultaneous precise measurement of outer and inner parameters of shaft parts;
3.Simultaneous precise measurement of multi-point parameters of shaft parts;
4.Quick measurement, cross section, inner circle and outer circle.
It is application for centrifugal pumps, compressors, fans, generators and other rotating equipment to find the concentricity of the two axes of work. Widely used in petrochemical, power generation, paper, textile, and other machinery industries.
This concentricity gauge has axial dial indicator or micrometer, It is easy to read.
The base is equipped with high-performance magnets, which can be firmly adsorbed on the 12mm diameter tie bar, used to detect the concentricity of cylindrical pin type, gear type, fixed type, bolt type and other shaft workpieces, which not only improves the measurement accuracy and reduces the measurement error, but also can greatly improve the working efficiency, reduce the machine vibration and prolong the service life.
