• Model NO.：WME-070R-NMW1
• Memory：128MB DDR2
• Flash：512MB Nandflash
• Lead Acid Battery：12V 2.2ah
• Screen Type：Resistive Touch Screen
• Transport Package：1PC,Inner Box ,Master Carton
• Trademark：WQ,OEM
• Origin：Guangzhou
• HS Code：8517709000
• Production Capacity：100000PCS,Year

Basic Info.

Model NO. WME-070R-NMW1 Memory 128MB DDR2 Flash 512MB Nandflash Lead Acid Battery 12V 2.2ah Screen Type Resistive Touch Screen Transport Package 1PC/Inner Box /Master Carton Trademark WQ/OEM Origin Guangzhou HS Code 8517709000 Production Capacity 100000PCS/Year

Product Description

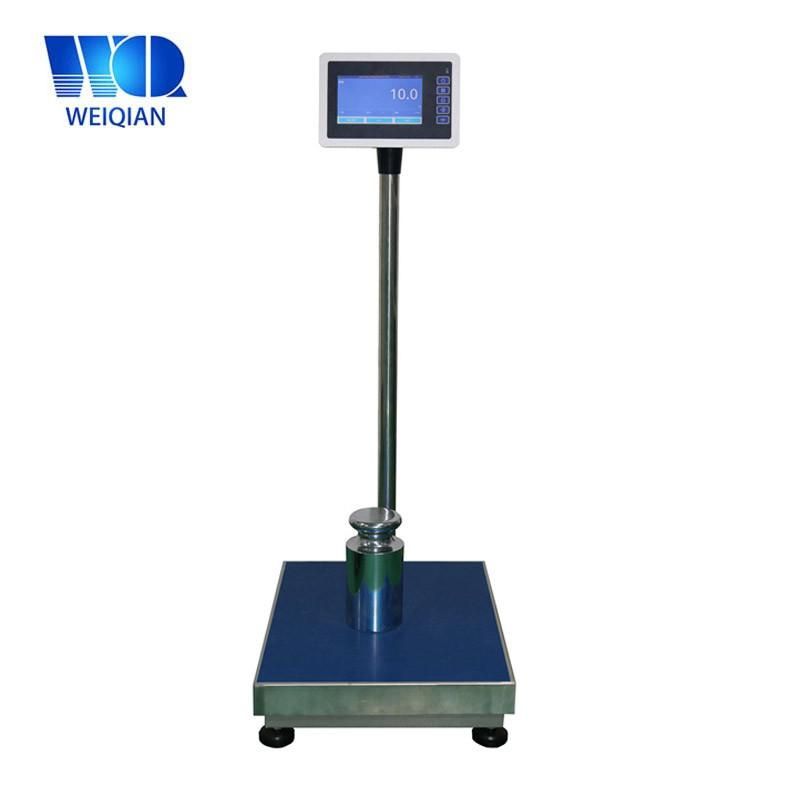

Intelligent Electronic Platform Balance Desktop Scale Loadometer Weighing system instrument Solution

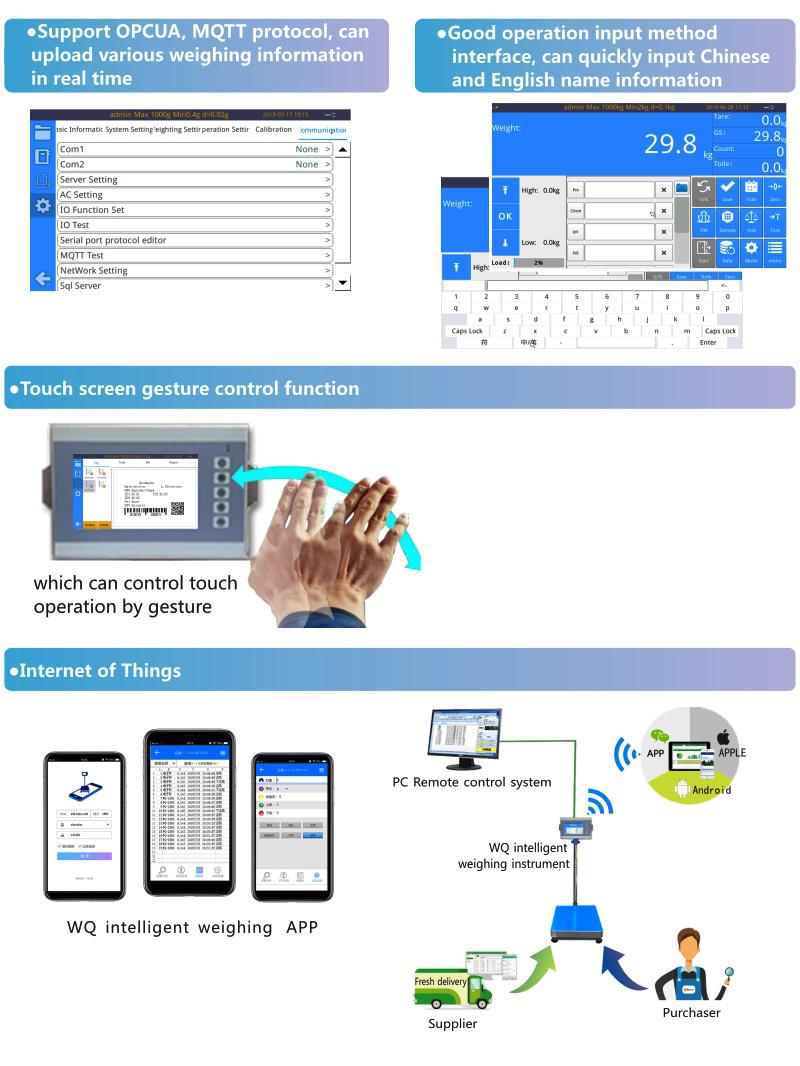

This electronic scale is aimed at developing the weighing control market in the industry. The product adopts high-precision, high-performance sampling chip, which has the characteristics of high measurement accuracy, fast response speed, good stability and powerful functions, and is equipped with various external communication interfaces, such as serial port and network port. It can realize various real-time network communication functions.






Our Advantages :

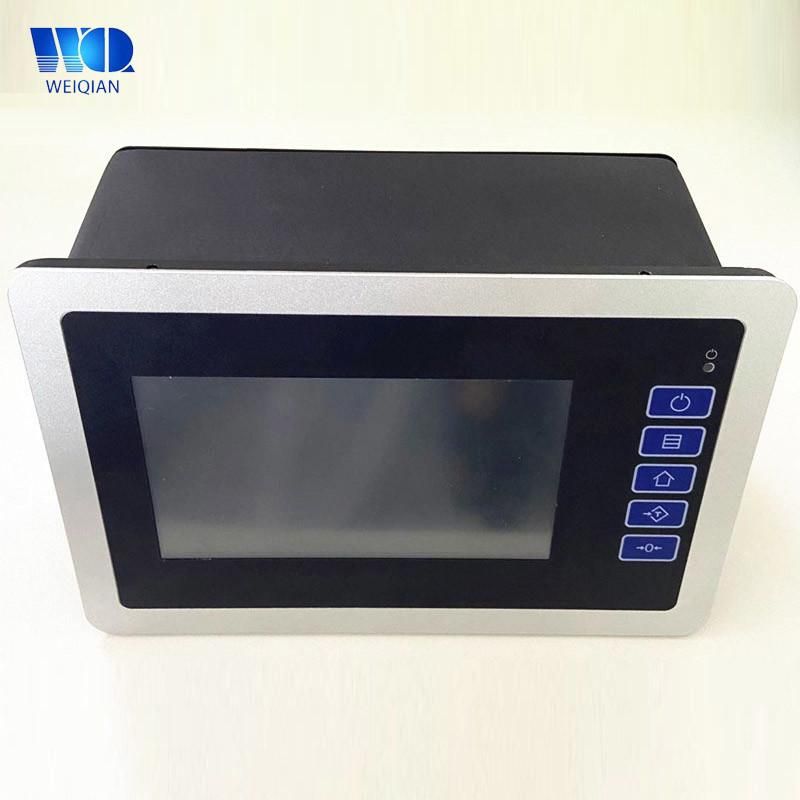

★ Panel design, compact appearance, can be installed in a variety of weighing control equipment.

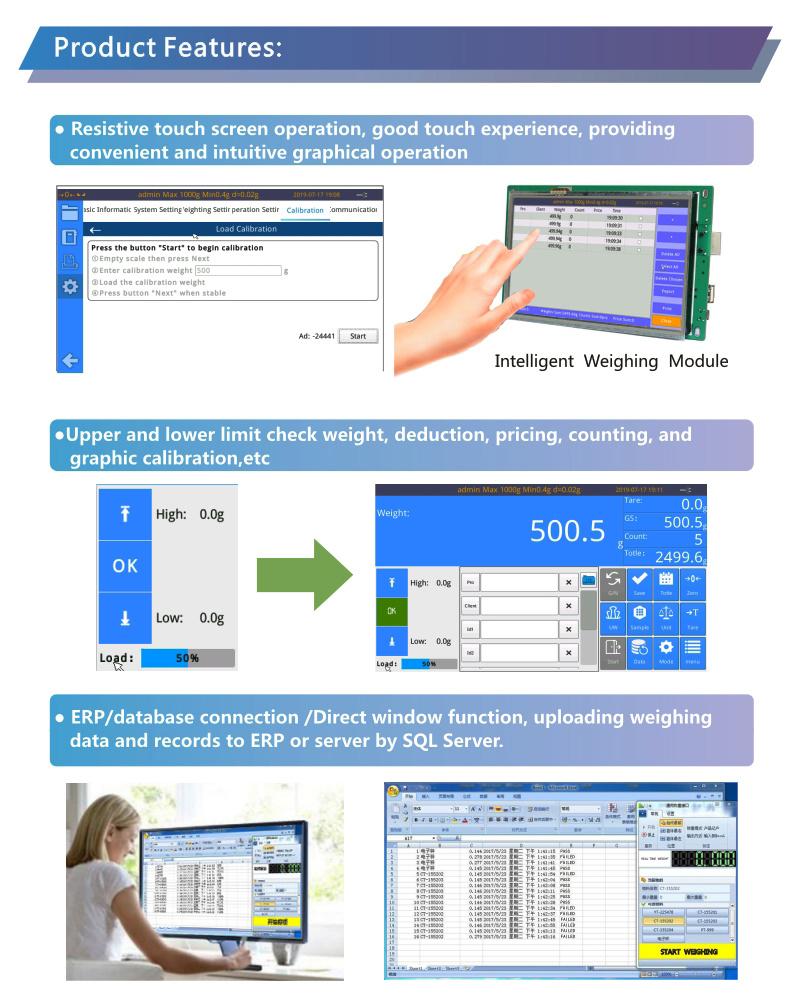

★ Resistive touch screen with the use of the soft keys on the panel make the operation of the product simpler and more practical, and more consistent with the customer's usage habits.
★ 7 inch / 10.2 inch LCD display with beautiful layout of the system control interface, can make the user get a perfect visual experience during the operation.
★ The setting of different weighing units can be carried out, and the weighing accuracy can reach  hundred thousandth.
★ Weighing upper and lower limit setting, with automatic save function, make weighing more intelligent.
★ Selecting the function switch between piece counting and weighing, can meet the actual weighing requirements.
★ Two kinds of different weighing modes, standard mode or subtraction mode, making the product more suitable for practical use.

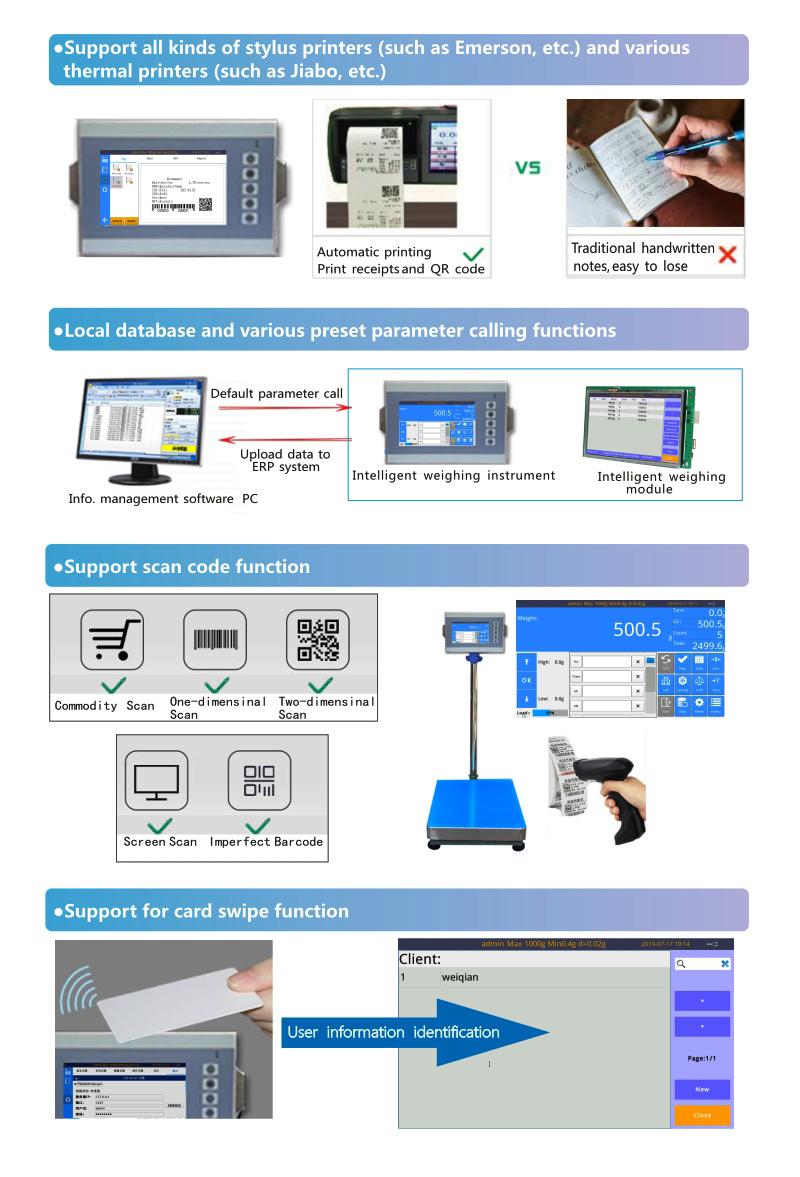

★ Flexible installation and extension, multiple external interfaces, support for small ticket printers;
★ Accurate weighing, combined with software system functions, to achieve automatic calibration of weight data;
★ Customized development, providing functional custom development services;







1.Parameter

Product model	WME-070R-NMW1
Basic parameters	CPU:ARM 9 architecture,frequency 300MHZ Memory:128MB DDR2 Flash:512MB NandFlash Lead acid battery:12V 2.2AH , battery life : 5 hours
Display screen	Size:7 inch Resolution:800×480 Wide-temperature type,64K colors or 260K colors LED backlight:lifetime > 25000 hours
Touch screen	Resistive touch screen

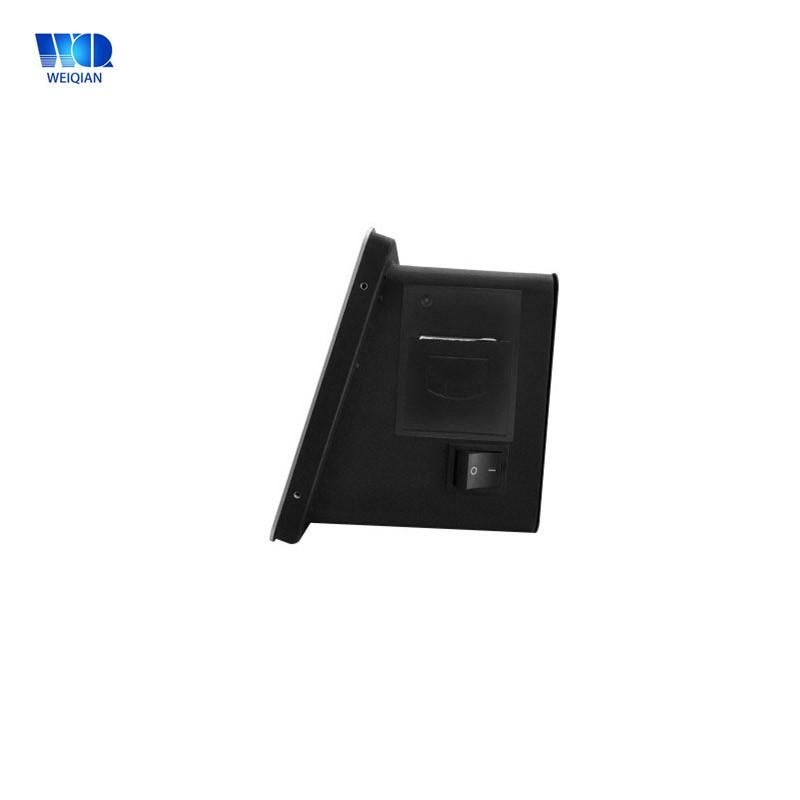

Hardware interface	2 channel 3-wire RS-232 serial port (COM1,COM2) 1 channel RS-485 serial port 2 channel USB Host interface, support mouse ,keyboard,U disk, barcode scanner ,etc . 1 channel 100M Ethernet 1 channel Power interface (DC 24V) 1 channel Sensor interface ( Air plug) IO interface ( 4 input & 4 output) 1 channel built-in WIFI interface ( optional ) Support built-in 58MM Printer( optional )
OS	Linux
Defend degree	IP65( front panel )
Working Environment	Working condition:24V DC,600mA Working Temperature:-10~50ºC Working humidity:10~85%RH
Technical parameters	Accuracy class: 3 AD Resolution :24bit Display Accuracy : 1/50000 Input sensitivity: 0.3-6mv /V Excitation voltage :5V AD Conversion rate: 40 t/s Support 1x 350 Ω sensor

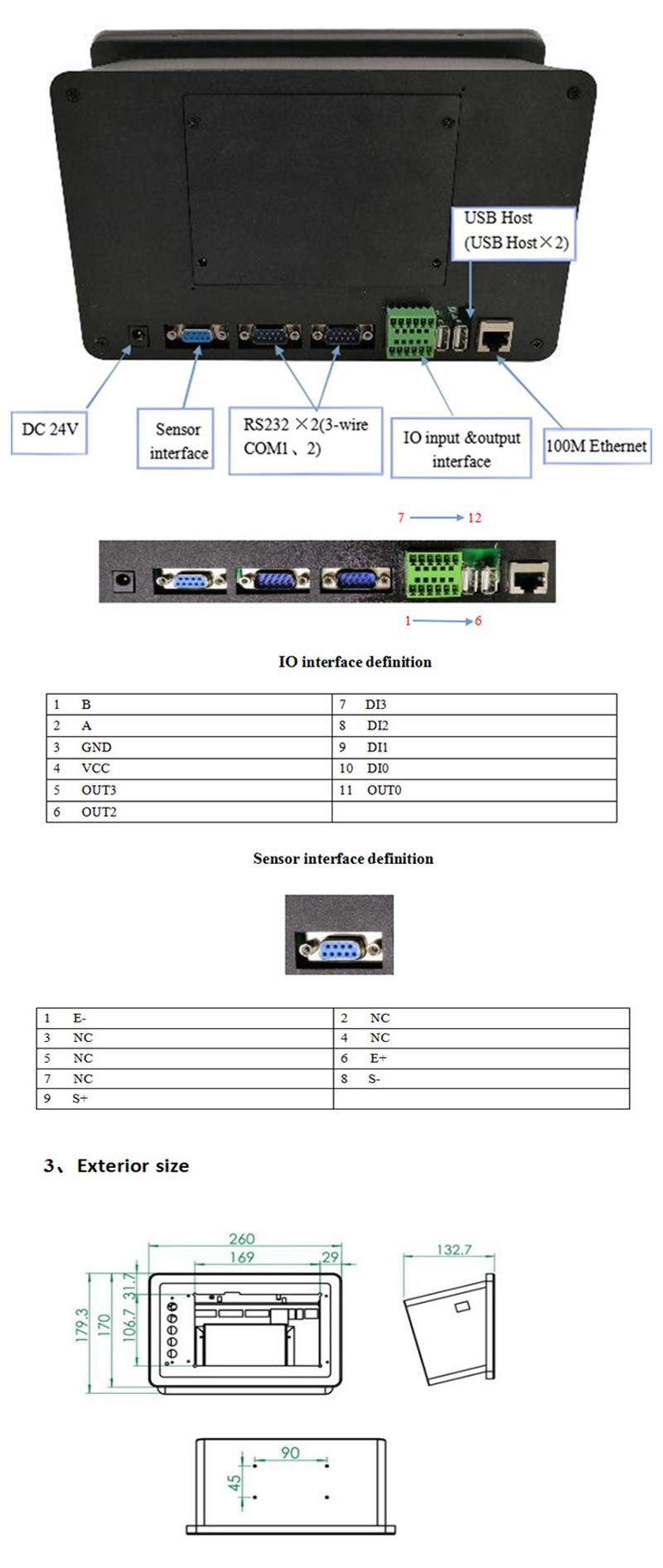

2. Interface Definition









Transport and Packing process

1. Express (UPS,DHL,Fedex,EMS,etc) is available.

2. Sea and Air delivery is available.


Delivery Time

1. Samples: 1-5 working days

2. 100PCS or More orders: 10-15 working days
