• Model NO.：50-0200
• Precision：6h
• Measure Method：Manual
• Accuracy：A
• Precision Measuring Device：Precision Measuring Device
• Certification：JIS, DIN, ANS, GB, RoHS, ISO
• Customized：Customized
• Transport Package：Plastic Box
• Specification：M2-M60
• Trademark：OEM
• Origin：China
• HS Code：9017300000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 50-0200 Precision 6h Measure Method Manual Accuracy A Precision Measuring Device Precision Measuring Device Certification JIS, DIN, ANS, GB, RoHS, ISO Customized Customized Transport Package Plastic Box Specification M2-M60 Trademark OEM Origin China HS Code 9017300000 Production Capacity 5000PCS/Month

Product Description

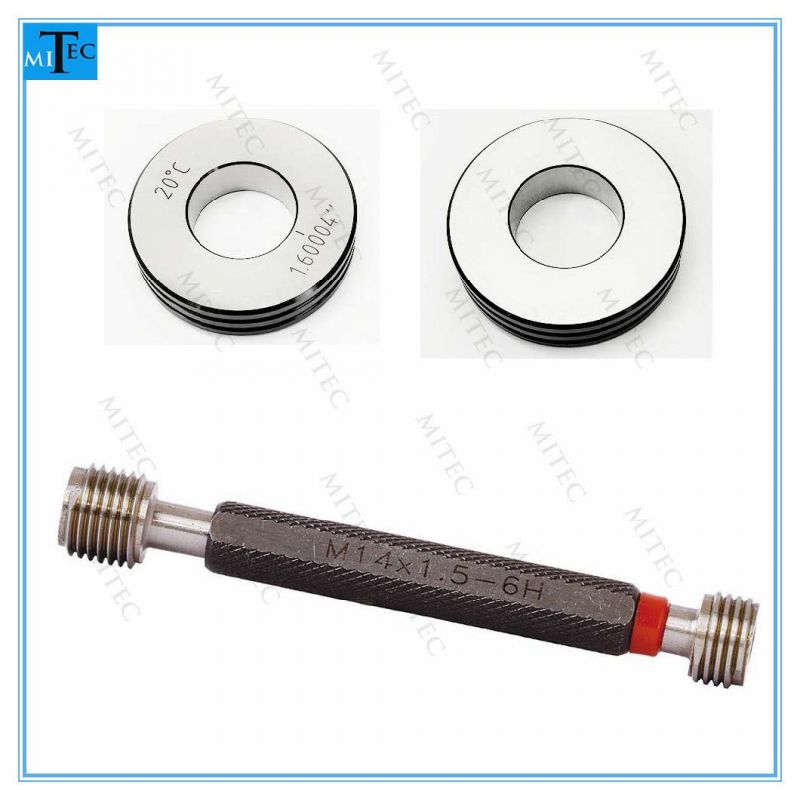

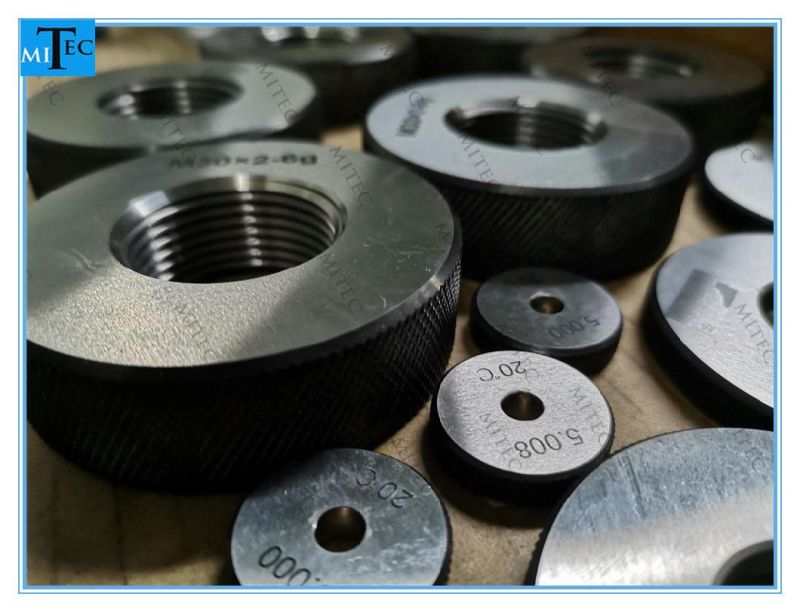

Product Name: China Factory Go Nogo Ring Gauges Thread Plug Gauge
Features:

• Individual serial number on each gauge
• Follow DIN standard

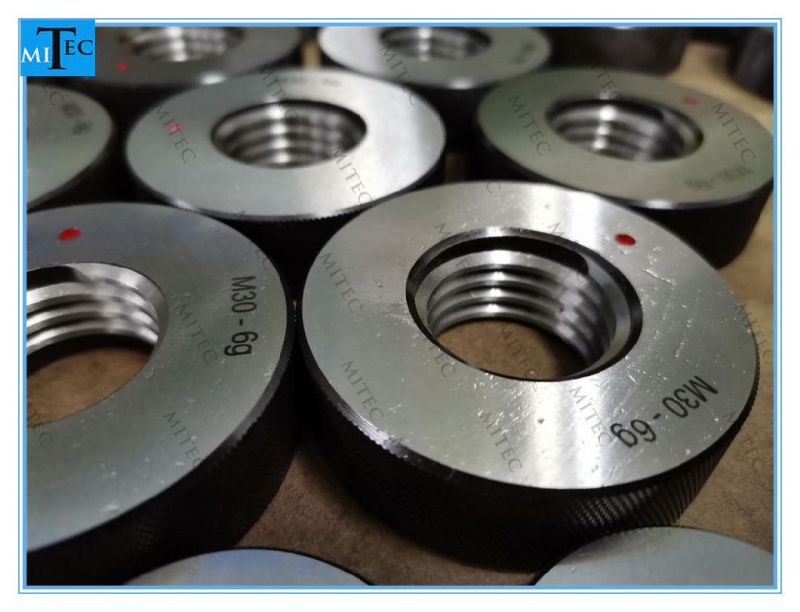

Metric Coarse Thread

Size	Plug Gauge 6H	Ring Gauge (Go, 6g)	Ring Gauge (No Go, 6g)
M2 x 0.4	50-0200	55-0200	65-0200
M3 x 0.5	50-0300	55-0300	65-0300

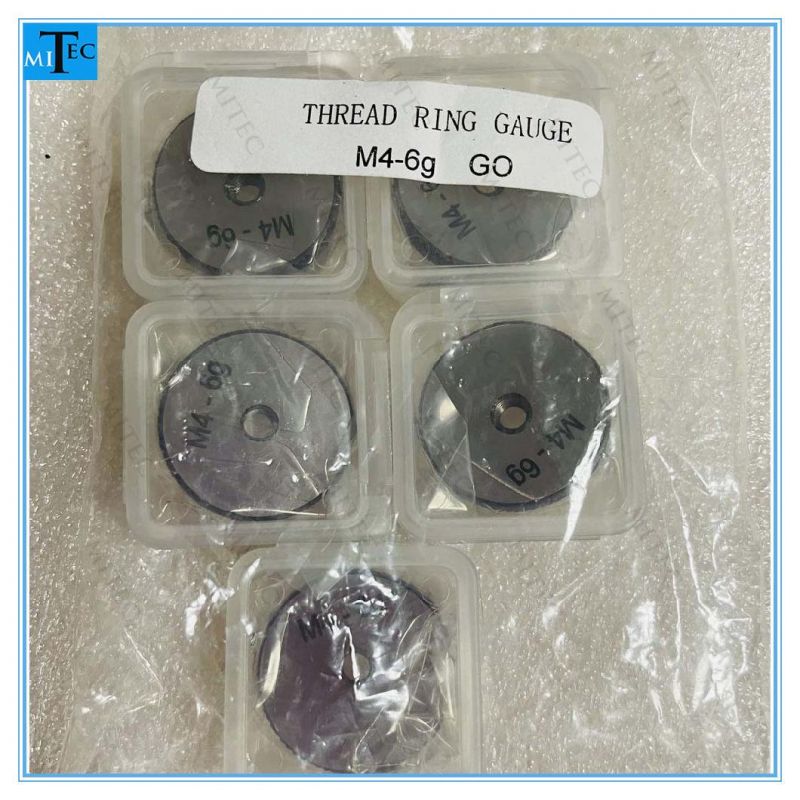

M4 x 0.7	50-0400	55-0400	65-0400

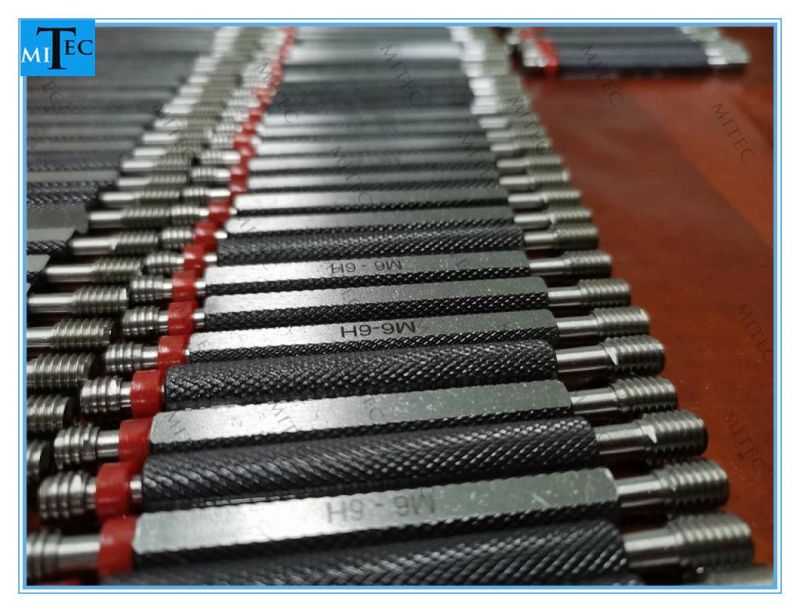

M5 x 0.8	50-0500	55-0500	65-0500
M6 x 1.0	50-0600	55-0600	=65-0600
M8 x 1.25	50-0800	55-0800	65-0800
M10 x 1.5	50-1000	55-1000	65-1000
M12 x 1.75	50-1200	55-1200	65-1200
M14 x 2.0	50-1400	55-1400	65-1400
M16 x 2.0	50-1600	55-1600	65-1600
M18 x 2.5	50-1800	55-1800	65-1800
M20 x 2.5	50-2000	55-2000	65-2000
M22 x 2.5	50-2200	55-2200	65-2200
M24 x 3.0	50-2400	55-2400	65-2400
M27 x 3.0	50-2700	55-2700	65-2700
M30 x 3.5	50-3000	55-3000	65-3000
M33 x 3.5	50-3300	55-3300	65-3300
M36 x 4.0	50-3600	55-3600	65-3600
M42 x 4.5	50-4200	55-4200	65-4200
M45 x 4.5	50-4500	55-4500	65-4500
M48 x 5.0	50-4800	55-4800	65-4800
M52 x 5.0	50-5200	55-5200	65-5200
M56 x 5.5	50-5600	55-5600	65-5600
M60 x 5.5	50-6000	55-6000	65-6000

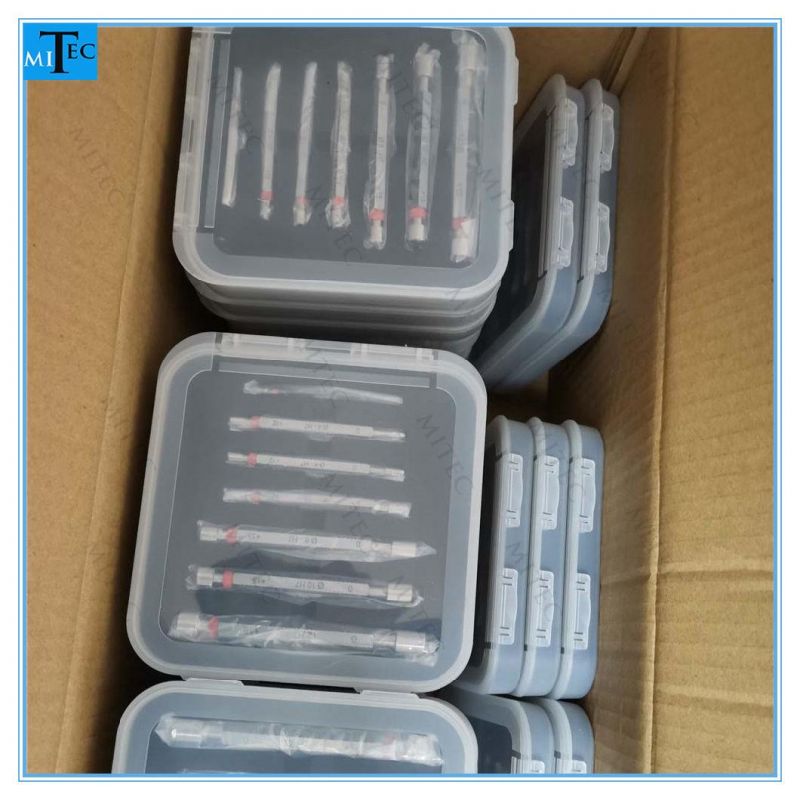

Plug Gage Set

Size	Plug Gauge

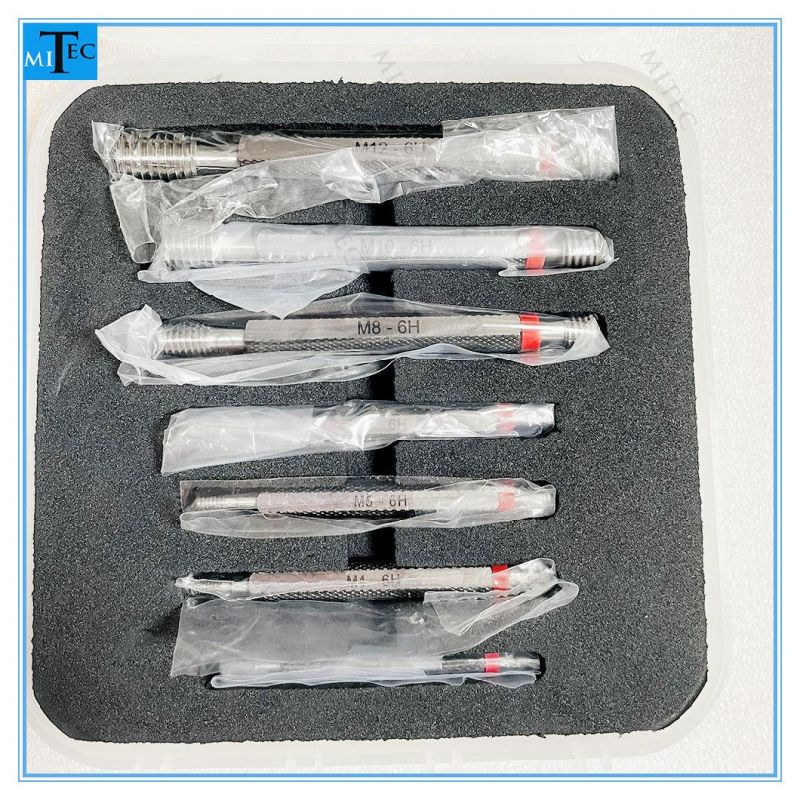

7pcs set (M3,M4,M5,M6,M8,M10,M12)	50-0312T

Metric Fine Thread

Size	Plug Gauge 6H	Ring Gauge (Go, 6g)	Ring Gauge (No Go, 6g)
M2 x 0.35	50-0201	55-0201	65-0201
M3 x 0.35	50-0301	55-0301	65-0301
M4 x 0.35	50-0401	55-0401	65-0401
M5 x 0.35	50-0501	55-0501	65-0501
M5 x 0.5	50-0502	55-0502	65-0502
M6 x 0.5	50-0602	55-0602	65-0602
M8 x 0.5	50-0802	55-0802	65-0802
M10 x 0.5	50-1002	55-1002	65-1002
M10 x 0.75	50-1003	55-1003	65-1003
M12 x 0.75	50-1203	55-1203	65-1203
M8 x 1.0	50-0804	55-0804	65-0804
M10 x 1.0	50-1004	55-1004	65-1004
M12 x 1.0	50-1204	55-1204	65-1204
M10 x 1.25	50-1005	55-1005	65-1005
M12 x 1.25	50-1205	55-1205	65-1205
M10 x 1.5	50-1006	55-1006	65-1006
M12 x 1.5	50-1206	55-1206	65-1206
M16 x 1.5	50-1606	55-1606	65-1606
M18 x 2.0	50-1807	55-1807	65-1807
M20 x 2.0	50-2007	55-2007	65-2007
M30 x 3.0	50-3008	55-3008	65-3008
M33 x 3.0	50-3308	55-3308	65-3308
M36 x 3.0	50-3608	55-3608	65-3608

ANSI UNC Thread

• Individual serial number on each gauge
• Follow ANSI/ASME standard

• Size	Plug Gauge (Class 2B)	Ring Gauge (Go, 2A)	Ring Gauge (No Go, 2A)
  3-48	51-0030048	56-0030048	66-0030048
  4-40	51-0040040	56-0040040	66-0040040
  5-40	51-0050040	56-0050040	66-0050040
  6-32	51-0060032	56-0060032	66-0060032
  8-32	51-0080032	56-0080032	66-0080032
  10-24	51-0100024	56-0100024	66-0100024
  12-24	51-0120024	56-0120024	66-0120024

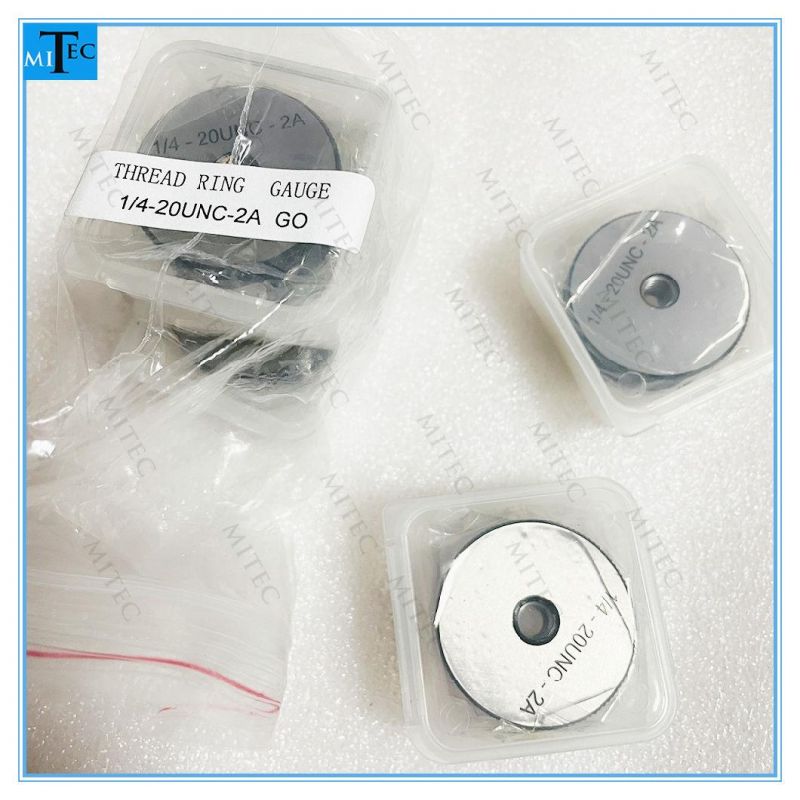

  1/4-20	51-0010420	56-0010420	66-0010420
  5/16-18	51-0051618	56-0051618	66-0051618
  3/8-16	51-0030816	56-0030816	66-0030816
  7/16-14	51-0071614	56-0071614	66-0071614
  1/2-13	51-0010213	56-0010213	66-0010213
  9/16-12	51-0091612	56-0091612	66-0091612
  5/8-11	51-0050811	56-0050811	66-0050811
  3/4-10	51-0030410	56-0030410	66-0030410
  7/8-9	51-0070809	56-0070809	66-0070809
  1-8	51-1000008	56-1000008	66-1000008

  ANSI UNF Thread
• Individual serial number on each gauge
• Follow ANSI/ASME standard

• Size	Plug Gauge (Class 2B)	Ring Gauge (Go, 2A)	Ring Gauge (No Go, 2A)
  3-56	51-0030056	56-0030056	66-0030056
  4-48	51-0040048	56-0040048	66-0040048
  5-44	51-0050044	56-0050044	66-0050044
  6-40	51-0060040	56-0060040	66-0060040
  8-36	51-0080036	56-0080036	66-0080036
  10-32	51-0100032	56-0100032	66-0100032
  12-28	51-0120028	56-0120028	66-0120028
  1/4-28	51-00010428	56-0010428	66-0010428
  5/16-24	51-0051624	56-0051624	66-0051624
  3/8-24	51-0030824	56-0030824	66-0030824
  7/16-20	51-0071620	56-0071620	66-0071620
  1/2-20	51-0010220	56-0010220	66-0010220
  9/16-18	51-0091618	56-0091618	66-0091618
  5/8-18	51-0050818	56-0050818	66-0050818
  3/4-16	51-0030416	56-0030416	66-0030416
  7/8-14	51-0070814	56-0070814	66-0070814
  1-12	51-1000012	56-1000012	66-1000012

• Whitworth Thread
• Individual serial number on each gauge
• Follow DIN standard

• Size	Plug Gauge (Class 2B)	Ring Gauge (Go, 2A)	Ring Gauge (No Go, 2A)
  G1/8	52-00108	57-00108	67-00108
  G1/4	52-00104	57-00104	67-00104
  G3/8	52-00308	57-00308	67-00308
  G1/2	52-00102	57-00102	67-00102
  G5/8	52-00508	57-00508	67-00508
  G3/4	52-00304	57-00304	67-00304
  G7/8	52-00708	57-00708	67-00708
  G1	52-10000	57-10000	67-10000
  G1-1/4	52-10104	57-10104	67-10104
  G1-1/2	52-10102	57-10102	67-10102
  G1-3/4	52-10304	57-10304	67-10304
  G2	52-20000	57-20000	67-20000
