Non-Contact Continuous Level Measurement Radar Level Gauge for Storage Tanks
Hebei Huachuang M&C Technology Co., Ltd.- Material：Stainless Steel
- Resolution：0.01mm Water Level Guage
Base Info
- Model NO.：HCDAR-6X
- Accuracy：0.1%Fs 0.2%Fs 0.5%Fs
- Customized：Customized
- Application：Liquid
- Measuring Range：0.5m~350m
- Operating Temperatureon：-20~80ºC Water Level Guage
- Protection Grade：Explosion-Proof Exia Iic T6 Ga
- Signal Output：4~20mA,RS485modbus
- Product Type：Level Sensor
- Product Type1：Water Level Guage
- Transport Package：0-30 M Level Sensor
- Specification：28.5*22*17CM
- Trademark：HCCK
- Origin：Hebei
- Production Capacity：100000
- Package size per unit product：30.00cm * 25.00cm * 20.00cm
- Gross weight per unit product：2.000kg
Description
Overview

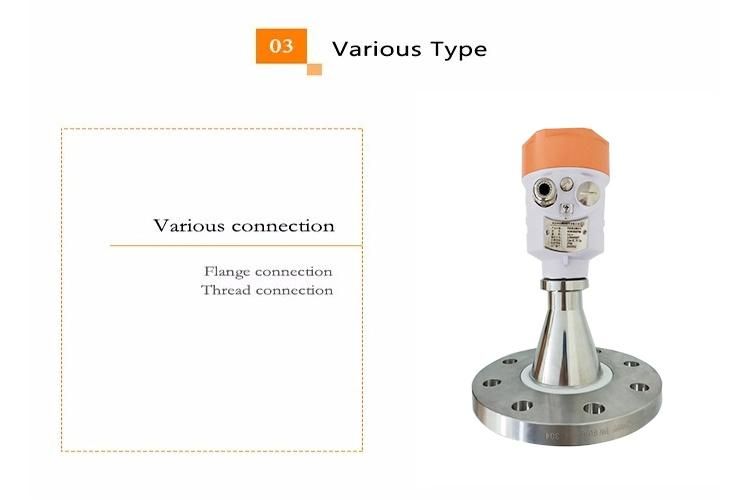

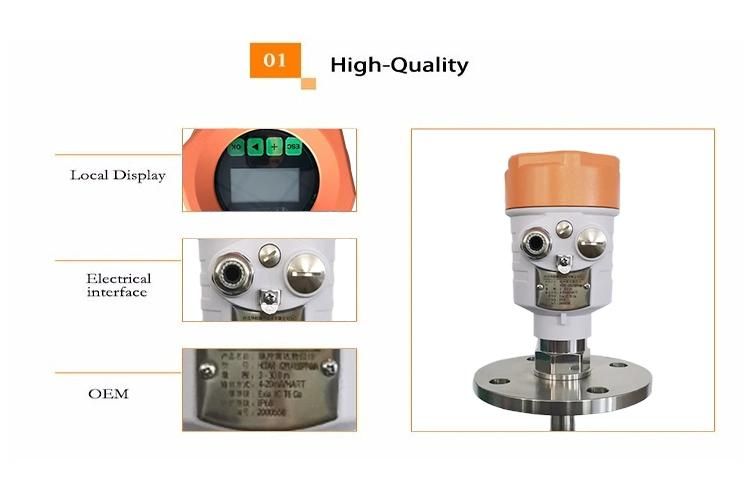

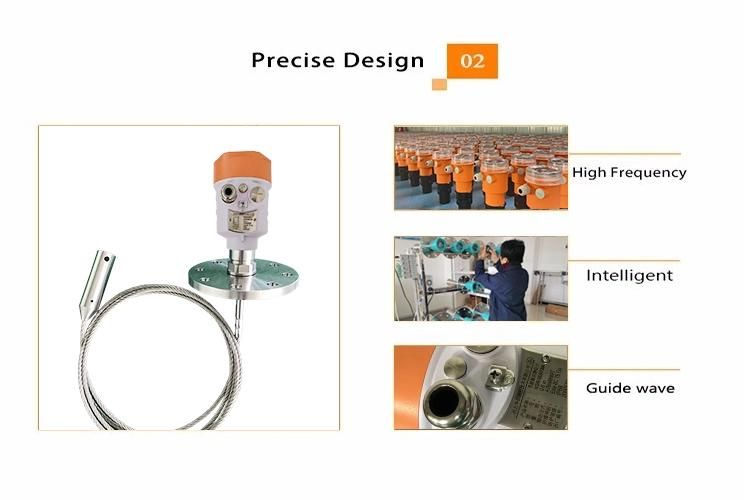

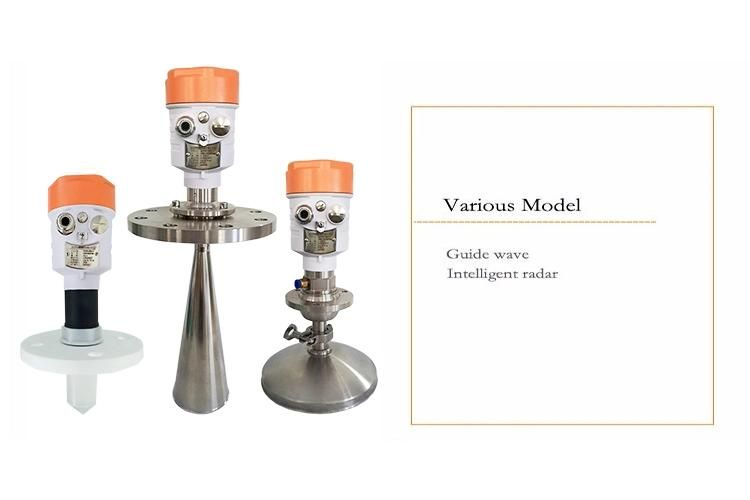

Product Description Detailed Photos

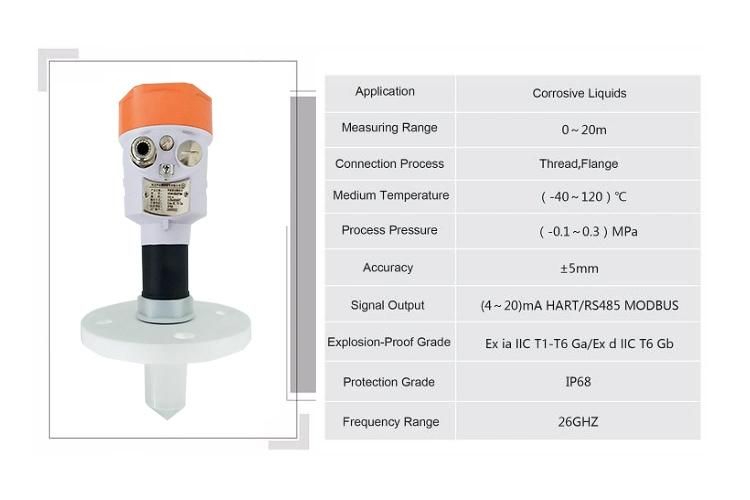

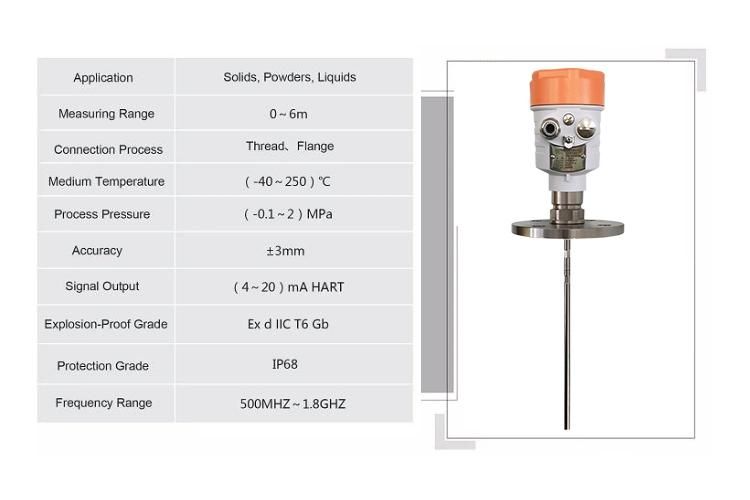

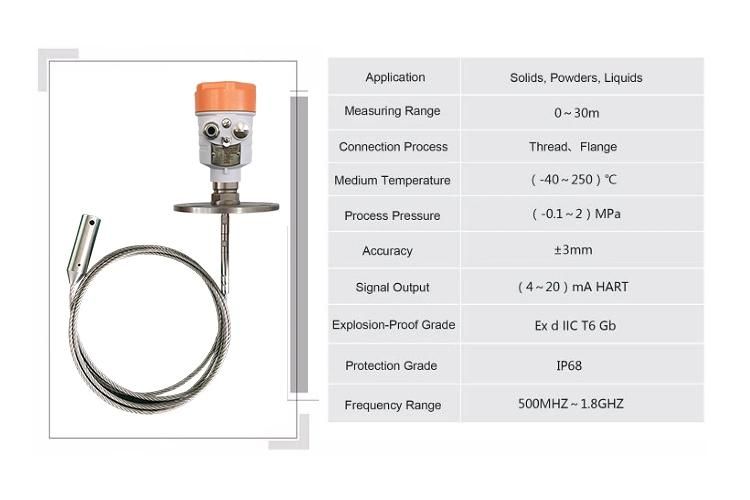

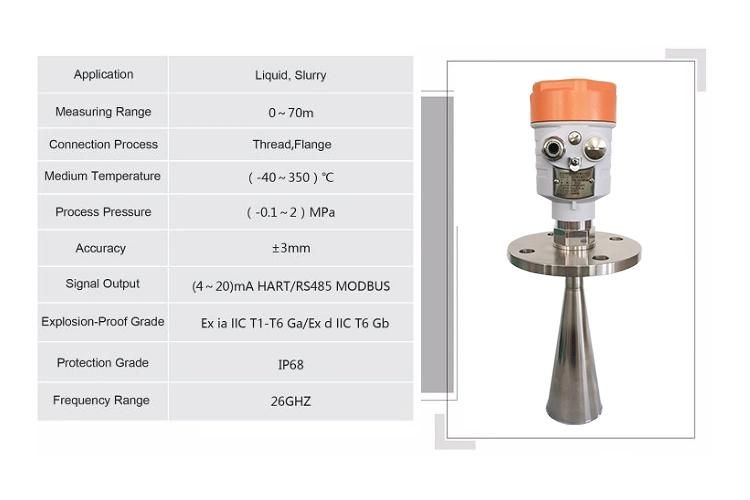

Product Parameters
C.[Installation]
1. Installation Location
- The distance from tank to level meter must more than 1/6 diameter of tank;
- The min distance from the tank wall is 300mm;
- Can not installa the level meter on the top of feed inlet;
- Can not installa the radar level meter at central location;
- Within the signal beam,there should be no installation.
2.Guide wave installation
- Do not tilt the antenna to the pipe wall;
- To min temperature effects,pls installa the washer at the flange connection;
- The rod antenna must have a short pole at the launch of the radar;
- Vertical antenna rod, do not let the radar wave pointing to the tank wall.
3.Intelligent radar level meter installation
- Should installa the level meter at 1/4 or 1/6 diameter;
- Bell mouth alignment level surface is sloped pls adjust the angle of flange.
D.[Company Info]
- Our Company is Top 10 Manufacture on Alibaba;
- We have about 30 years of experience in Manufacture;
- Our products have been exported to more 100 coutries and area;
- ISO,SGS,CE and more ceterficates for you reference;
- Patent technology and more than 3 years working life.
