• Model NO.：AC-110A
• Usage：For Inspection, For Checking
• Shape：Other Shape
• Customized：Support OEM
• Measurement Type：Fn, Dual-Use for Ferrous and Non-Ferrous
• Measuring Range：0~1250 Um , 0~50mil
• Resolution：0.1 Um ,1 Um
• Accuracy：1~3%N or 2.5 Um or 0.1mil
• Minimum Measurement Area：6 mm
• OEM：Yes
• Bluetooth Data Output：Optional
• USB Data Output：Optional
• Transport Package：Portable Plastic Case
• Specification：25x20x5.5cm
• Trademark：AM
• Origin：China
• HS Code：9031809090
• Production Capacity：999PCS,Month

Measuring Range0~1250 um0~50mil (other range may be specified)Resolution

0.1 um (0~99.9um)/1 um (over 100um)

Accuracy:1~3%n or 2.5 um or 0.1mil (Whichever is the greater)Minimum Measurement Area6 mm

Minimal Surface

F Type convex1.5 mm / concave 25 mmNF Type  convex 3 mm / concave 50mmOperating ConditionTemp: 0~50°C / Humidity: <95%Size120x63x25 mmPower Supply2x1.5vAAA Um-4 BatteryWeight90 g  (Not including batteries)



Product Accessories









Standard Accessories

Main Unit Wrist Ring

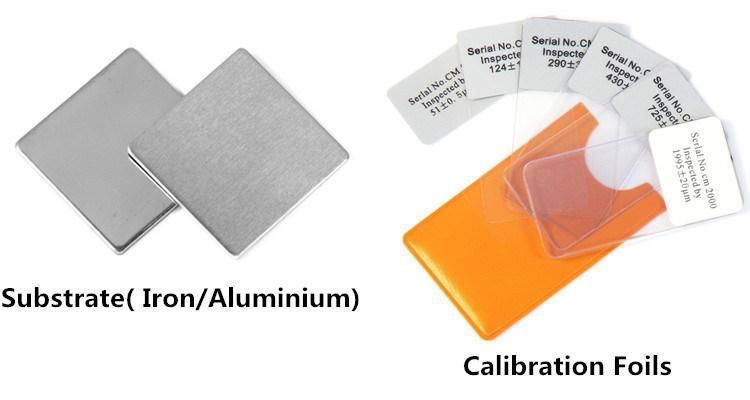

Calibration Foils

Substrate  ( Iron )

Substrate  ( Aluminium )

Carrying CaseOperation Manual

Optional Accessories



USB data output

Bluetooth data output

Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output


Bluetooth Accessories

Amittari  instruments  generally  can  be  supplied  with   Bluetooth™  data  output function ( except  few  instruments ) . As  Bluetooth™  data  output  is  included  in optional accessories, not  standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly  contact  with   the customer-service worker  if you need Bluetooth™  data  output.

Package
