• Model NO.：BST100-B21
• Measure Method：Semi-Automatic
• Shell Material：Aluminum
• Application：Conveyor Scale
• Certification：CE
• Customized：Customized
• Excitation Voltage/Max. Current：DC10V,250mA [8-350 Ohm Loadcells]
• Sampling Frequency：400Hz
• Di&Do：3*Di & 4*Do
• Ao：4-20mA * 2
• Communication：RS485 & RS232
• IP Grade：IP65
• Transport Package：Carton Box
• Specification：202*305*90mm [W*H*D]
• Trademark：SUPMETER
• Origin：China
• HS Code：8537109090
• Production Capacity：50000PCS,Year

Power SupplyAC220V±15%Display

8+4+4 Red Led Digital Tubes for English&Digit Display

Sampling Frequency400HzA/D Convert24-bitKeypad6 keys for Menu&Shortcut mode operation with key toneExcitation Voltage Output of LoadcellDC10VMax. Connection number of Loadcell8 Loadcells (350Ω)DI3 Normally Open Switch InputsDO4 Normally Open Transistor Switch OutputsAO2'PID Control' Analog Output: 4~20mA.Communication PortCOM1:Optianal RS232/RS485/RS422/Profibus-DP/Ethernet; COM2:RS232Outline Dimension202 × 302 × 90 mm (W×H×D)Net Weight Approx. 4.2kgIP GradeIP65Accuracy of Flow Control0.5%~1.0%Operatiing Temperature-25ºC~+45ºC

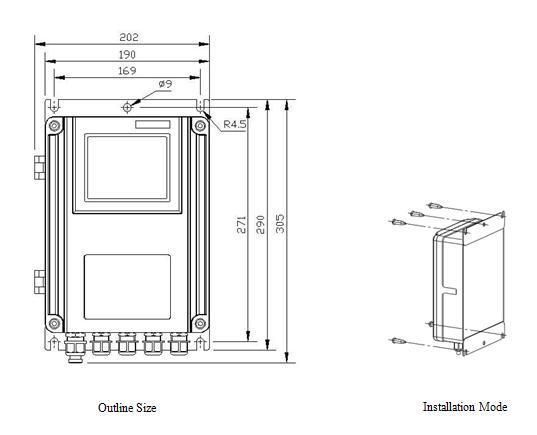

Mount Installation:





Outline Size W×H×D[mm]	Mounting Size W×H[mm]	Mounting Hole Size [mm]
202×305×90	169×271	Ф9

Package:


Delivery:

FAQ:


1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.



2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.



4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.



5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
