Precision Digital Thickness Gauge with Ceramic Spindle Tip
Shenzhen Pride Instrument Inc.- Type：Thickness Gage
- Material：Stainless Steel
- Measurement Object：Thickness
- Range：0~25mm
- Resolution：0.001mm
- Precision：0.02mm
Base Info
- Model NO.：P5060-10A,P5060-10B
- Measure Method：Manual
- Accuracy：A
- Precision Measuring Device：Precision Measuring Device
- Certification：JIS, DIN, CE, UL, RoHS, ISO
- Customized：Customized
- Throat Depth：30,120mm
- Battery：3V Cr2032
- Buttons：in,mm, Zero,on, ABS,Preset
- Remark：Software
- Measurement：Metric,Inch
- Transport Package：Packing in Cartons
- Specification：RS232 data output
- Trademark：Pride
- Origin：Shenzhen, China
- HS Code：9017300000
- Production Capacity：5000,Month
Description
Basic Info.
Model NO. P5060-10A/P5060-10B Measure Method Manual Accuracy A Precision Measuring Device Precision Measuring Device Certification JIS, DIN, CE, UL, RoHS, ISO Customized Customized Throat Depth 30/120mm Battery 3V Cr2032 Buttons in/mm, Zero/on, ABS/Preset Remark Software Measurement Metric/Inch Transport Package Packing in Cartons Specification RS232 data output Trademark Pride Origin Shenzhen, China HS Code 9017300000 Production Capacity 5000/MonthProduct Description

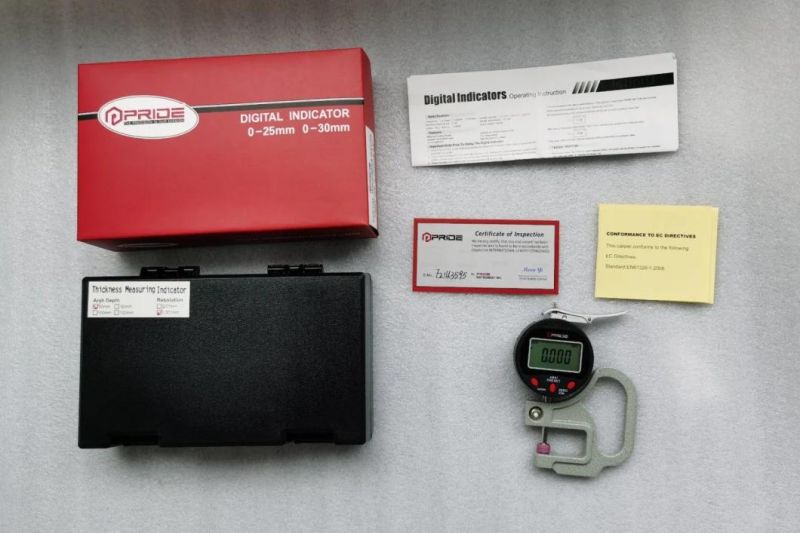

Digital Thickness Gauge
Precision digital thickness gauge allows the user to take quick, accurate measurements down to one micron. This gauge is ideal for measuring paper, card, wire or any sheet material.
Features
Ceramic spindle tip and anvil
Buttons: in/mm, zero/on, ABS/PRESET
Battery CR2032 3V, automatic power off
RS232 data output
SPC cable and software optional
| Model No | Range mm/in | Resolution mm/in | Accuracy | Throat depth mm |
| P5060-10A | 0-10mm/0-0.5" | 0.01mm/0.0005" | 20μm | 30 |
| P5060-10B | 0-10mm/0-0.5" | 0.001mm/0.00005" | 5μm | 30 |
