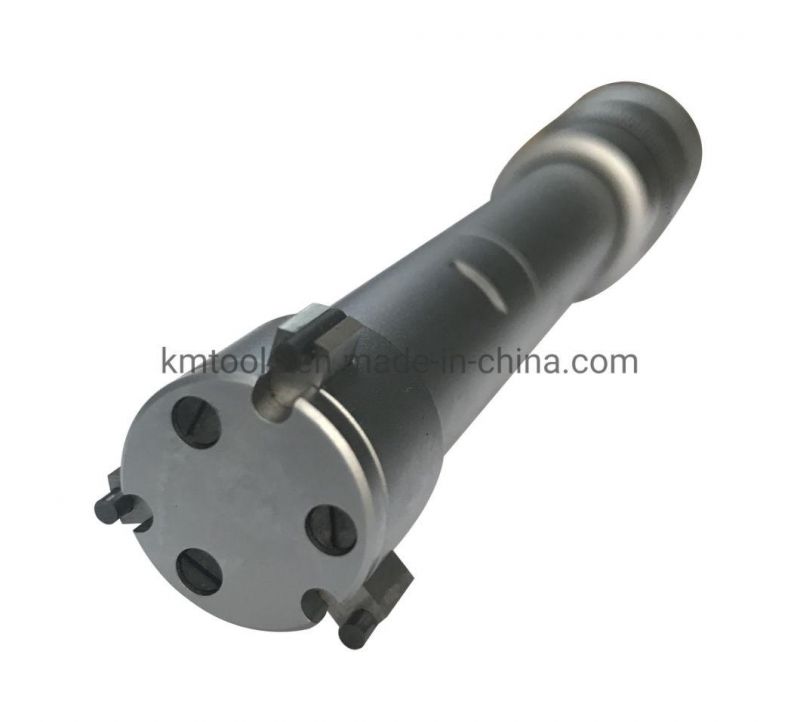

20-25mm Three Point Internal Micrometer Measuring Tools

Deko Corporation
  • Type：Micrometer
  • Measurement Object：Inside Diameter
  • Range：20-25mm
  • Resolution：0.005mm
  • Precision：0.004mm
  • Measure Method：Manual

Base Info

  • Model NO.：KM-2315-25
  • Precision Measuring Device：Precision Measuring Device
  • Certification：DIN, GB, RoHS, ISO
  • Customized：Customized
  • Measurement：Metric
  • Transport Package：Aluminium Box
  • Specification：GB Standard
  • Trademark：KM
  • Origin：Shaanxi, China
  • HS Code：9017300000
  • Production Capacity：50000pieces,Month

Description


Order No.
Measuring Range
Accuracy
Resolution
Setting Rings
L1
A
Extension Rods
 KM-2315-86-8mm±0.004mm0.001mmØ6mm54.5mm1.5mm100mmKM-2315-108-10mm±0.004mm0.001mmØ8mm54.5mm1.5mm100mmKM-2315-1210-12mm±0.004mm0.001mmØ10mm54.5mm1.5mm100mmKM-2315-1612-16mm±0.004mm0.005mmØ16mm80mm0.5mm150mmKM-2315-2016-20mm±0.004mm0.005mmØ16mm80mm0.5mm150mmKM-2315-2520-25mm±0.004mm0.005mmØ25mm90mm0.5mm150mmKM-2315-3025-30mm±0.004mm0.005mmØ25mm90mm0.5mm150mmKM-2315-4030-40mm±0.004mm0.005mmØ40mm97mm0.5mm150mmKM-2315-5040-50mm±0.005mm0.005mmØ40mm97mm0.5mm150mmKM-2315-6350-63mm±0.005mm0.005mmØ62mm114mm0.5mm150mmKM-2315-7562-75mm±0.005mm0.005mmØ62mm114mm0.5mm150mmKM-2315-8875-88mm±0.005mm0.005mmØ87mm114mm0.5mm150mmKM-2315-10087-100mm±0.005mm0.005mmØ87mm114mm0.5mm150mm Inch:
Order No.
Measuring Range
Accuracy
Resolution
Setting Rings
L1
A
Extension Rods
 KM-2315-0.35 0.275-0.35″ ±0.00016″ 0.0001″ 0.275″ 2.18″0.06″4″KM-2315-0.42″0.35-0.42″ ±0.00016″ 0.0001″ 0.35″2.18″0.06″4″KM-2315-0.5″ 0.425-0.5″ ±0.00016″ 0.0001″ 0.5″2.18″0.06″4″KM-2315-0.65″0.5-0.65″ ±0.00016″ 0.0002″ 0.65″3.2″0.02″6″KM-2315-0.8″ 0.65-0.8″ ±0.00016″ 0.0002″ 0.65″3.2″0.02″6″KM-2315-1″ 0.8-1″ ±0.00016″ 0.0002″ 1″3.6″0.02″6″KM-2315-1.2″ 1-1.2″ ±0.00016″ 0.0002″ 1″3.6″0.02″6″KM-2315-1.6″ 1.2-1.6″ ±0.00016″ 0.0002″ 1.6″3.88″0.02″6″KM-2315-2″ 1.6-2″ ±0.0002″ 0.0002″ 1.6″3.88″0.02″6″KM-2315-2.5″ 2-2.5″ ±0.0002″ 0.0002″ 2.5″4.56″0.02″6″KM-2315-3″ 2.5-3″ ±0.0002″ 0.0002″ 2.5″4.56″0.02″6″KM-2315-3.5″ 3-3.5″ ±0.0002″ 0.0002″ 3.5″4.56″0.02″6″KM-2315-4″ 3.5-4″ ±0.0002″ 0.0002″ 3.5″4.56″0.02″6″
