• Model NO.：xx-2000
• Measure Method：Automatic
• Display Type：LED
• Environment：Room Temperature
• Sensor Type：Resistance Strain
• Data Stabilization Treatment：Static Type
• Customized：Customized

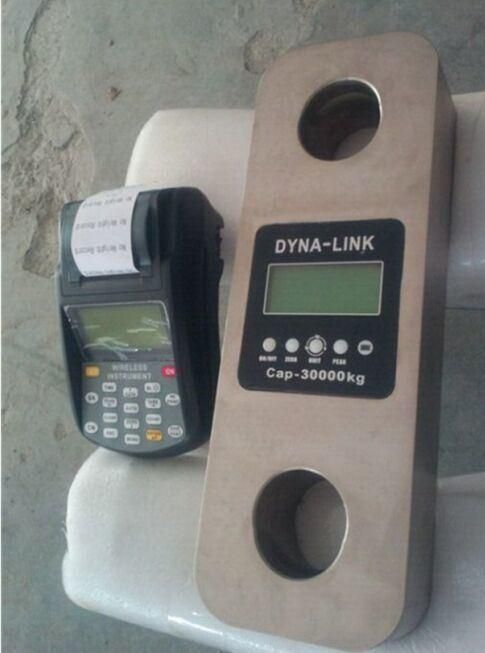

• Product Name：2t Digital Tensometer Dynamometer
• Color：Orange, Yellow, Iron
• Rated Loading：1t-50t
• Sate Overload：Max.Weight 300%
• Guarantee：One Year
• Certificate：CE,ISO,SGS
• Battery：6V, 10ah
• Transport Package：Carton Box
• Specification：depends on quantity
• Trademark：OCS
• Origin：China
• HS Code：8423829010
• Production Capacity：10000 Sets,Year

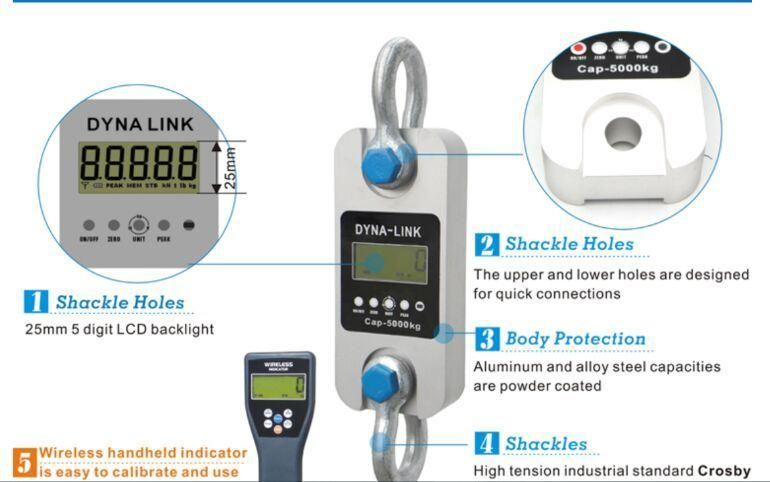

Features of Electric Dynamometer
1. Rugged Construction
2. Accuracy "0.05 % of capacity
3. All fuctions and units are clearly display on the LCD(with back- lighting).
4. Digits are 1 inch high for easy distant viewing
5. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
6. Long battery life on 3 standard "LR6(AA)"Size alkaline batteries.
7. All commonly used internationally recognized units are available; kilograms (kg) , short Tons (t) Pounds (lb), Newton and kilonewton(KN).
8. Infrared Remote control easier to calibration(With password )
9. Infrared Remote control with many functions:"ZERO","TARE","CLEAR","PEAK","ACCUMULATE","HOLD","Unit Change","Voltage check" and "Power OFF".
10.  4 local mechanical keys: "ON/OFF","ZERO","PEAK"and "Unit Change".
11. Low battery warning.
12. RF wireless palm indicator.

Body Display

25mm (1'') 5digits LCD with backlight

Indicator Display

25mm (1'') 5digits LCD with backlight

Power on zero range

20% F.S.

Manual Zero Range

4% F.S.

Tare Range

100% F.S.

Stable Time

≤5 seconds

Overload Indication

100% F.S. + 9e

Max. Safety Load

125% F.S.

Ultimate Load

400% F.S.

Battery Life

≥50 hours

Body Battery

"LR6(AA)"size alkaline batteries. 1.5Vx3

Indicator Battery

Rechargable Ni-H battery, SC 3.3Ah

Operating Temp.

- 20ºC ~ + 50ºC

Operating Humidity

≤85% RH under 20ºC

Indicator printer

FUJITSU FTP-628 MCL101#50″ high speed thermal printer

Printer paper

57x50mm

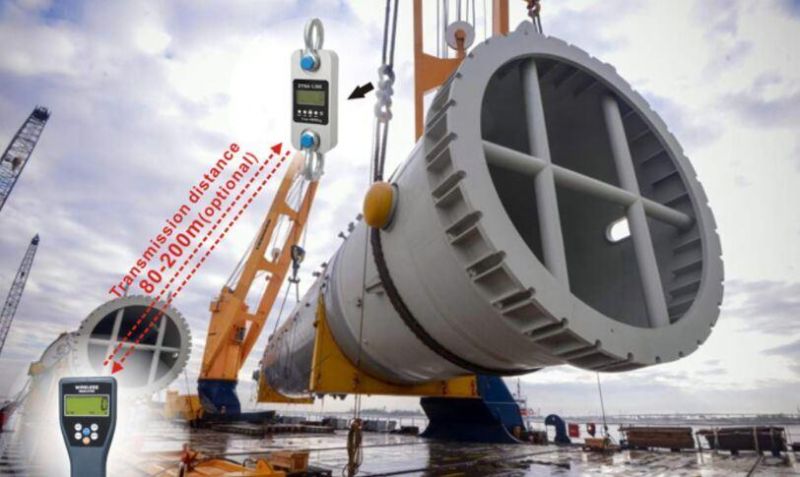

Wireless Distance

Min. 80m(default) , 200m(optional)

Wireless Frequency

2.4GHz(default),433MHz,868MHz(optional), up to 128 channels available

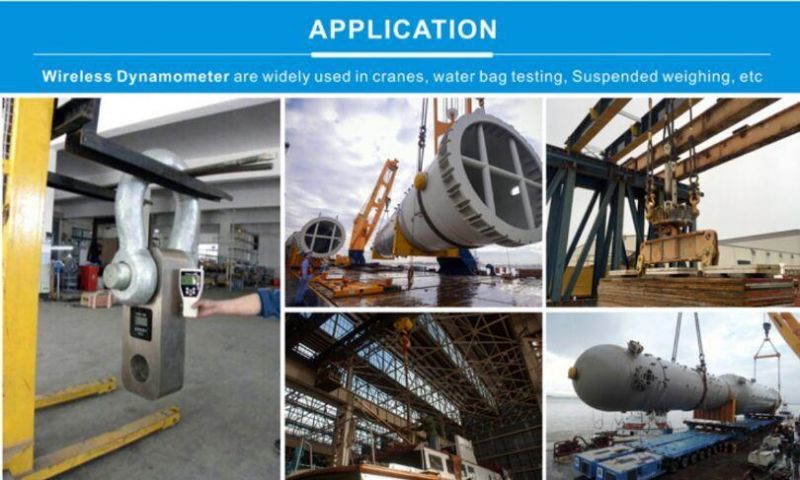

Installation cases:

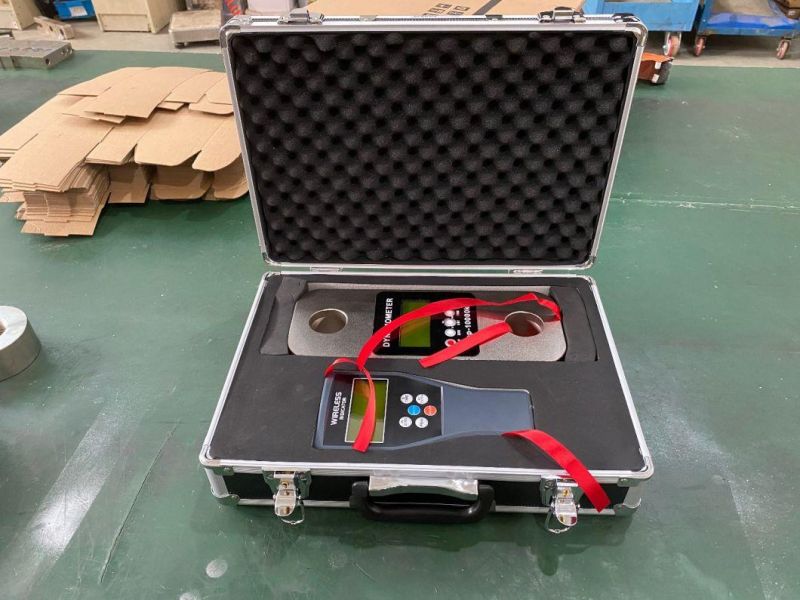

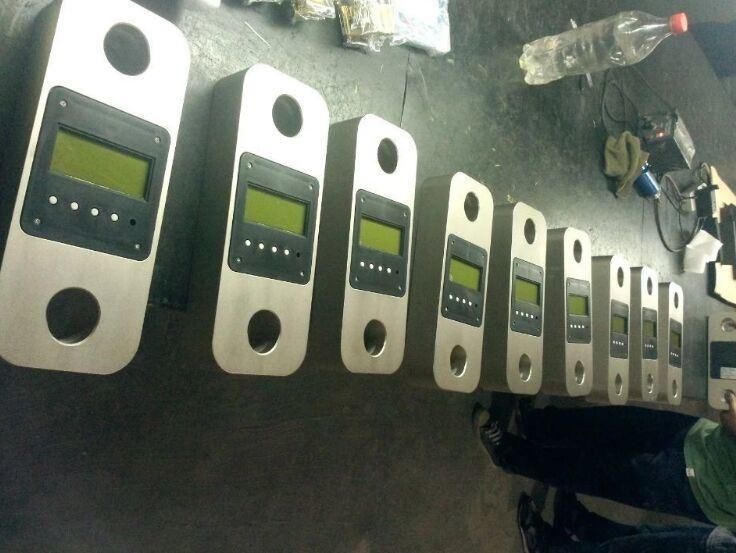

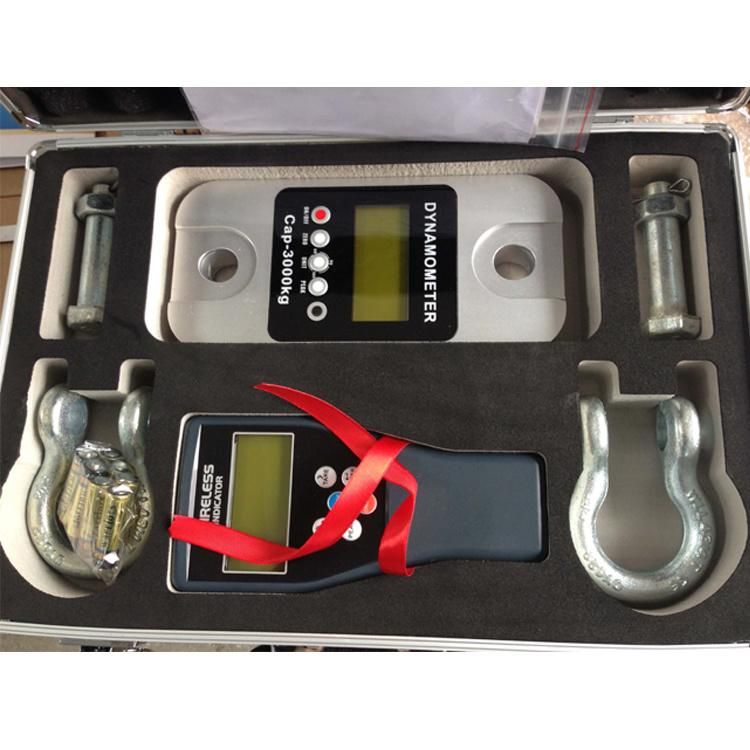

Ready shippment(all stock fast delivery)




FAQ

 1.Can you make crane scales design for us?

Yes,we have professional team with rich experience of  crane scales design by CAD software.you only need to tell us capacity and design you want to produce or send us drawing,so that we can customize according to your request.

2.Can you also offer ocs crane scales for us?

Yes,we can offer all kinds size and differet capacity of ocs serries crane scales to meet different request of customers.and we all have stocks and faste delivery.

 3.Could your engineer teach and train our worker and stay in our factory for long time?

Yes,we have very large engineer installation team,they can train and teach your worker to operate crane scales,but you should pay them salary,round tickets and room and dinner and visa charges etc.

4.How about your machine quality, we are worry about the quality?

We are more than 30 years manufacturing experience of different kinds of crane weighing machines.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard.our crane scale is running well in more than 30 countries
