Long Jaw Type V Digital Caliper
Shenzhen Pride Instrument Inc.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Vernier Caliper
- Material：Stainless Steel
- Measurement Object：Length
- Range：0～500mm
Base Info
- Model NO.：P1028-500-1
- Precision：0.01mm
- Measure Method：Manual
- Accuracy：A
- Precision Measuring Device：Precision Measuring Device
- Certification：JIS, DIN, ANS, GB, CE, UL, RoHS, ISO
- Customized：Customized
- Transport Package：Well Package
- Specification：80*50*20
- Trademark：pride
- Origin：China
- Production Capacity：10000piece,Month
Description
Basic Info.
Model NO. P1028-500-1 Precision 0.01mm Measure Method Manual Accuracy A Precision Measuring Device Precision Measuring Device Certification JIS, DIN, ANS, GB, CE, UL, RoHS, ISO Customized Customized Transport Package Well Package Specification 80*50*20 Trademark pride Origin China Production Capacity 10000piece/MonthProduct Description

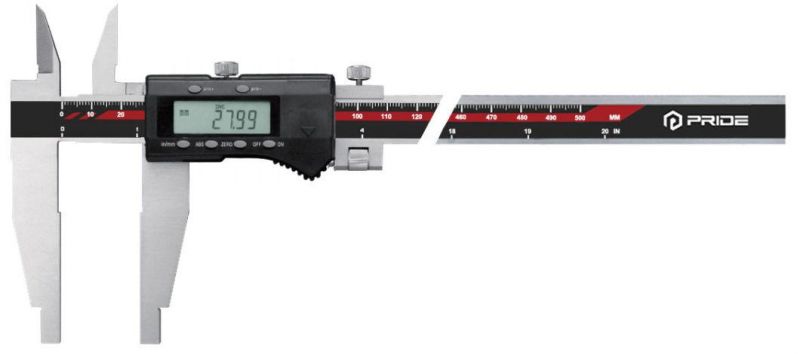

Type V Digital CaliperFEATURES:
Big LCD for easy reading.
Knife-edge measuring faces for internal measurement.
With data presetting function.
Absolute measurement and comparison measurement conversion at any position
Metric/Inch system conversion at any position.
| Model No. | Range (mm/in) | Resolution (mm/in) | Jaw length (mm) |
| P1028-300-1 | 0-300 | 0.01/0.0005" | 90 |
| P1028-300-2 | 0-300 | 0.01/0.0005" | 150 |
| P1028-400-1 | 0-400/16" | 0.01/0.0005" | 100 |
| P1028-400-2 | 0-400/16" | 0.01/0.0005" | 125 |
| P1028-400-3 | 0-400/16" | 0.01/0.0005" | 150 |
| P1028-400-4 | 0-400/16" | 0.01/0.0005" | 200 |
| P1028-500-1 | 0-500/20" | 0.01/0.0005" | 100 |
| P1028-500-2 | 0-500/20" | 0.01/0.0005" | 125 |
| P1028-500-3 | 0-500/20" | 0.01/0.0005" | 150 |
| P1028-500-4 | 0-500/20" | 0.01/0.0005" | 200 |
| P1028-600-1 | 0-600/24" | 0.01/0.0005" | 100 |
| P1028-600-2 | 0-600/24" | 0.01/0.0005" | 125 |
| P1028-600-3 | 0-600/24" | 0.01/0.0005" | 150 |
| P1028-600-4 | 0-600/24" | 0.01/0.0005" | 200 |
| P1028-800-1 | 0-800/32" | 0.01/0.0005" | 125 |
| P1028-800-2 | 0-800/32" | 0.01/0.0005" | 150 |
| P1028-800-3 | 0-800/32" | 0.01/0.0005" | 200 |
| P1028-1000-1 | 0-1000/40" | 0.01/0.0005" | 125 |
| P1028-1000-2 | 0-1000/40" | 0.01/0.0005" | 150 |
| P1028-1000-3 | 0-1000/40" | 0.01/0.0005" | 200 |
| P1028-1500-1 | 0-1500/60" | 0.01/0.0005" | 125 |
| P1028-1500-2 | 0-1500/60" | 0.01/0.0005" | 150 |
| P1028-1500-3 | 0-1500/60" | 0.01/0.0005" | 200 |
| P1028-1500-4 | 0-1500/60" | 0.01/0.0005" | 300 |
| P1028-2000-1 | 0-2000/80" | 0.01/0.0005" | 150 |
| P1028-2000-2 | 0-2000/80" | 0.01/0.0005" | 200 |
| P1028-2000-3 | 0-2000/80" | 0.01/0.0005" | 300 |
| P1028-2500-1 | 0-2500/100" | 0.01/0.0005" | 150 |
| P1028-2500-2 | 0-2500/100" | 0.01/0.0005" | 200 |
| P1028-2500-3 | 0-2500/100" | 0.01/0.0005" | 300 |
| P1028-3000-1 | 0-3000/120" | 0.01/0.0005" | 150 |
| P1028-3000-2 | 0-3000/120" | 0.01/0.0005" | 200 |
| P1028-3000-3 | 0-3000/120" | 0.01/0.0005" | 300 |
| P1028-3500-1 | 0-3500/140" | 0.01/0.0005" | 200 |
| P1028-3500-2 | 0-3500/140" | 0.01/0.0005" | 300 |
| P1028-4000-1 | 0-4000/160" | 0.01/0.0005" | 200 |
| P1028-4000-2 | 0-4000/160" | 0.01/0.0005" | 300 |
| P1028-4000-3 | 0-4000/160" | 0.01/0.0005" | 400 |
| P1028-5000-1 | 0-5000/200" | 0.01/0.0005" | 200 |
| P1028-5000-2 | 0-5000/200" | 0.01/0.0005" | 300 |
| P1028-5000-3 | 0-5000/200" | 0.01/0.0005" | 400 |
