• Model NO.：EC-777
• Precision Gauge：Precision Gauge
• Certification：ISO, RoHS, CE
• Usage：For Working, For Inspection, For Checking, Coating Measuring
• Shape：Rectangular
• Customized：Customization Accepted
• Measuring Principle：Magnetic Induction & Eddy Currents
• Probe：F & N Internal Probe
• Measuring Range：0 to 2000 Um
• Accuracy：+-(2%+1um)
• Resolution：0.1um(0~100um); 1um(More Than 100um)
• Calibration：Zero Calibration and Multi-Point Calibration
• Units：mm, mm, Mil, Inch
• Power Supply：2 PCS 1.5V AA Alkaline Batteries; 2 PCS 1.2V AA Re
• Operation Environment：Temperature: -10~+50; Humidity: 20~90%Rh (Non-Con
• Storage Environment：Temperature: -20~+50; Humidity: 20~90%Rh (Non-Con
• Alarm：User Can Set The High,Low Alarm Limit; Alarm Icon
• Chart：Curve, Bar Chart or Trend Chart
• Dimensions：113mmx53mmx24mm,80g,ABS
• Readings Memory：10*13*10 Measurement Data
• Standard Certification：Ce, RoHS, ISO 2178, 2360, GB,T 4956-2003, 4957-200
• Transport Package：Neutral Package
• Specification：146*76*32mm
• Trademark：YOWEXA,OEM
• Origin：China
• Production Capacity：20000pieces,Month

This thickness gauge can non-destructively measure the thickness of the non-conductive coating on the metal surface and the thickness of the non-ferromagnetic metal coating on the surface of ferromagnetic metals (such as iron, nickel and cobalt, etc.).

Uses include measuring the thickness of the paint or galvanized layer on the surface of iron and stainless steel, and measuring the thickness of the paint or plastic film on the surface of aluminum and copper.

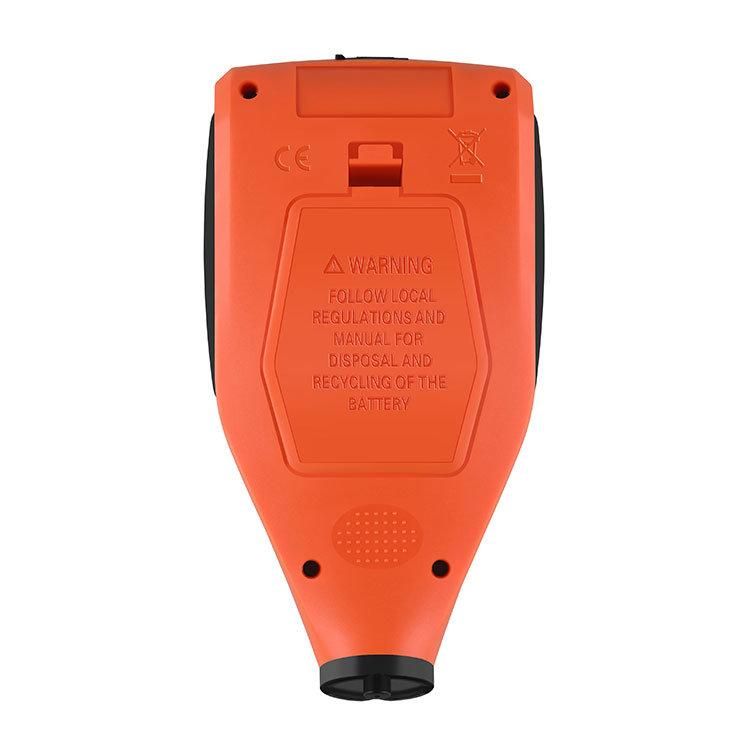

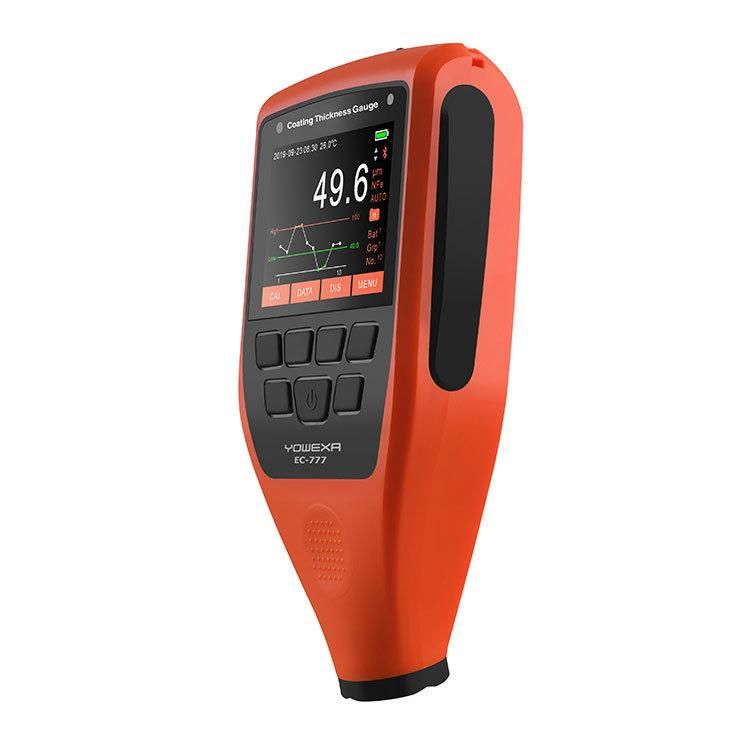

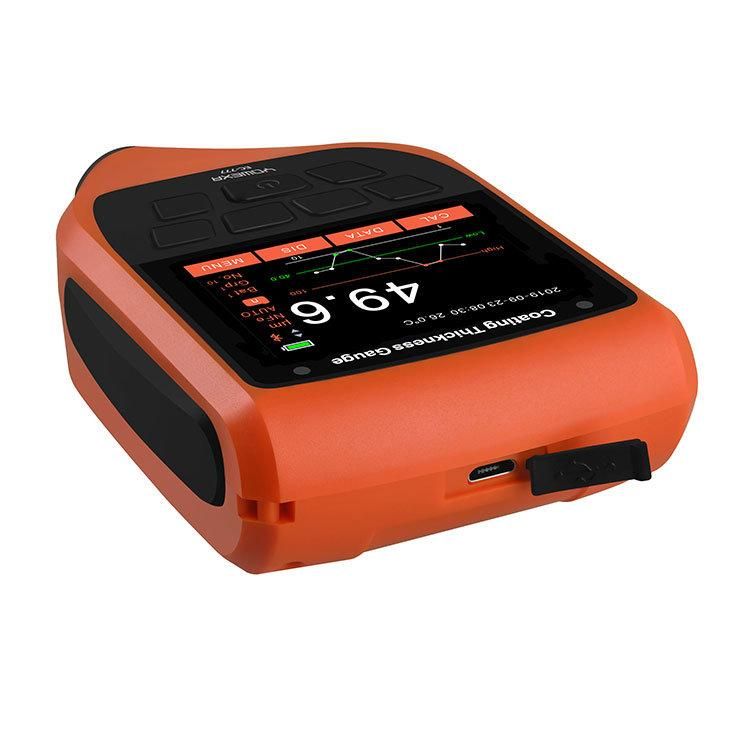

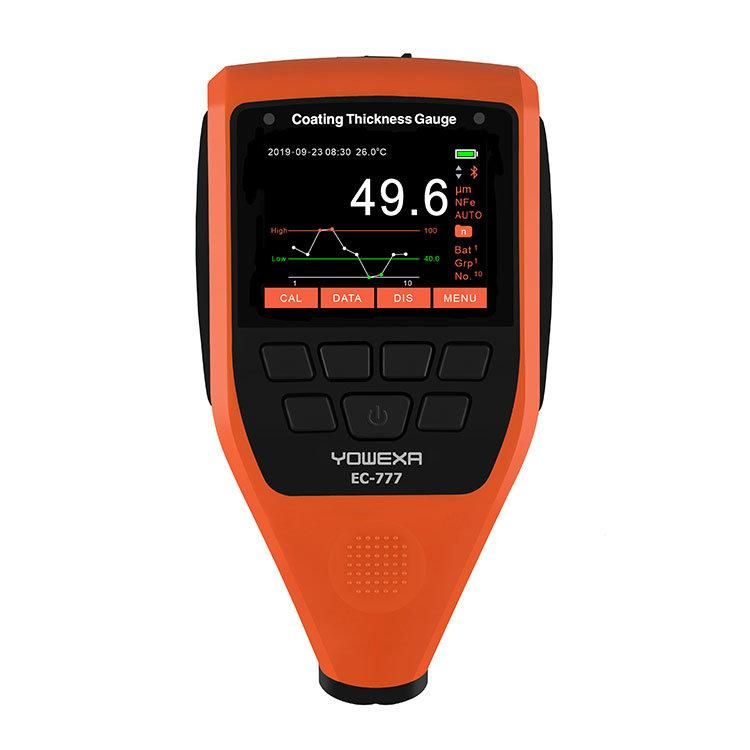

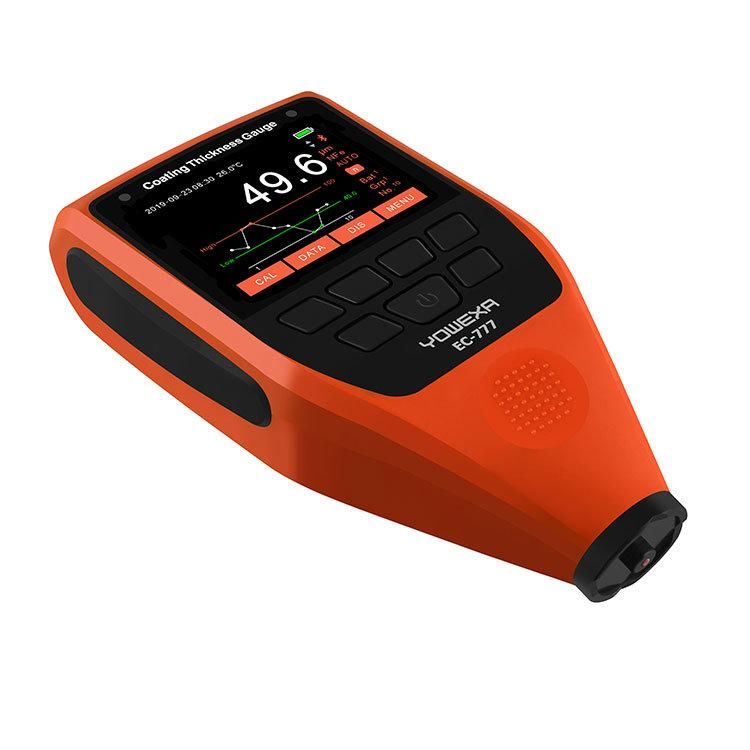

Product Display

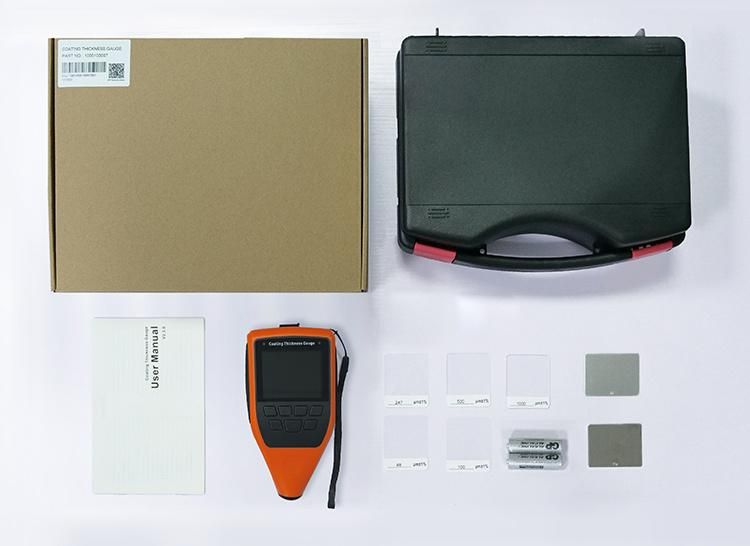

Packing List

Company Profile



FAQ

Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our clients.


Q. How long is your lead time for samples?
A. 5-7 days. For bulk orders, 10-30 days depending on the quantity.


Q. What is your terms of payment?
A. 100% for small orders. 30% in advance as deposit and 70% balance before the delivery.


Q. How can we pay?
A. You can pay via T/T, PayPal and Western Union.
