• Model NO.：CW-CS10075-L4
• Application：Food Industry
• Name：Food Package Conveyor Checkweigher Machine
• Material：SUS304
• Display Type：Big LCD Display
• Transport Package：Standard Wooden Case
• Specification：One set
• Trademark：COSO
• Origin：Dongguan, China
• HS Code：843820000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. CW-CS10075-L4 Application Food Industry Name Food Package Conveyor Checkweigher Machine Material SUS304 Display Type Big LCD Display Transport Package Standard Wooden Case Specification One set Trademark COSO Origin Dongguan, China HS Code 843820000 Production Capacity 200 Sets/Month

Product Description

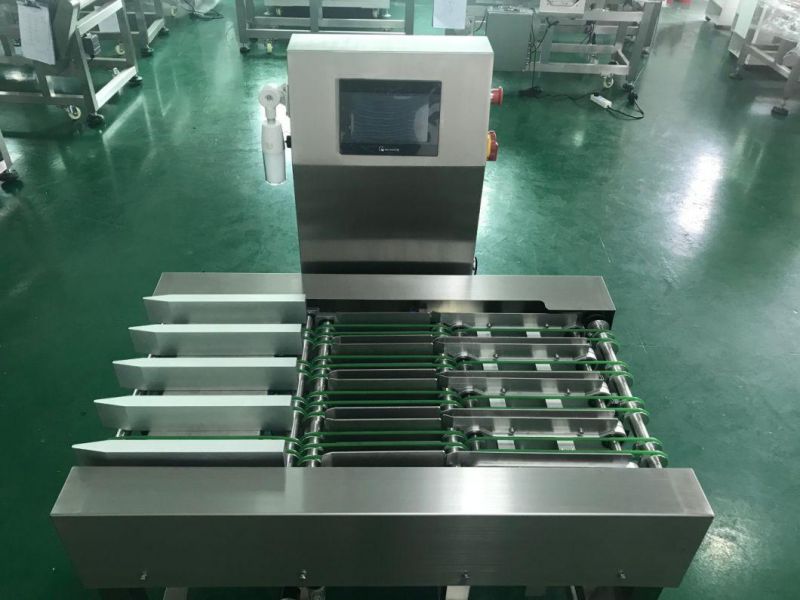

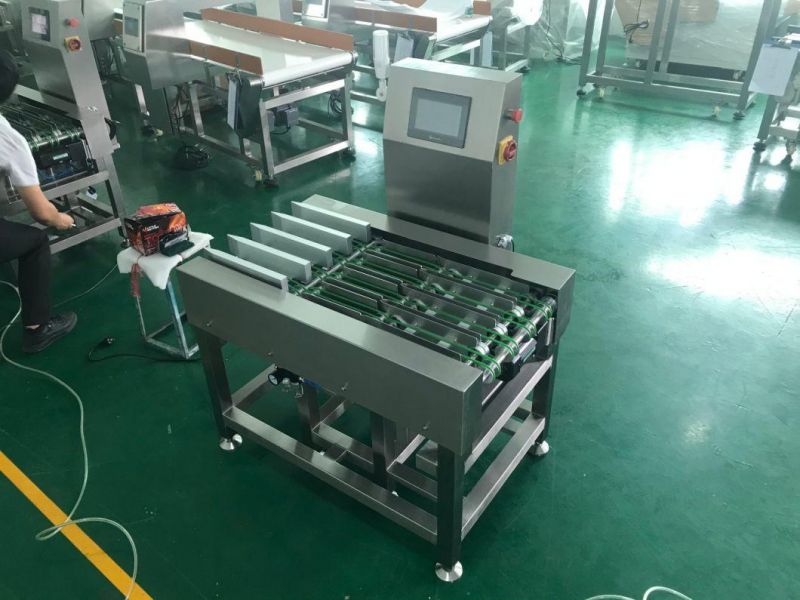

static weighing machine Checkweigher for Warm baby stickers



This product is applicable to online automatic weighing test, under weight test, missing package test, accessory missing test, etc. of small packing boxes, small bags, small single products, etc.; it is widely used in electronic, pharmaceutical, food, beverage, health products, daily chemical, light industry, agricultural and sideline industries..

 Main functions:

Strong universality: the whole machine standardized structure and standardized human-machine interface can complete the weighing of various materials;

It is easy to operate: using the color human-computer interface of wellen, it is fully intelligent and humanized design; the conveyor belt is easy to dismantle, install and maintain, and easy to clean;

Speed adjustable: variable frequency control motor is adopted, and the speed can be adjusted as required;

High speed and high precision: high precision digital sensor is adopted, with fast sampling speed and high precision;

Zero point tracking: it can be cleared manually or automatically, as well as dynamic zero point tracking;

Report function: built in report statistics, which can generate excel format, and can automatically generate a variety of real-time data reports,

The external USB interface can be inserted into the USB disk to export data in real time and hold the production status at any time; the factory parameter setting recovery function is provided, and

It can store many kinds of formula and change product specification conveniently;

Interface function: standard interface is reserved to facilitate data management and communication with PC and other intelligent devices;

Self learning: after the new product formula information is created, there is no need to set parameters. The self-learning function is used to automatically set the appropriate parameters of the equipment, and the storage is convenient for the next product switching. (2000 parameter storage entries, can be added).

Operation mode: three operation modes

a. Dynamic mode: normal pipeline mode;

b. Static mode: after the material enters the weighing platform, the weighing platform stops running and weighs to improve the accuracy, which is suitable for products with less than 20 passes per minute;

c. Energy saving mode: (optional) the energy-saving mode can be opened on the basis of mode a and mode B. set the time when no material passes the shutdown. When the equipment is idle, it will automatically stop after the time is long, and it will automatically start when there is material passing.

Fault self detection: self detection: check whether the motor, frequency converter, ad, sensor and photoelectric are normal and the cause of the fault, and guide detection of cylinder, solid-state relay and solenoid valve. It is convenient for non professionals to check and repair.

Communication of peripheral equipment: Standard RS-485 and RS-232 dual communication port output.

a. RS-485 interface is modbus, RTU standard protocol, but it can modify the write address (57600bps, 8, N, 1, slave station number is 3) and can not be modified.

b. (optional) RS-232 interface is user-defined protocol, and the instruction sending content can be set by itself. (57600bps, 8, N, 1) modifiable.

The external printer or inkjet printer and other communication equipment can also be connected with the front and rear end packaging machine and production equipment to feed back the weighing results so that it can automatically modify the formula parameters.

Chinese input method

a. Formula name can be input in Chinese, so it is more intuitive to search and switch formula.

b. With RS-232 communication port, Chinese characters can be sent to peripheral devices. (it is suitable for external printer or marking machine to print Chinese characters).






 Techincal Specification:

Power Supply	AC220V±10% 50HZ(60HZ)
Rated power	0.1KW
Single weighing range	≤200g
Weighing accuracy range	±0.1g
Minimum scale	0.01g
Conveying speed	20~60m/min
top speed	40  pcs/min
Weighing material size	≤75mm(L)*30mm(W)
Product size	996mm(L)*748mm(W)*1276mm(H)
Elimination method	Belt Fall Down
Control system	High speed A / D sampling controller
Preset product number	<99
Operation direction	Face to the screen , from left to right
External air source	0.6-1Mpa
Air pressure interface	Φ8mm
work environment	Temperature: 0 ºC ~ 40 ºC, humidity: 30% ~ 95%
Material	SUS304 Stainless steel
