• Model NO.：BST106-M10[BH]
• Measure Method：Semi-Automatic
• Shell Material：Touch Screen
• Application：Packing Machine
• Certification：CE
• Customized：Customized
• Certificate：CE
• Sampling Frequency：800Hz
• Di&Do：7*Di & 18*Do
• Ao：0-10V * 2
• Communication：RS232&RS485
• IP Grade：IP65
• Power Supply：24V
• Ethernet Communication：Available
• Transport Package：Carton Box
• Specification：226.5*163*36mm [W*H*D]
• Trademark：SUPMETER
• Origin：China
• HS Code：8537109090
• Production Capacity：50000PCS,Year

Product Description

Terminals

1. 9 Definable Normally Open Switch Inputs [DI]

2. 18 Definable Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA

3. 2 Definable Analog Signal Output [AO]: 0~10V/Max.50mA, Non-linearity: 0.05%FS

4. COM1[RS232]&COM2[RS485]

5. USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk

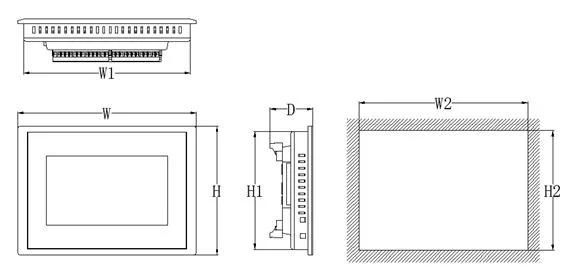

Demension

1. Outline Size: 226.5×163×36mm [W×H×D]

2. Window Size: 153.6×86.64mm [W×H]

3. Panel Cut-out Size: 215×152mm [W×H]


Install:


Package & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile:



SUPMETER is an experienced manufacturer  which is working on manufacturing weighing indicator/controller. We have professional sales team, strong technical team and 24-hous working after-sale service. Cooperating with us, you will get high quality but low price products, fast and accurate delivery, family like service.


FAQ:

1. The indicator can be programmed by customer?

The indicator is with ahrdware and software which are designed by SUPMETER. It can't be programmed by customer. 2. How long is the warranty period?The warranty period is 12 months. Any quality problem, please feedback to us, we will give the best solution 3. Can you guide how to install and calibrate?There are detail description in manual book of installation and calibration. If any questions, you can ask us too. We have strong technical group. 4. What payment terms do you support?TT transfer by USD, EUR and RMB are available. And you can pay on alibaba directly. 5. What is the lead time?Generally speaking, the goods can be sent in 3 working days after got full payment. For big quantity, we will send the goods ASAP according to the quantity.
