• Model NO.：CV-250
• Precision：(2.5+L,150)Micro
• Measure Method：Automatic
• Accuracy：A
• Precision Measuring Device：Precision Measuring Device
• Certification：CE, ISO
• Customized：Customized

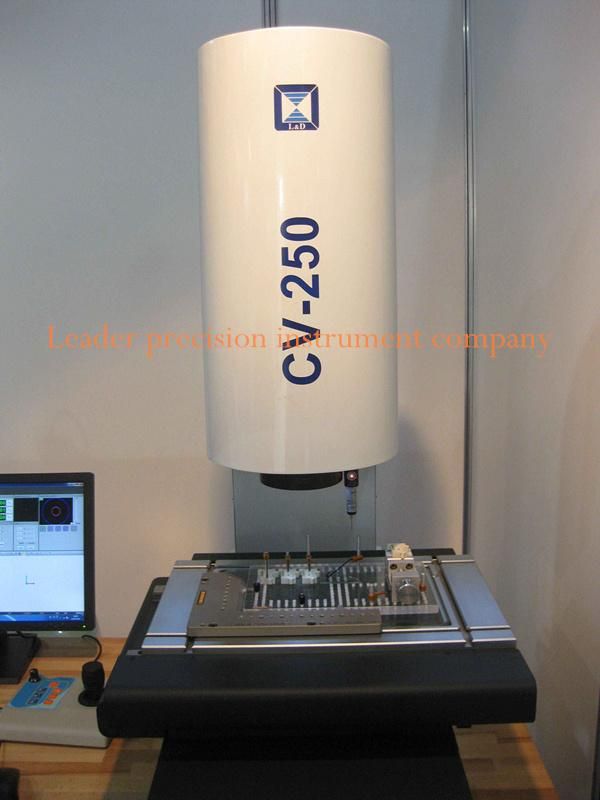

• Name：Video Inspecting Microscope
• Model：(CV-250)
• Stage Size (Mm)：450 X280
• Glass Size (Mm)：306*196
• Driving System：Servo Motor Control
• Speed：200 Mm,S
• Z-Axis Accuracy：0.05-0.03mm
• Software：Quick Image Measuring Software Qim-5008 & USB
• Zoom Lens：U. S. a Navitar Zoom Lens
• Magnification of Field Lens：0.7X-4.5X
• Transport Package：Standard Exporting Package
• Specification：SGS
• Trademark：Leader
• Origin：Guangdong
• HS Code：9031809090
• Production Capacity：100 PCS,Year

ParameterModelCV 250CV 300CV 400Stage Size (mm)450 x280500 x 300606 x 466Glass Size (mm)306*196350 x 280450 x 350Travel (mm)X axis220270370Y axis120170270Z axis150 (for focus)150 (for focus)150 (for focus)Driving SystemServo Motor ControlSpeed200 mm/sResolution of X/Y/Z-axis0.5μ mPositioning Accuracy1μ mX, Y-axis Accuracy≤ 2.5 + L/150 (μ m)Z-axis Accuracy0.05-0.03mmSoftwareQuick Image Measuring software QIM-5008 & USBVideo System? CCD Camera: SENTECH Color 1/2" CCD Camera
? Lightening System: Cold-light source Surface and Transmission illumination
? Zoom Lens: U. S. A Navitar Zoom Lens
? Magnification of field lens: 0.7X-4.5X
? Total Magnifications: 30X-190X
? Object View: 10.6mm-1.6mmWeight (KG)145170270Power SupplyAC220V/110V      50/60 Hz Standard Delivery:Quick Image Measuring software QIM-5008Sentech Color 1/2" CCD CameraNavitar Zoom Lens 0.7x-4.5xCapture CardUSB transfer BoxLED Light sourceRenishaw MCP Probe set SENTECH Color 1/2" CCD Camera Technical DataPickup Device & LensDisplay SystemTV LinesMin. IlluminationPower SourceDimension(mm)1/2" Color(CCD, C/CS-Mount)PAL4800.2Lux/F1.2DC 12V/AC24V70*57*260 Optional Accessories0.5x Navitar Additional Lens2x Navitar Additional LensCalibrations ScaleNavitar Coaxial LensNavitar Auto Zoom LensOptem Auto Zoom+ Coaxial lens
Quality System

1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.

2. All our measuring machines are with CE certification

3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.

4. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!

5. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!

After-sale Service

1. Free professional operation training

2. Warranty: 18 months instead of 12 months

3. Regularly upgrade of software is available free

4. Available lifetime technical support
