Supmeter Corrosion-Proof Belt Weigher Weight Controller

Changsha Supmeter Technological Co., Ltd.
  • After-sales Service：24 Hours After-Sale Service
  • Warranty：12 Months
  • Weighing：>300kg
  • Accuracy：0.5
  • Display Type：LCD
  • Display Digits：160*32

Base Info

  • Model NO.：BST100-D52
  • Measure Method：Semi-Automatic
  • Shell Material：Corrosion-Proof Shell
  • Application：Heavy Industrial
  • Certification：CE
  • Customized：Customized
  • Power Supply：AC220V or AC110V
  • IP Grade：IP65
  • Communication：RS232 and RS485
  • Output&Input：None
  • Transport Package：Carton Box
  • Specification：235.5*227.5*119.5mm [W*H*D]
  • Trademark：SUPMETER
  • Origin：China
  • HS Code：8537109090
  • Production Capacity：50000PCS,Year

Description

Product Application

Weighing indicator BST100-D52 is suitable for belt weigher.


Main Features

1. EMC design with high anti-jamming capability, suitable for industrial environment.

2. 32-bit ARM CPU with 72MHz & higher arithmetic speed.

3. Menu&Shortcut mode operation with key tone.

4. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.

5. Broad-range speed pulse input circuit.

6. Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

7. Auto-locking, Key-locking, Key-unlocking and Digital Setting&Calibration functions available.

8. Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.

9. 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.

10. Corrosion-proof, water-proof, dust-proof and shock-proof shell for model wall-mounting.

11. Weight Records per shift/day/month of a year can be queried and printed.

12. With the multitasking mode, the weighing process will not be interrupted by parameter setting and the other operations.
 Dimension and Install:


Dimension

Outline Size W×H×D[mm]: 235.5×227.5×119.5
Mounting Size W×H[mm]: 196×144


Installation

Install Mode: Wall Mount

Mounting Hole Size [mm]: Ф4,Ф5.5

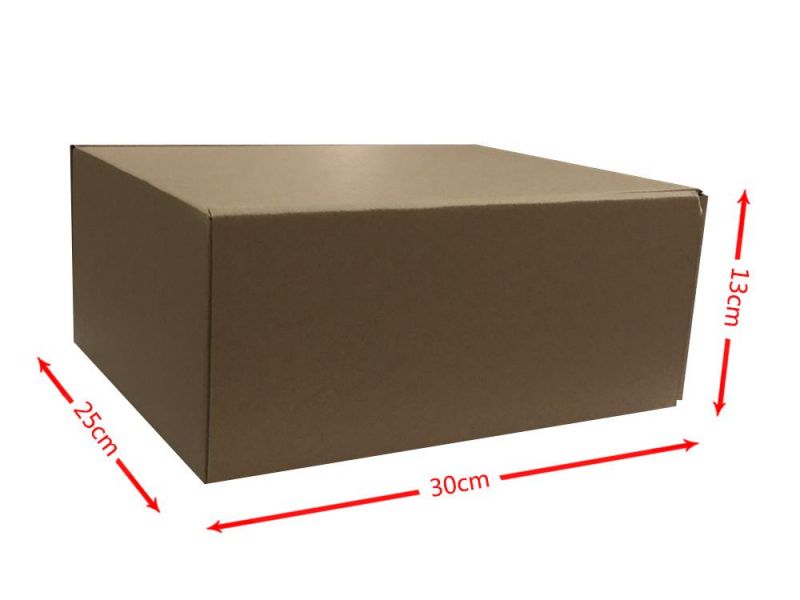

Package:

Supmeter Corrosion-Proof Belt Weigher Weight Controller
