• Model NO.：UM-1D
• Specification：14.9*7.3*3.2
• Trademark：NANBEI
• Origin：China
• HS Code：9031809090

Basic Info.

Model NO. UM-1D Specification 14.9*7.3*3.2 Trademark NANBEI Origin China HS Code 9031809090

Product Description

Brief introduction of ultrasonic thickness gauge
It can measure the thickness of metal materials, high temperature pipes, pipes, plates (steel, aluminum), plastic, iron pipe, PVC pipe, glass and other materials. Can be widely used in manufacturing, metal processing industry, chemical industry, commercial inspection and other testing areas, but also on the production equipment in a variety of pipes and pressure vessels to monitor their use in the process of monitoring the degree of corrosion after the reduction is Material protection necessary special equipment.
Features of NANBEI ultrasonic flaw detector:
UM -1 is the basic thickness meter and UM-1D offers this special function, when there is oil paint on the surface of the object, the net thickness of the material can be directly measured without necessarily remove the paint.
General thickness measurement mode measures the thickness of an object by calculating the time difference T1 of the probe sending ultrasonic pulse to the object and the probe receiving the reflection from the first bottom echo(including the coating thickness).
Through coating mode measures the thickness of an object by precisely calculating the time difference T2 between two consecutive bottom echo (excluding the coating thickness).
UM series ultrasonic thickness gauge is extremely suitable for measuring the pipes about their thickness lose after corrosion.
Each instrument has been calibrated by 34 standard test blocks before delivery to ensure the accuracy of the measurement.


Display Type	128 ×64 dot-matrix LCD screen with EL backlight
Operating Principle	P-E (pulse-echo) with dual-crystal probes
Measuring Limits of Tube(Steel)	20mm X 3.0mm (PT-08 probe) 15mm X 2.0mm (PT-06 probe) The measuring error is up to  ±  0.1mm
Measuring Error	Low limit to 10mm:  ± 0.1mm 10mm to high limit:  ±   ± (1%H+0.1) mm Note: H is the actual thickness of the testing material
Repeatability	0.1mm
Display Resolution	0.1mm, 0.001inch
Units	Inch or Millimeter
Calibration Method	Zero calibration, Two-point calibration
V-Path Correction	Automatic
Update Rate	4Hz
Material Velocity Range	1000~9999m/s (0.0394 to 0.3937in/μs)
Memory Function	5 arrays are divided to store 500 thickness values
Minimum Value Checking	Move the probe along the surface of the testing material, the gauge is able find the thinnest point automatically
Warning Function	If the measured value exceeds the pre-set thickness limit, the warning tone will start
Velocity Storage	Velocities of 5 different materials can be stored totally
Languages	English and Chinese
Communication Port	USB port or Serial RS 232 port (Optional)
Application Software	UmView Software for transmission,storage,analysis and documents editing (Optional)
Power Requirements	Two 1.5V AA alkaline batteries (Warning with low battery voltage)
Operating Time	Up to 200 hours with alkaline batteries (without backlight)
Instrument Shut-off	AUTO OFF after 5 minutes of inactivity
Operating Temperature	-10 °C to +50 °C , -20 °C in special requirements
Size	149mm X 73mm X 32mm(H X W X D)
Weight	210g including batteries



FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.


Pre-sale service

· 24hours online to ensure quick response to customers' inquiry or online message;

· Guide customers to choose the best suitable machine model;

· Offer detailed specification and competitive prices;

Contract execution

· Machine production will be arranged strictly according to the contract;

· Machine photos will be sent to you for inspection during production;

· Send customs clearance documents by DHL;

· Update latest news after delivery and prepare customs clearance;

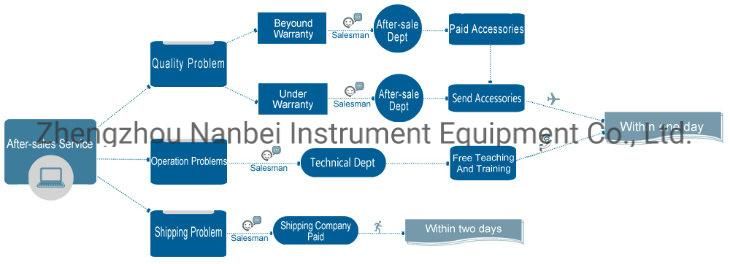

After-sale service

· 12 months warranty except for wear parts;

· Broken spare parts (except for wear parts) will be sent for free due to quality problems;

· In time response to customers technical problems;

· New products update for customers' reference

Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!

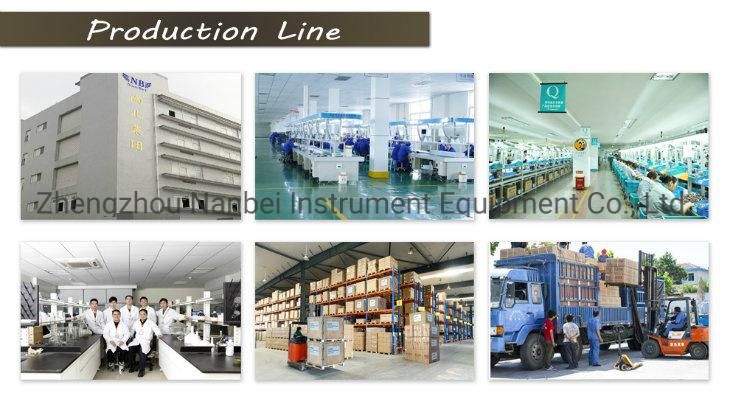

Factory Show:


Certification:
Our products have international certifications such as SGS, CE, ISO!

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
