• Model NO.：SYCW Check Weigher
• Touch Screen：Touch Screen
• Sorting Method：Air Blow,Lever,Pusher-Bar,Slide
• Name：Check Weigher
• Speed：60,Min-180,Min
• Weighing Section Size：Customized
• Weighing Platform Length：Customized
• Weighing Belt Width：Customized
• Gas Source Requirement：Dry, 0.5-0.7MPa
• Pneumatic Joint Diameter：6mm-10mm
• Temperature：-10degree-50degree
• Humidity：20%-90%, No Condensation
• Voltage：220V, 50Hz
• Transport Package：Plywood Case
• Specification：Customized
• Trademark：No Brand
• Origin：China
• Production Capacity：1000sets,Year

Basic Info.

Model NO. SYCW Check Weigher Touch Screen Touch Screen Sorting Method Air Blow/Lever/Pusher-Bar/Slide Name Check Weigher Speed 60/Min-180/Min Weighing Section Size Customized Weighing Platform Length Customized Weighing Belt Width Customized Gas Source Requirement Dry, 0.5-0.7MPa Pneumatic Joint Diameter 6mm-10mm Temperature -10degree-50degree Humidity 20%-90%, No Condensation Voltage 220V, 50Hz Transport Package Plywood Case Specification Customized Trademark No Brand Origin China Production Capacity 1000sets/Year

Product Description

Food Beverage Industries Weight Checker Checking Weigher for Bulk Material Bags Pouch
Food Beverage Industries Weight Checker Checking Weigher for Bulk Material Bags Pouch
Food Beverage Industries Weight Checker Checking Weigher for Bulk Material Bags Pouch
ΔBrief Introduction~conveyor check weigher/weight checking machine
Automatic conveyor check weigher machine is also called checking weigher machine, dynamic check weigher etc. It Is a Device For Performing Online Weighing Detection On The Finished Product By Dynamic Weight Reading.
It is widely used for bags with bulk material in food&beverage,meat packing,hardware, electronic etc. Industries.
ΔFunctions~conveyor check weigher/weight checking machine
1)Package Product Underweight Detection, Overweight Detection.
2)In-Package Missing Detection.
3)Unqualified Product Exclusion,Ensure Product Weight Meets Established Requirements.
4)Adopt advanced dynamic weighing and digital processing system to realize high-speed and stable measurement.
5)With memory function, it can expand and store a large number of product testing parameters.
6)Save Manpower, Reduce Waste, Increase Production, And Improve Product Quality And Integrity.
7)IP65 Dust-Proof And Water-Proof.

ΔParameters~conveyor check weigher/weight checking machine

Weighing Range	10g-30kg
Accuracy	±2g-5g
Speed	60/min-180/min
Belt Speed	5m-100m/min
Weighing section size	Can be customized
Weighing platform length	Can be customized
Weighing belt width	Can be customized
Voltage	220V±20%,50Hz
Gas source requirement	Dry,0.5-0.7MPa
Pneumatic joint diameter	Φ6mm-φ10mm
Temperature	-10ºC-50ºC
Humidity	20%-90%,no condensation
Reject method	Air blow,lever,pusher-bar,slide

ΔFeatures~conveyor check weigher/weight checking machine
1)Large Weighing Platform, Wide Application Range, High Precision And Fast Speed.
2)The Machine Body Is Made Of SUS 304 And Meets GMP And HACCP Regulations. It Can Adapt To Dry And Humid Environments.
3)Fully Automatic Detection, Eliminating Human Error.
4)Compatible With Most Packaging Machine Outputs And Seamlessly Integrated With Production Lines.
5)The Mechanical Structure Is Simple, The Equipment Maintenance Is Convenient And Quick, And It Is Easy To Clean.
6)Large Size Touch Screen For Easy Operation, Intuitive Display And Easy Operation.
7)Multiple Languages Can Be Set.
8)The Belt Is Made Of Food Grade Material, Safe And Hygienic, Wear Resistant And Impact Resistant.

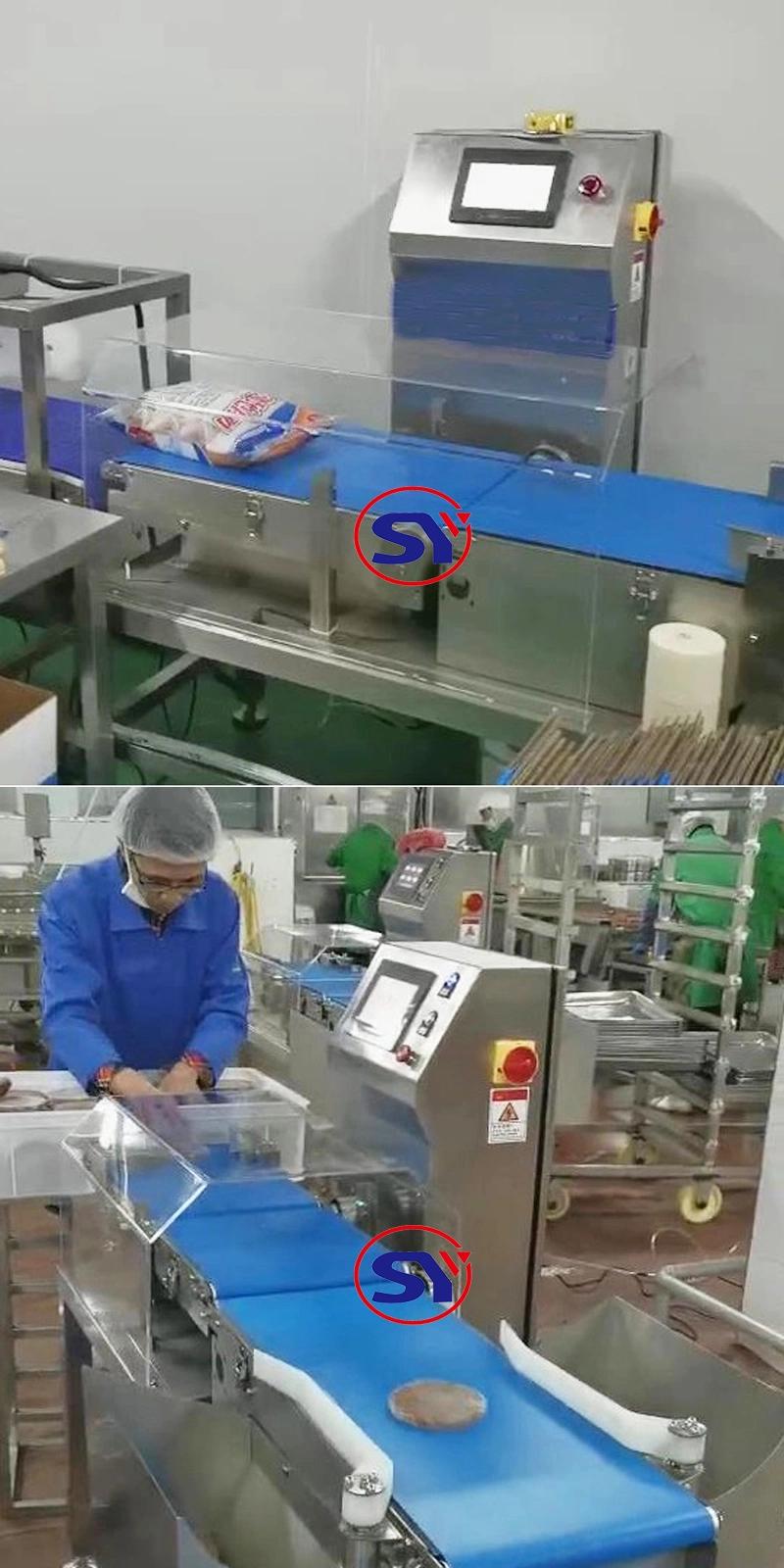

ΔMore photos of conveyor check weigher/weight checking machine

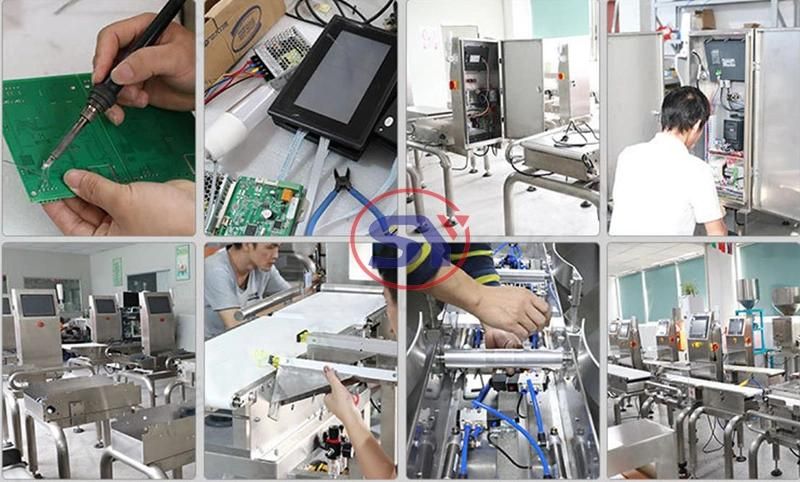

Machine Assemble at our factory:
ΔPacking&shipment
--Generally packed in Plywood case.
--Shipment within 10~20 working days after the advance/full payment.
--We provide timely delivery. More importantly, if you don't know how to install machines, our professional technical staff will assist you.
ΔOur Waranty:
Our warranty is 12 months from the machine leaving factory.

ΔOur service
Strong Engineers & Technician Team.
Professional After-Sales Team, 24h*7days.
Professional International Sales Team Can Help You To Buy The Machines Easily.
And No Other Troubles On The Delivery, Customer Clearance & Also Reduce The Tax Of It.
OEM Service: We Can Manufacture The Machines Totally As Your Need. Also Support The OEM Service.

If you are interested in our conveyor check weigher/weight checking machine, just contact Rita without hesitation.
If you are interested in our conveyor check weigher/weight checking machine, just contact Rita without hesitation.
If you are interested in our conveyor check weigher/weight checking machine, just contact Rita without hesitation.
