• Model NO.：CQ-XP500
• Material：SUS304 Stainless Steel
• Power：60W
• Power Supply：220V
• Check Speed：90piece,Min
• Rated Power：0.4kw
• Single Weighing Range：40kgs
• Weighing Accuracy Range：5g-30g
• Convey Speed：20-35m,Min
• Maximum Speed：30 PCS,Min
• Reject Method：Pusher
• Preset Product Number：2000 PCS
• Control System：High-Speed a,D Sampling Controller
• Body Material：SUS304
• Transport Package：Wooden Case
• Specification：2135X1046X1060mm
• Trademark：chaoqiang
• Origin：Guangdong
• HS Code：8423209000
• Production Capacity：100sets,Month

Basic Info.

Model NO. CQ-XP500 Material SUS304 Stainless Steel Power 60W Power Supply 220V Check Speed 90piece/Min Rated Power 0.4kw Single Weighing Range 40kgs Weighing Accuracy Range 5g-30g Convey Speed 20-35m/Min Maximum Speed 30 PCS/Min Reject Method Pusher Preset Product Number 2000 PCS Control System High-Speed a/D Sampling Controller Body Material SUS304 Transport Package Wooden Case Specification 2135X1046X1060mm Trademark chaoqiang Origin Guangdong HS Code 8423209000 Production Capacity 100sets/Month

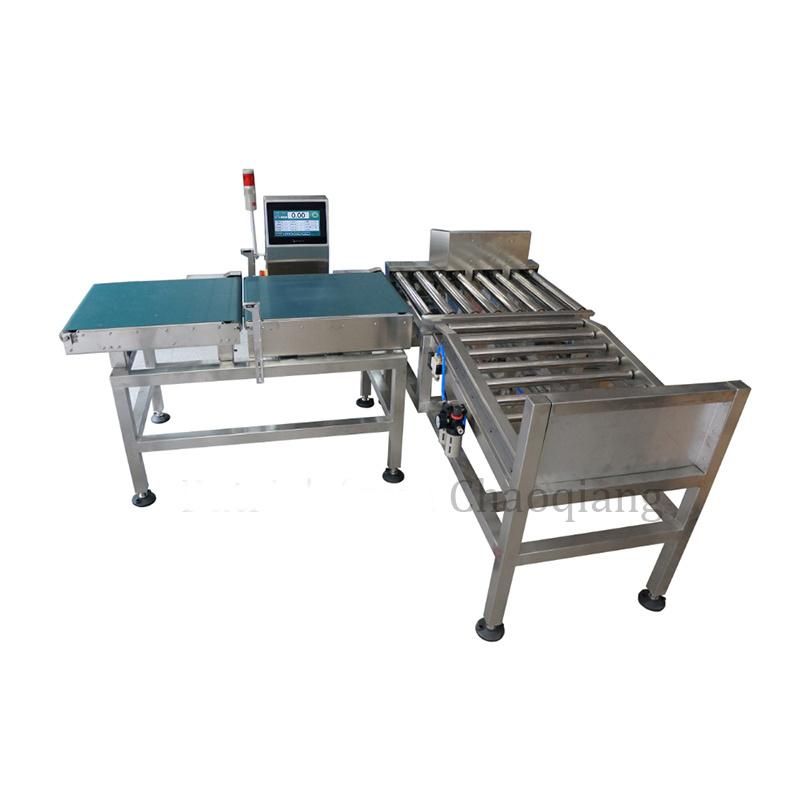

Product Description

Technical Data Sheet

Technical Data Sheet
Model	CQ-XP500
Power supply	AC220V±10% 50HZ(60HZ)
rated power	0.4KW
Single weighing range	≤40kg
Weighing accuracy range	±5g~±30g
Minimum scale	1g
Convey speed	20~35m/min
Maximum speed	30  pcs/min
Weighed product length	≤650mm(L)*490mm(W)
Scale conveyor belt size	900mm(L)*500mm(W)
Machine size	1888mm(L)*935mm(W)*1060mm(H)
Reject method	Pusher
Control system	High-speed A/D sampling controller
Preset product number	2000 pcs
Operation direction	Facing the machine, from left to right
External air source	0.6-1Mpa
Air pressure interface	Φ8mm
working environment	Temperature: 0ºC~40ºC, humidity: 30%~95%
Body material	SUS304
Model	CQ-XP500
Power supply	AC220V±10% 50HZ(60HZ)
rated power	0.4KW
Single weighing range	≤40kg
Weighing accuracy range	±5g~±30g
Minimum scale	1g
Convey speed	20~35m/min
Maximum speed	30  pcs/min
Weighed product length	≤650mm(L)*490mm(W)
Scale conveyor belt size	900mm(L)*500mm(W)
Machine size	1888mm(L)*935mm(W)*1060mm(H)
Reject method	Pusher
Control system	High-speed A/D sampling controller
Preset product number	2000 pcs
Operation direction	Facing the machine, from left to right
External air source	0.6-1Mpa
Air pressure interface	Φ8mm
working environment	Temperature: 0ºC~40ºC, humidity: 30%~95%
Body material	SUS304

FAQ:
1.How long of the warranty period?
Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
2.How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
3.What is your terms of payment?
T/T,L/C,Western Union, etcA:T/T 30% as deposit,and 70% before delivery.We'll show you the?photos?of the products and packages before you paythebalance.or 100% L/C at sight .
4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
