• Model NO.：101B
• Scale Structure：Steel I Beam
• Operating Environment：Non Explosion Proof Loadometer
• Lightning Protection：With Lightning Protection
• Capacity：2,5 Ton
• Power：100-240V (50,60Hz) Adaptor
• Accuracy：0.1-0.5%F.S.-Static 1.0%F.S(5km,H)-Dynamic
• Excitation Voltage：6V DC
• Output：RS232 USB(Xm4 Optional)
• Rechargeable Battery：6V10ah
• Non-Lineariry：0.2%F.S.
• Repeatability：0.05% F.S.
• Transport Package：Bulk
• Specification：8kg
• Trademark：HIWEIGH
• Origin：China
• HS Code：8423899010
• Production Capacity：20000PCS,Year

Basic Info.

Model NO. 101B Scale Structure Steel I Beam Operating Environment Non Explosion Proof Loadometer Lightning Protection With Lightning Protection Capacity 2/5 Ton Power 100-240V (50/60Hz) Adaptor Accuracy 0.1-0.5%F.S.-Static 1.0%F.S(5km/H)-Dynamic Excitation Voltage 6V DC Output RS232 USB(Xm4 Optional) Rechargeable Battery 6V10ah Non-Lineariry 0.2%F.S. Repeatability 0.05% F.S. Transport Package Bulk Specification 8kg Trademark HIWEIGH Origin China HS Code 8423899010 Production Capacity 20000PCS/Year

Product Description



Aviation Aluminum Alloy
7075 Heavy duty aluminum alloy platform
Big capacity up to 10Ton/pair

IP66 Protection
Performs well in harsh environment

Easy Lock Ramps
Double aluminum ramps steps

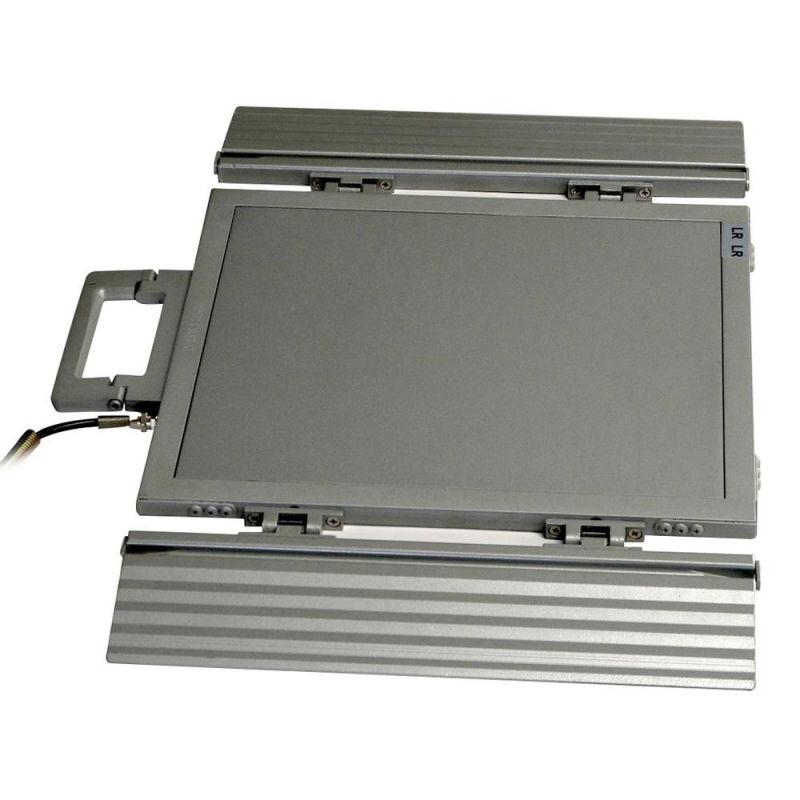

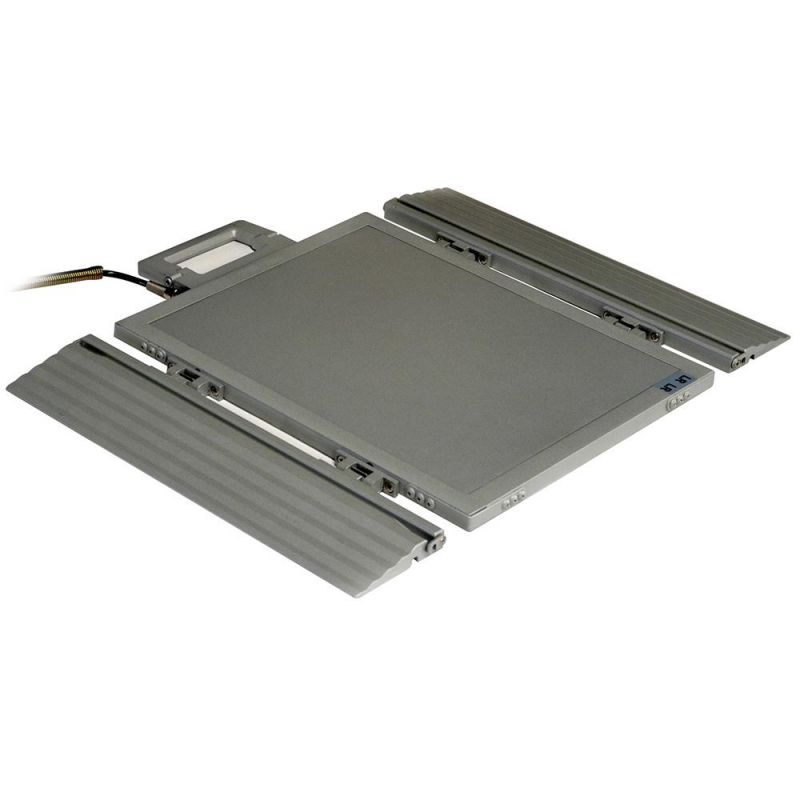

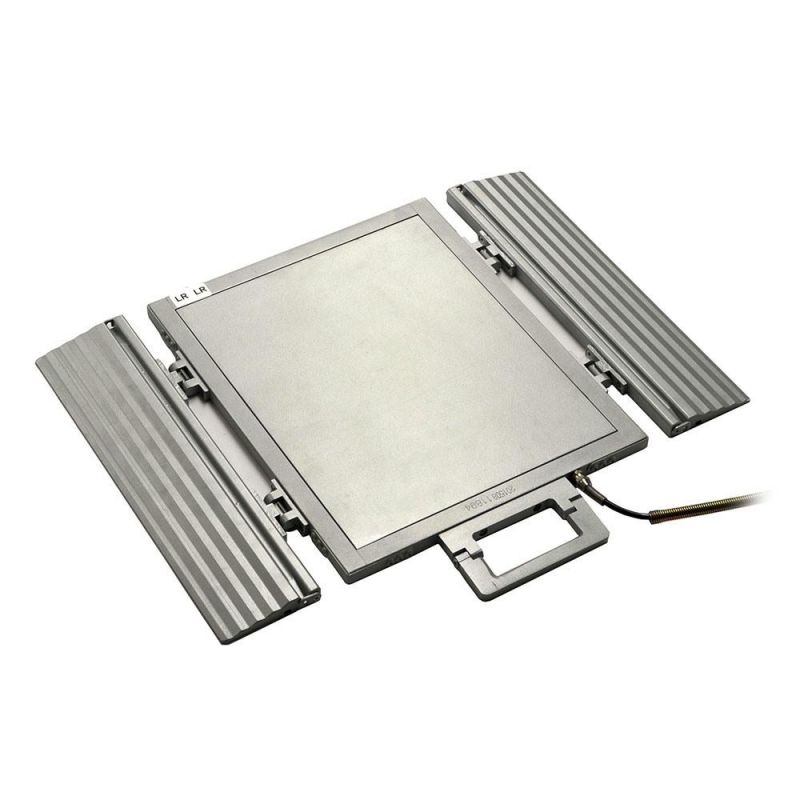

PLATFORM
Compact design 7075 aluminum alloy. Capacity up to 5Ton/each. IP66 water-resistant protection. Metal hose protected cable. With handle for easy movement.

XM4 INDICATOR
5xLCD display: Weight/percentage of each wheel. Weight/percentage of each axle. Weight/percentage of cross axle. Target weight calculation of each wheel. Kg/lb unit. Built-in thermal printer.

XM6 INDICATOR
8" Touch Screen. 4 Cores ARM CPU. 2GB memory with 4GB hard disk. Rugged ABS suitcase. Unlimited weighing records. Base on Windows CE 6.0* system. RS232, USB 2.0 output. Display of weight of each axle. Display of total truck weight. Excel, text or Database file output. High speed thermal Printer.

Part No	410090	410091
Models	101B2	101B5
Capacity/pair	2Ton	5Ton
Weighing Zone	289 x 359mm	289 x 359mm
Weigh	8kg	8kg

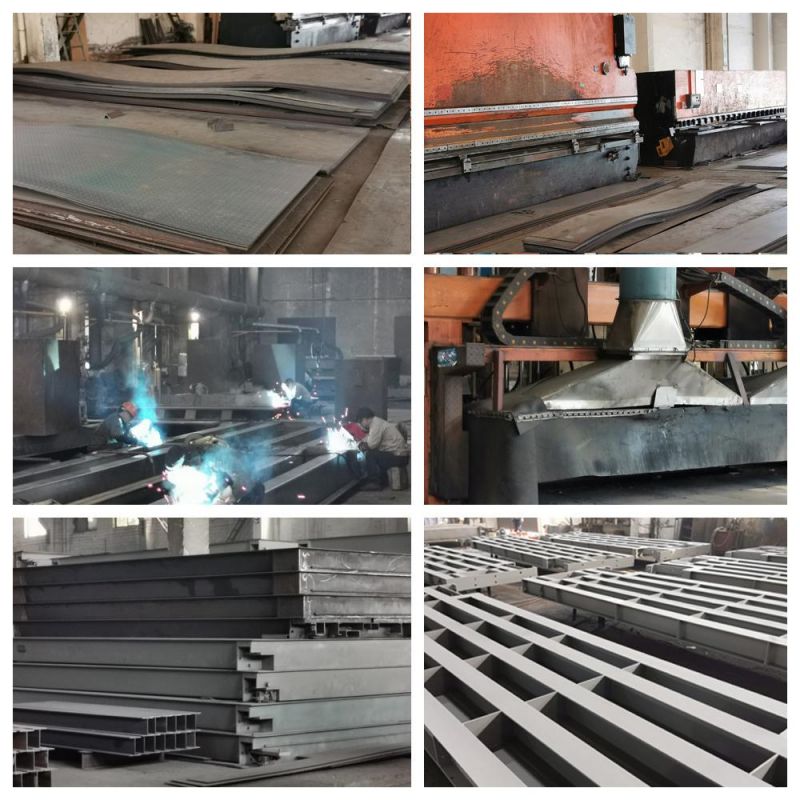

Process Flow


Our Services

1. Your inquiry and email will be replied within 6hours.



2. If you need to develop product with your own specification, we have professional engineers to work it out.



3. Never leave customer alone, solve problems with customer together, never hide when we make mistakes.



4. Always honest, never lie to customer, never declare anything we don't have.



5. Customer first, quality first, service first!

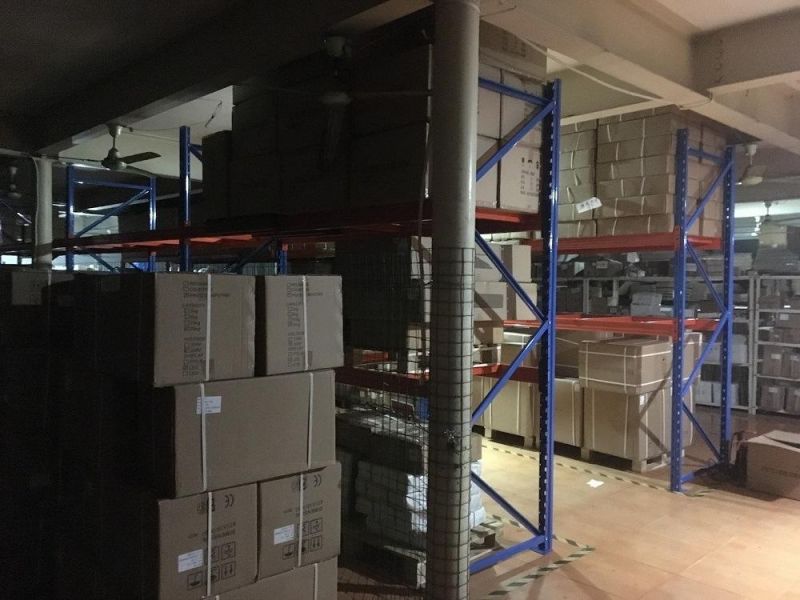

Packing & Shipping

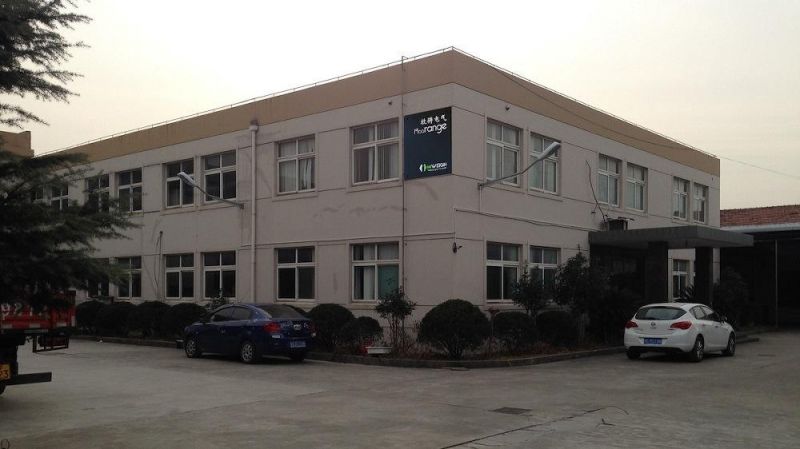

Company Information





FAQ

Q: Do your company accept OEM and ODM orders?

A: Yes, we have strong ability to produce OEM orders and also all our engineers with more than 15 years experiences in weighing technology, then we welcome all ODM cooperation, too.



Q: What's your quality control system and the warranty?

A: We don't make the low quality products, most of our weighing products with CE, OIML, NTEP and other certificates, all test weights available with ISO17025 certificates also. For the warranty, just an example of our weighbridges, only our company can give10 years warranty for the platforms (TSB model)!



Q: Your prices look higher than other companies? Our market is very competitive.

A: As above point, we don't make the low quality products and then we keep all best components for our scales, example, no other scale companies are use RN41 Bluetooth module and most of our LCD display of FSTN materials. But, we are still produce 1-2 models of each type of our products in best price range, to assure our partner can get good competition in their market.



Q: If the products get problem, how's the solution and technical support?

A: If only few units, the warranty term is no doubt for replacement immediately, if for more units, we will give the 7x24 technical support to solve it in time, also we do accept return of goods, our slogan is that THINK FOR CUSTOMERS!
