Ultrasonic Thickness Measurement Gauge for Composite Material
NANBEI INSTRUMENT LIMITED- After-sales Service:Free Spare Part, Online Support, Video Technical S
- Warranty:1 Year
- Type:Thickness Gauge
- Measurement Object:Length
- Test Methods:Pulse Echo Method
- Material:Plastic
Base Info
- Model NO.:NB-UM-2
- Precision Gauge:Precision Gauge
- Certification:ISO, CE
- Shape:Rectangular
- Customized:Non-Customized
- Display Type:LCD Screen with EL Backlight
- Operating Principle:P-E (Pulse-Echo) , E-E (Echo-Echo)
- Measuring Range:Std. Mode: 0.8mm to 300mm
- Repeatability:0.05mm
- Display Resolution:0.01mm (0.001in)
- Units:Inch or Millimeter
- Calibration Method:Zero Calibration,Two-Point Calibration
- V-Path Correction:Automatic
- Update Rate:4Hz
- Material Velocity Range:1000 ~ 9999 M,S (0.0394 to 0.3937 in,Us)
- Memory Function:5 Arrays Are Divided to Store 500 Thickness Values
- Checking:Thinnest Point Automatically.
- Velocity Storage:Velocities of 5 Different Materials Can Be Stored
- Languages:English and Chinese
- Communication Port:USB Port or Serial RS 232c Port (Optional)
- Transport Package:Carton Case
- Specification:multi-mode ultrasonic thickness gauge
- Trademark:NANBEI
- Origin:Zhengzhou, China
- HS Code:901780000
- Production Capacity:1000set,Sets a Month
Description
Product Description

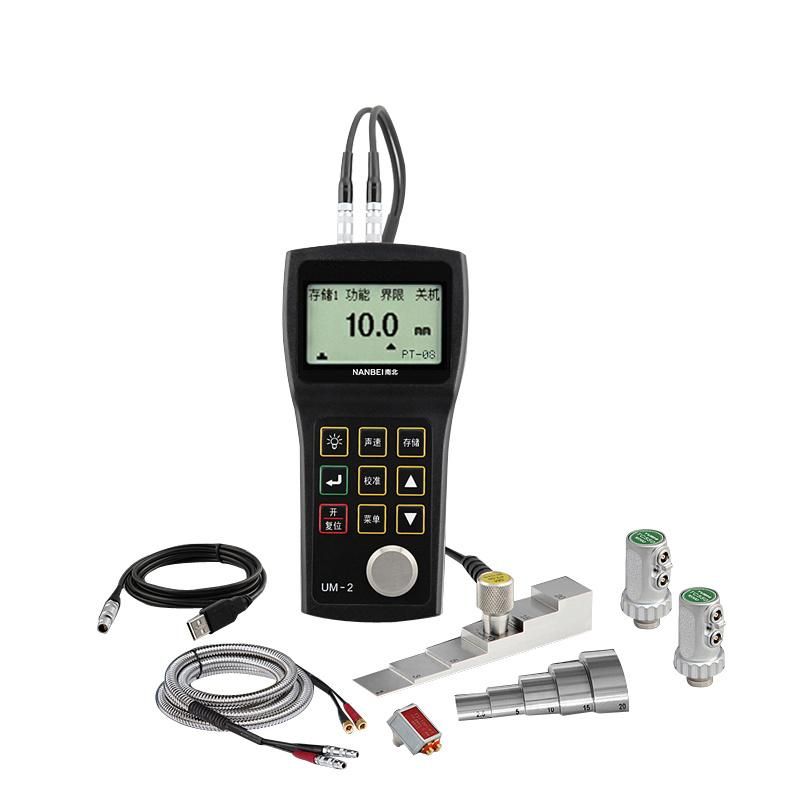

NBUM-2 series ultrasonic thickness gauge is a high accuracy, hand-held thickness meter of high stability.Domestically, we are the first to develop the ultrasonic thickness meters which can penetrate the coating in 2006.
The NBUM-2D offers through-coating thickness measuring capability. It measures the thickness of an object by precisely calculating the times of the probe sending ultrasonic pulse to the object and passing through the object until the probe receiving the reflection from the boundary.
It uses the most advanced microprocessor and ultrasonic technology to offer users many outstanding features. It features zero drift,reliable and stable reading,and no need of zero calibration.You can now test painted objects without needing to remove the paint or make corrections for the paint thickness.
Details Images
Product ParametersRelated Product
Packaging & ShippingCompany Profile
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
- Warranty : 1 year
- We supply free part for quality problem in warranty
- Long life technical support and service
