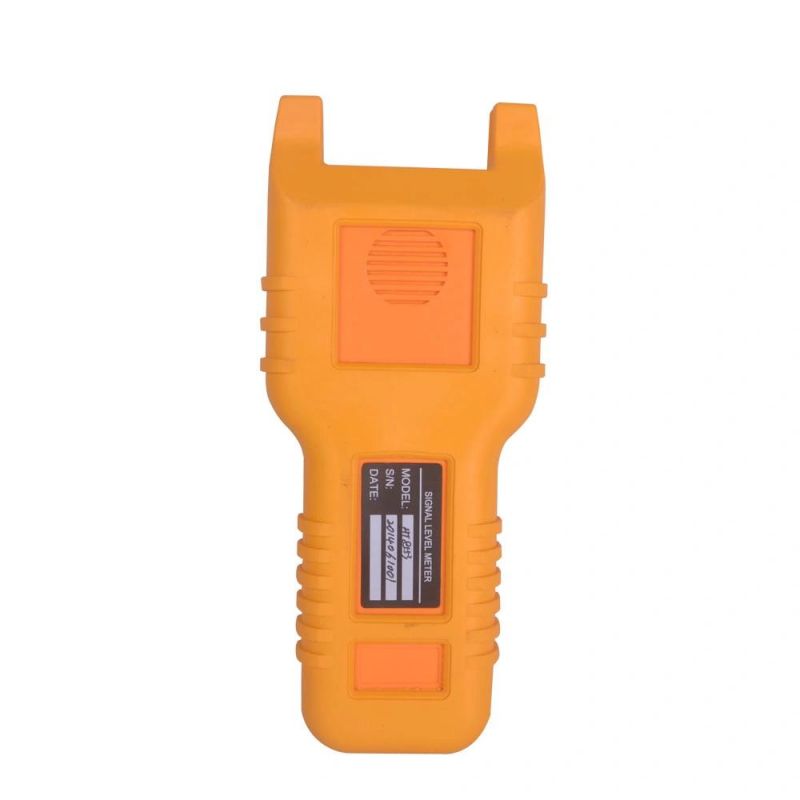

Digital Analog Signal Level Meter

Hangzhou Softel Optic Co., Ltd.
  • Type：Dial Indicator
  • Material：Plastic
  • Measurement Object：Depth
  • Range：0～500mm
  • Resolution：0.01mm
  • Precision：0.015mm

Base Info

  • Model NO.：HT8553
  • Measure Method：Manual
  • Accuracy：B
  • Precision Measuring Device：Not Precision Measuring Device
  • Certification：CE
  • Customized：Non-Customized
  • Item：Signal Level Meter
  • Modulation：DVB-C,Itu-T
  • Support：64qam,256qam(Option)
  • MOQ：1 Piece
  • Delivery Time：Around 10 Days
  • OEM ODM：Acceptable
  • Warranty：12 Months

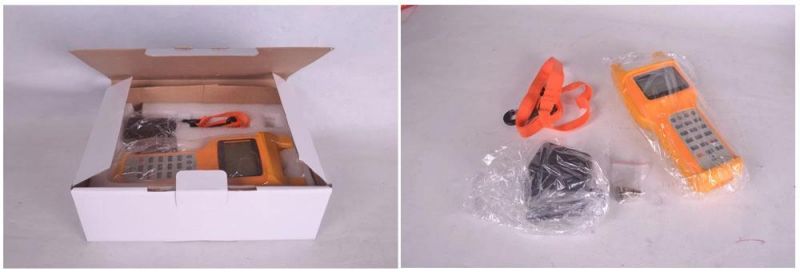

  • Transport Package：Standard Carton
  • Specification：ROHS
  • Trademark：SOFTEL OEM
  • Origin：Zhejiang, China
  • HS Code：90318010
  • Production Capacity：1000 PCS,Month

Description

Features

Specifications

Frequency Range

5/46MHz~870MHz

Frequency Resolution

10KHz

Frequency Accuracy

±10x10-6

Average Power

35dBμV~115dBμV

Power Resolution

0.1dB

Power Accuracy

±2.0dB(under room temperature)

Input impedance

75Ω

MER

22~39dB

MER Accuracy

±2dB

EVM

√

BER

1E-4~1E-8(after RS)

Modulation

16/32/64/128/256QAM

Constellation Diagram

√
