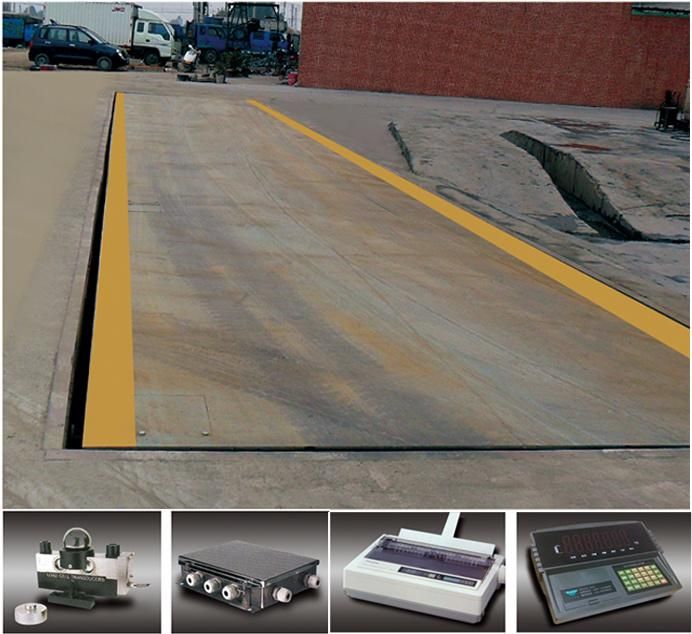

80t Truck Weight Scale for Turnpike

Quanzhou Wanggong Electronic Scale Co., Ltd.
  • Structure：Electronic Scale
  • Display Type：LED
  • Sensor：Digital Scale
  • Installation：Weighbridge
  • Automation：Automation
  • The Weighing Method：Static Truck Scale

Base Info

  • Model NO.：SCS-100
  • Scale Structure：U-Type Steel
  • Operating Environment：Explosion-proof Loadometer
  • Lightning Protection：With Lightning Protection
  • Product Name：80t Truck Weight Scale for Turnpike
  • Max Weighing：100t
  • Platform Size：3X18m
  • Division：40kgs
  • Unit of Measure：Kg or Lbs
  • Accuracy：OIML III
  • Plate Thickness：10mm
  • Load Cell：10PCS
  • Main Beam：7PCS
  • Weight of Scale：6.2 Tonnes
  • Transport Package：Standard
  • Specification：3x18m
  • Trademark：OEM
  • Origin：China
  • HS Code：8423891000
  • Production Capacity：3000PC,Year

Description

Load cell interfaceRS485,Max transmission distance≤75mTransmission rateE 19200bps,C 9600bpsPower supplyDC≈12V750mAMax load cell connected1-16pcsDisplay7 bit LED, 7 status indicatorCalendar/clock functionYY/MM/DD, time displayJumbo screen interface20mA, baud rate 600,Transmission distance≤100mSerial communication interfaceRS232, Baud rate 600-19200 optionalPrinter interfaceStandard parallel printing interfaceData storage1500 truck number
201 goods description and model number
100 name of customer
100 remark or notes
2000 weighing recordsIndicator power supplyAC 110-220V,50HzBackup power supplyDC12V/7AhSize303x185x205mm
2. Load Cell
1. MK-40T load cell
2. High precision, stability
3. Digital signal output
4. Good anti-interference ability, signal transmission for a long distance, anti-cheating
5. Self-Diagnostic Function
6. Moisture-proof, adopt to harsh working environment
7. Easy to installation and maintenance
8. Rated load:30t or 40tAccuracyC3Rated load40TRated output0.002%Combined error±0.02%F.STemperature effect on sensitivity±0.02%F.S/10°CTemperature effect on zero balance±0.02%F.S/10°CZero balance±1%F.SInput resistance750±10ΩOutput resistance703±2Ω,703±5Ω(L≥15m)Insulation resistance≥5000mΩSafe overload150%F.SUltimate overload200%F.SWorking temperature(-30~+80)oCRecommend excitation5~18VMax excitation24VMaterial of elastomerAlloy SteelProtection gradeIP67/IP68Cable12.5mTransmission distance800mExecution standardGB/T7551-1997/OIML R60
3. Junction box
  • Stainless steel enclosure is proven protection in harsh environments and against abrasive materials
  • High precision, stability, anti-interference ability
  • Special cable fitting between load cell and signal cable, ensure the good connection
  • Welded wiring or insert wiring are available
4. Printer (optional)
Brand:Panasonic 1131 24-pin bit printer
Feature highlights:
Parameters
Product model: standard pin bit printer
Printing direction: uni-directional/Bi-directional (user selectable)
Pins: 24-pin bit
Head service life:approx 200 million strokes in draft mode
Ink Ribbon:Ink ribbon KX-P145, about 3000,000 character
Replication capability:4pc(1pc original+3pc copies)
Buffer:64KB
Interface:USB2.0,Centronics parallel(IEEE1284 standard)
Printing performance
Printing speed: Draft 240 characters/s,Letter quality 80 character/s
Printing resolution: 360x360dpi
Software emulation: Epson LQ-850,IBM Proprinter X24E
 ModelWeighing capacityDivisionCountsSizeAccuracySCS-1010 tons5 kg2000n2*4 mOIML IIISCS-2020 tons10 kg2000n3*5 mOIML IIISCS-5050 tons20 kg2500n3*7 mOIML IIISCS-5050 tons20 kg2500n3*8 mOIML IIISCS-6060 tons20 kg3000n3*9 mOIML IIISCS-6060 tons20 kg3000n3*10 mOIML IIISCS-8080 tons40 kg2000n3*12 mOIML IIISCS-8080 tons40 kg2000n3*14 mOIML IIISCS-100100 tons40 kg2500n3*16 mOIML IIISCS-120120 tons40 kg3000n3*18 mOIML IIISCS-150150 tons50 kg3000n3.2*18 mOIML IIISCS-200200 tons100 kg2000n3.4*20 mOIML IIISCS-300300 tons100 kg3000n3.6*24 mOIML III**Remark: Tailor made according to your requirement is available**
**Counts=Max weighing/division***
