Supmeter High Accuracy Weighing Indicator for Belt Scale
Changsha Supmeter Technological Co., Ltd.- After-sales Service：24 Hours After-Sale Service
- Warranty：12 Months
- Weighing：>300kg
- Accuracy：0.5%-1.0%
- Display Type：LED
- Display Digits：8+4+4 LED Digital Display
Base Info
- Model NO.：BST100-B11+
- Measure Method：Semi-Automatic
- Shell Material：Aluminum
- Application：Conveyor Scale
- Certification：CE
- Customized：Customized
- Certificate：CE
- Sampling Frequency：400Hz
- Di&Do：3*Di & 4*Do
- Ao：4-20mA * 2
- Communication：RS485 & RS232
- IP Grade：IP65
- Power Supply：AC220V
- Operating Temperature：-25 Degree to +45 Degree
- Storage Temperature：-30 Degree to +60 Degree
- Transport Package：Carton Box
- Specification：160*84*188mm [W*H*D]
- Trademark：SUPMETER
- Origin：China
- HS Code：8537109090
- Production Capacity：50000PCS,Year
Description
Product DescriptionPower Supply AC220V±15% Display Sampling Frequency 400Hz A/D Convert 24-bit Keypad 6 keys for Menu&Shortcut mode operation with key tone Excitation Voltage Output of Loadcell DC10V Max. Connection number of Loadcell 8 Loadcells (350Ω) DI 3 Normally Open Switch Inputs DO 4 Normally Open Transistor Switch Outputs AO 2'PID Control' Analog Output: 4~20mA. Communication Port COM1:Optianal RS232/RS485/RS422/Profibus-DP/Ethernet; COM2:RS232 Net Weight Approx. 4.2kg IP Grade IP65 Accuracy of Flow Control 0.5%~1.0% Operatiing Temperature -25ºC~+45ºC
Package:
Packing Details : Carton Box, 1pcs/box
Delivery Details : 3-30 days after got full paymen
Warranty:
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
Delivery:
FAQ:
If you have another question, pls feel free to contact us.
Main Features:
- Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
- EMC design with high anti-jamming capability, suitable for industrial environment.
- 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
- 8+4+4 Red LED digital tubes for English character and digit display.
- Optional English keypad, Simplified Chinese keypad and Complex Chinese keypad.
- Menu&Shortcut mode operation with key tone.
- 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
- Broad-range speed pulse input circuit.
- Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
- Max. Connection Quantity: 8 Loadcells (350Ω).
- Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
- Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
- One optional 'Flow Setpoint' analog signal input [AI: 4~20mA].
- Max.3 definable 'Flow/Control Current /…' analog signal outputs [AO: 4~20mA].
- Quick and steady PID ration feeding control.
- 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
- The feeder and belt weigher can be started and stopped by DI&DO signal.
- 1 'Totalized Weight High-speed Pulse' output [PO].
- 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
- Weight Records per shift/day/month of a year can be queried and printed.
- With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations

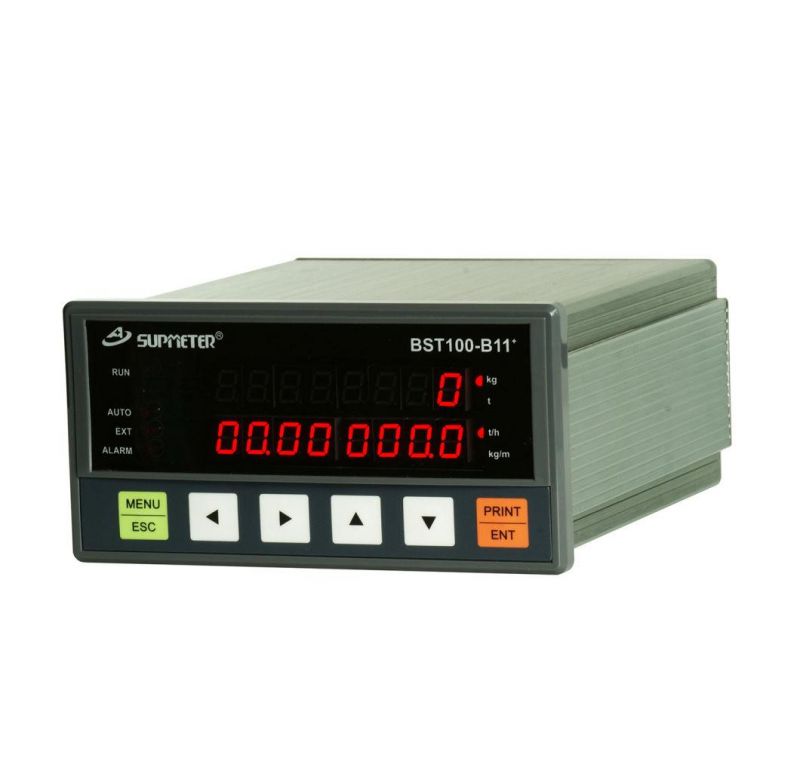

Product Show:
Technical Specifications:
8+4+4 Red Led Digital Tubes for English&Digit Display
Package:
Packing Details : Carton Box, 1pcs/box
Delivery Details : 3-30 days after got full paymen
Warranty:
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
Delivery:
FAQ:Q: Are you trading company or manufacturer ?
A: We are factory.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample. It is not free but with special sample price.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us.
