• Model NO.：BX101
• Scale Structure：Special Aluminium
• Operating Environment：Non Explosion Proof Loadometer
• Lightning Protection：Without Lightning Protection
• Treatment：Anodized
• Color：Silver
• Transport Package：Carton
• Specification：CE
• Trademark：hlh
• Origin：China
• HS Code：84239000
• Production Capacity：1000PCS,Month

1. Rated Load10, 20, 40 (t)2. Rated Output10t: 1.0+/-0.1mV/V; 20t: 0.9+/-0.1mV/V; 40t: 1.5+/-0.1mV/V3. Overload120%F.S(full panel)4. Output Resistance10t: 700+/-10Ω; 20t: 560+/-10Ω; 10t: 467+/-10Ω;5. Insulation Resistance>=1000MΩ(100VDC)6. Excitation Voltage9-15VDC7. Static Precision0.5-1.0%F.S8. Dynamic Precision3%F.S(1-5km/h),3-5%F.S(5-10km/h)9. Corner Error1%F.S10. Operating Temperature Range:-20 to +80 deg C11. Surface Level Requirement<5mm within 4m^{2(square meters)}                          12.Connection10m cable(according to user's requirement)

Packaging

Carton Size: 38x30x30cm

 Company Information

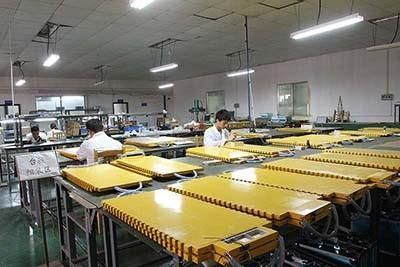

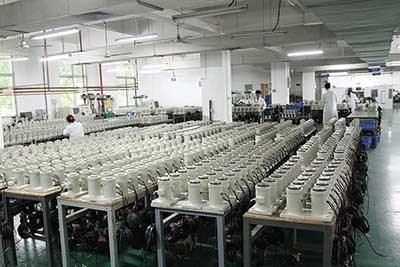

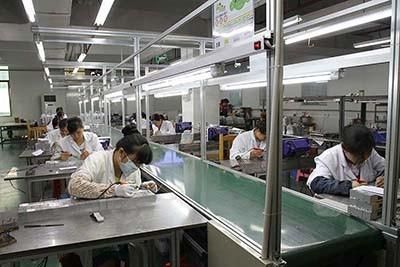

    Guangdong South China Sea Electronic Measuring Technology Co Ltd is specializing in producing resistance strain gauge, load cells, micro load cells, pressure sensors, portable dynamic axle weighing scales and other electrical measurement products.

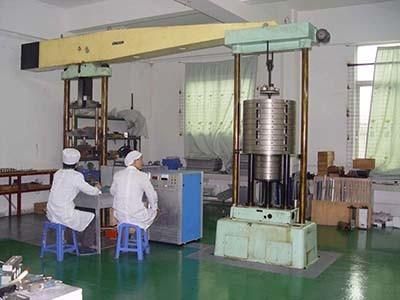

    The company has the formidable scientific research strength, improve the strict quality assurance system and excellent production equipment. The main products of strain gauge, load cell are certificated by RoHS, OIML(issued by EU.) CE etc. , the company subordinate products all technical supervision department issued by the national metrology license. In 2004 and 2005 respectively awarded by "Guangdong province private S&T enterprises " and " the Guangdong Hi-tech enterprise" title, in 2007 Dongguan intellectual property office granted "the patent pilot enterprise".

    Our load cells, strain gauges, pressure transducers and portable axle weigh scales have been exported to the world for a long time and achieved a certain market share. We have representative in US, Canada, Germany, British, Russia, India, Australia, etc. By this, we push our high quality products to the world!





FAQ

 About samples:
Yes, we have stock for samples.
About guarantee:
Three months for free replacement and one year for free repair.

About factory:

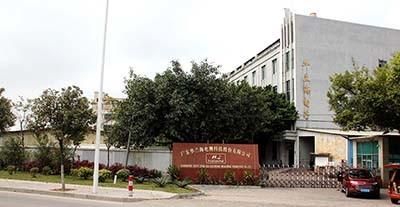

We are original manufacturer with 700 employees in Dongguan.
About certificates:
OIML, CE, ROHS, ISO9001, SGS
