• Model NO.：LP7561
• Application：Heavy Industrial
• Certification：CE
• Customized：Customized
• Type：Weighing Indicator
• Display：6-Digit 25mm LCD with Backlight
• Key：8
• Power Supply：AC110V~240V 50,60Hz
• Battery Enduring Life：30 Hours
• Communication：Zigbee 2.4GHz
• Distance：80m
• Transmitter：Lp7562W,Lp7562V (6 at Most)
• Operating Temperature：-10ºC ~ +40ºC (14ºF~104ºF)
• Rated Load：100000kg
• Input Sensitivity：0.5μV,D
• Zero Tracking：0.5 D,S
• Excitation：DC5V
• Input Voltage：-30mv~30mv
• Transport Package：Carton
• Specification：330*187*75 mm
• Trademark：LOCOSC
• Origin：Zhejiang, China (Mainland)
• HS Code：9031809090
• Production Capacity：5000 Sets,Month

Basic Info.

Model NO. LP7561 Application Heavy Industrial Certification CE Customized Customized Type Weighing Indicator Display 6-Digit 25mm LCD with Backlight Key 8 Power Supply AC110V~240V 50/60Hz Battery Enduring Life 30 Hours Communication Zigbee 2.4GHz Distance 80m Transmitter Lp7562W/Lp7562V (6 at Most) Operating Temperature -10ºC ~ +40ºC (14ºF~104ºF) Rated Load 100000kg Input Sensitivity 0.5μV/D Zero Tracking 0.5 D/S Excitation DC5V Input Voltage -30mv~30mv Transport Package Carton Specification 330*187*75 mm Trademark LOCOSC Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 5000 Sets/Month

Product Description

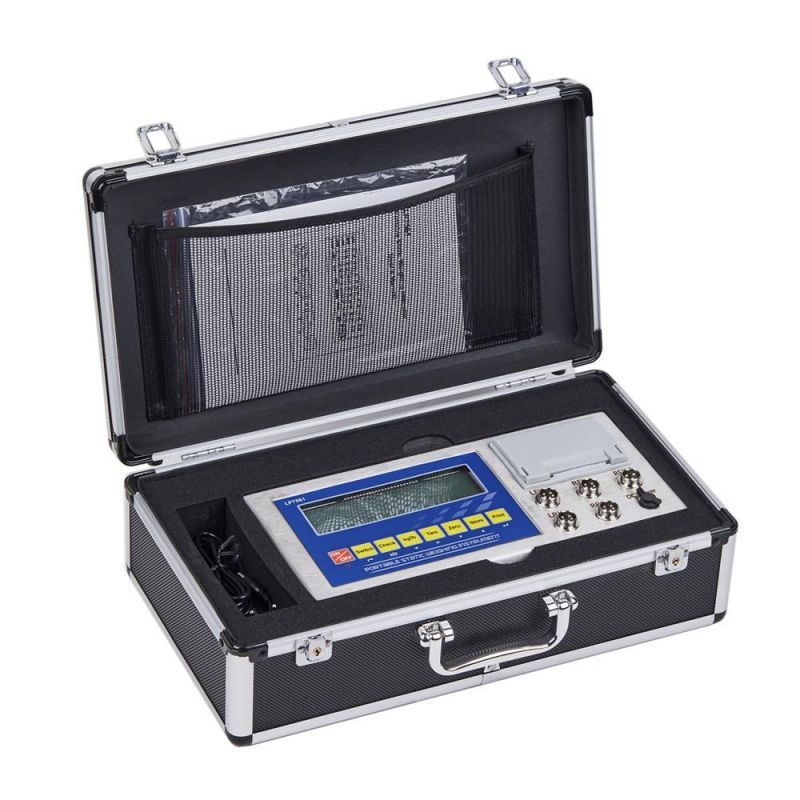

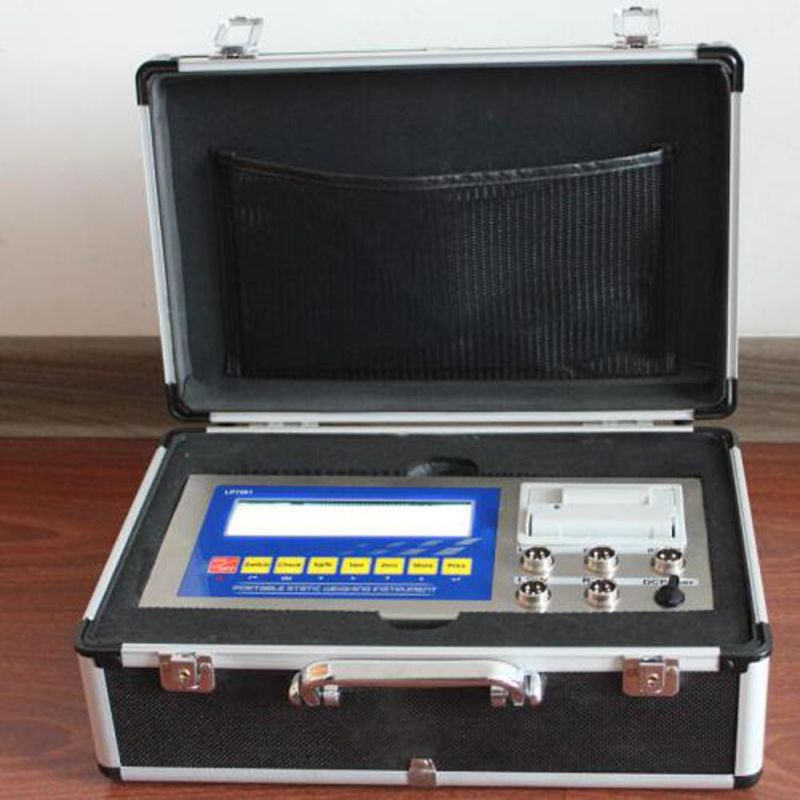

LOCOSC LP7561 Weighing Indicator

* New, highly featured axle indicators give the range and flexibility to produce the weighing system to suit your application.

Packaging details: inner box, outside box and wood pallet.

Technical parameters:

Display	6-digit 25mm LCD with backlight
Key	8
Power supply	AC 110V~240V 50/60Hz, 6V4Ah lead acid battery
Battery enduring life	30 hours
Communication	Zigbee 2.4GHz
Distance	80m
Transmitter	LP7562W/LP7562V (6 at most)
Operating temperature	-10ºC ~ +40ºC
Input sensitivity	0.5μV/D
Load cell excitation	DC5V, maximum connect with 24 pcs of 350Ω load cell
Zero calibration	-30mV ~ 30mV
AD internal resolution	1/2000000
AD external resolution	1/15000
AD coversion rate	60 times/sec
Span calibration	Full digital calibration
Dimension	200mm* 75mm* 185mm
Weight	1.8kg

Features:
1. high resolution axle indicator;

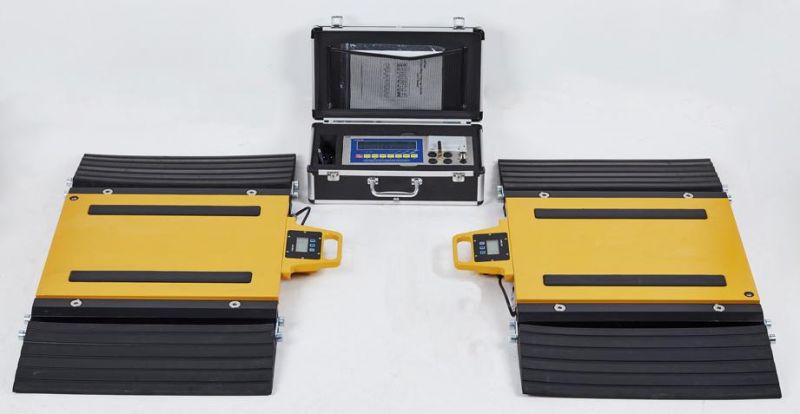

2. it can connect with 1/2/3/4 weighing pads;
3. 6-wire or 4-wire loadcell support, maxim 24pcs of load cells;
4. serial port RS232;
5. PC command mode;
6. stainless steel bracket.

















About Us

LOCOSC is a manufacturer of weighing apparatus and high precision instruments for professional use. We focus on the research and development, manufacturing, solutions, sales and after-sales services of weighing equipment. From high precision micro-analysis to more than 100 tons of weighing application, LOCOSC specializes its products and solutions around various processes of the petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry.

Main products include: bench scale, floor/platform scale, crane scale, axle scale, weighing indicator, load cell, weighing module.










Services

1. your inquiry will be replied within 24 hours;
2. OEM projects are welcomed;
3. send samples for customer to check the quality;
4. provide an English manual for using and maintaining;
5. products delivery within 20 to 45 days via international express DHL, UPS, TNT, FEDEX;
6. good after-sales service.

FAQ

1. How to place an order for products?
Let us know your requirement or application, we will give you a quotation in 24 hours. Then we will send the PI after you confirm the order.

2. Do you have any minimum order quantity limit for load cell?
One piece for sample checking is available, but the sample price is high. In the mass production, unit price depends on the rough idea of Qty., the more the better.

3. Do your company have any certificate for products?
Yes, we have been awarded certifications, such as ISO9001, NTEP, OIML, CE. We can send you the certificated documents and test reports.

4. What areas can your products be applied to?
Our products are rich in variety and can be used in petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry.

5. Are you a trading company or a factory?

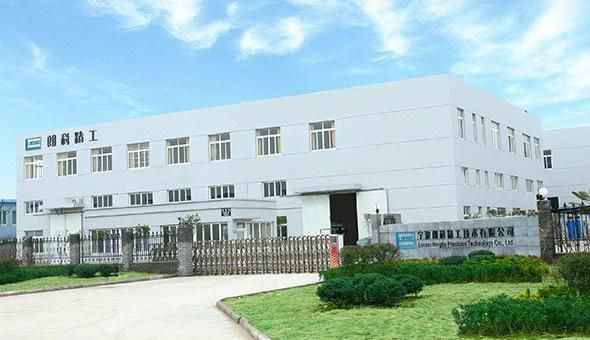

We are a group company specialized in the R&D and manufacture of weighing equipment for 12 years. Our factory is located in Ningbo, China. You can come to visit us. Looking forward to meeting you!





Call us at 86-13857486192 .
