• Model NO.：CS-EX02
• Data Stabilization Treatment：Static Type
• Customized：Customized
• Signal Output Mode：Wireless and Wired Options
• Service：OEM&ODM
• Remote Distance：<25m
• Production Time：25~45 Days
• Weighing Capacity：1-20t
• Power Supply：110V, 220V or According to Customer′s Requirement
• Standby Time：70h
• Transport Package：Carton, Wooden Box
• Trademark：SAINTBOND
• Origin：Zhejiang, China
• Production Capacity：8500 Sets Per Month

Basic Info.

Model NO. CS-EX02 Data Stabilization Treatment Static Type Customized Customized Signal Output Mode Wireless and Wired Options Service OEM&ODM Remote Distance <25m Production Time 25~45 Days Weighing Capacity 1-20t Power Supply 110V, 220V or According to Customer′s Requirement Standby Time 70h Transport Package Carton, Wooden Box Trademark SAINTBOND Origin Zhejiang, China Production Capacity 8500 Sets Per Month

Product Description

Product Details:

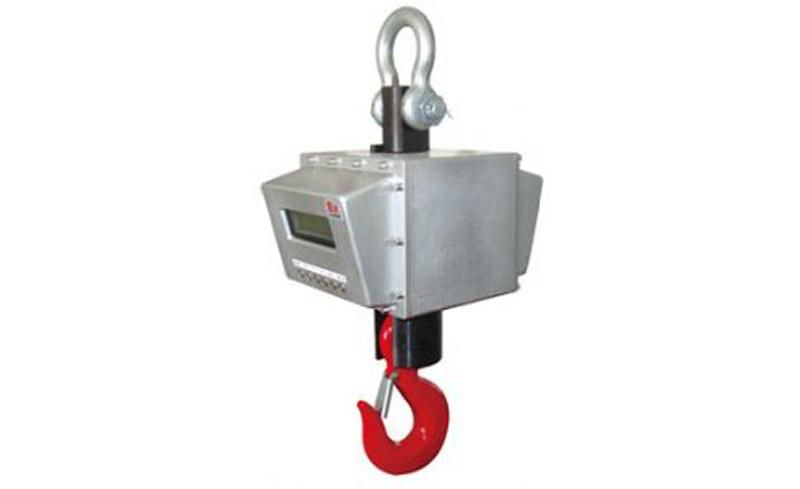

CS-EX02 adopts intrinsically safe battery, sensor, instrument or explosion-proof instrument to form a direct view explosion-proof
electronic hanging scale with intrinsically safe or explosion-proof function. It is especially suitable for weighing materials in and out,
process control, medium filling, batching, sub packing, and finished product trade settlement in explosion hazardous situations. The
features of explosion-proof, energy-saving, fast and convenient, intuitive display, accurate and reliable measurement of direct view
explosion-proof electronic hanging scale will save time, reduce costs, and improve product quality and efficiency for enterprises.
Application Scope:
CS-EX02 is specially designed for the suspension and weighing of substances in water treatment, coating, paint, pharmaceutical,
ammonia, chlorine, acetylene, petrochemical, military and other explosion hazardous occasions.

Product Information:
Explosion proof mark: ex d [ia] BT6;
Accuracy grade: III;

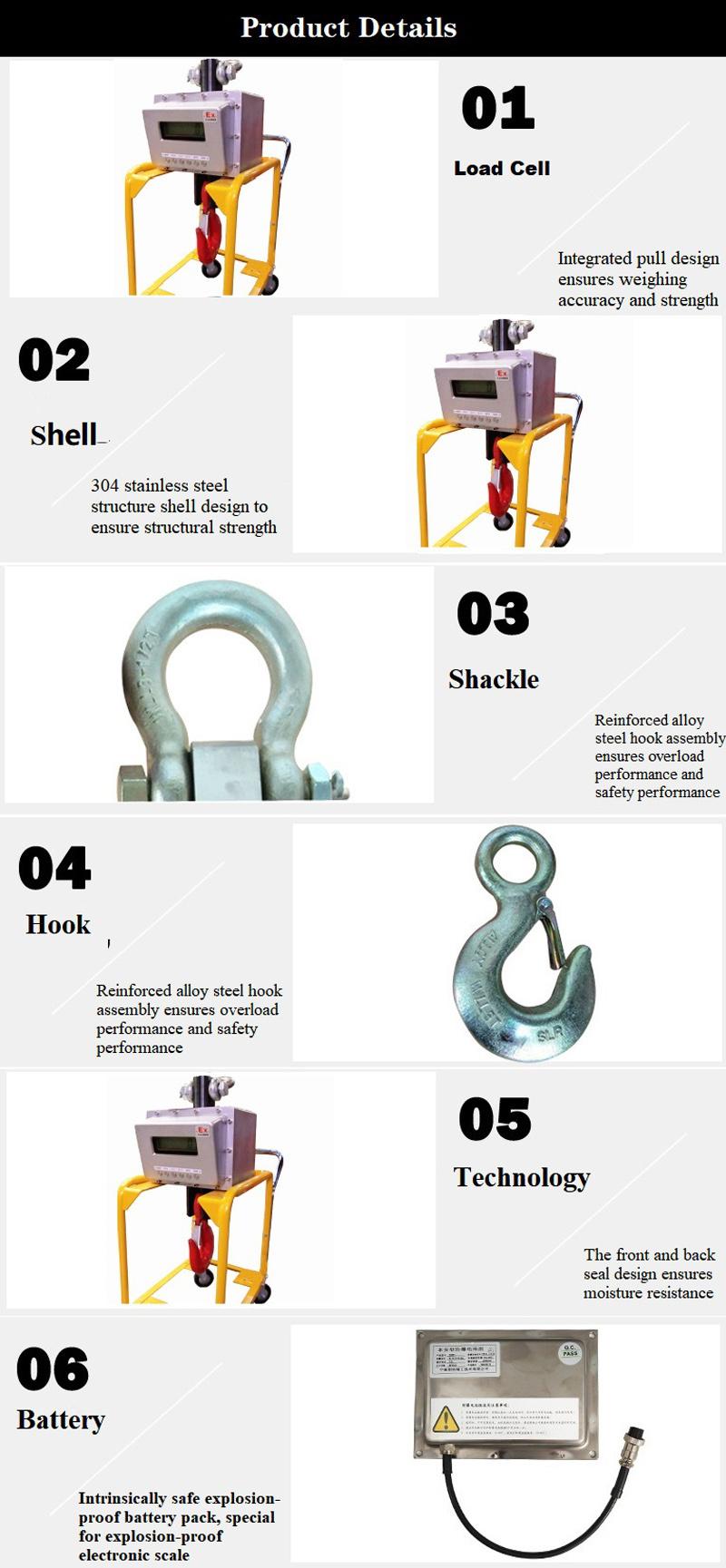

Main components: cast aluminum scale body, main board, safety barrier assembly, intrinsically safe sensor (ex CT6), hook, lifting ring and intrinsically safe battery pack;
Weighing range: 100kg ~ 30t;
Display resolution: 1000 ~ 30000;
Indexing value: 0.001 ~ 50;
Safety overload: 150% FS;
Display mode: 6-bit segment code LCD, word height 30mm;
Option: e0711 special flameproof remote controller;
Charging mode: remove the battery pack and charge in the safe area;
Standby time: about 70 hours at full charge;

Functional Features:
Basic functions: zero setting, peeling, accumulation, weight counting, storage and preset tare weight;
Maintain function (peak hold / data hold / Auto hold), lock weight function;
Store 10 times of weighing data, shut down and save;
Power saving function, idle mode and automatic shutdown;
It has the function of under voltage indication and under power shutdown;
