Portable Wheel Weighing Axle Scale
Ningbo Jiangbei Shiquan Gifts Co., Ltd.- Structure：Mechanical and Electrical Scale
- Sensor：Analogue Scale
- Installation：Weighbridge
- Automation：Automation
- The Weighing Method：Static Truck Scale
- Scale Structure：Channel-Section Steel
Base Info
- Model NO.：AS003D1
- Operating Environment：Explosion-proof Loadometer
- Lightning Protection：With Lightning Protection
- Display：LED or LCD
- Material：Aluminum-Alloy
- Service：OEM&ODM
- Power Supply：110V , 220V or According to Customer
- Production Time：25~45 Days
- Weighing Capacity：0.5~20t
- Defend Grade：IP66
- Net Weight：10kg
- Transport Package：Carton, Wooden Box, Tool Box
- Trademark：SAINTBOND truck axle scale
- Origin：Zhejiang, China
- Production Capacity：8500 Sets Per Month
Description
Wireless SpecificationA/D conversion method: Σ-Δ 24bit Input signal range: -19.5mV~19.5mV Load cell excitation: DC 5V Max. connection number of load cell: 1~4 Load cell connection mode: 4 wire Operating temperature: -10°C~40°C Allowable working temperature: -40°C~70°C Wireless transmission frequency: 430MHz to 470MHz Wireless transmission distance: 300~500 meters (In Open Place)

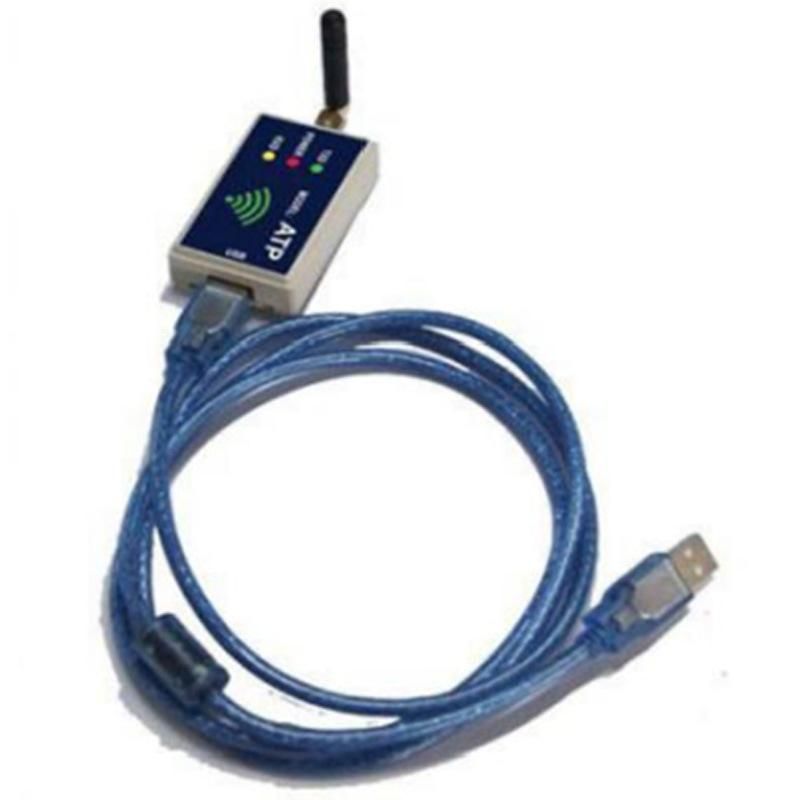

| Connect with PC (Optional) |
Description:
| Interface | USB (RS232) |
| communication protocol | 9600,N,8,1 |
| Receive Mode | Continuous or Command |
| Operating Temperature | -10 °C ~40 °C |
| Allowable Working Temperature | -40 ° C ~ 70 ° C |
| Wireless Transmission Frequency | 430MHz to 470MHz |
| Wireless Transmission Distance | 300 meters (in wide place) |
| Optional Power | DC5V(USB) |
| Dimension | 70×42×18mm(Without antenna) |

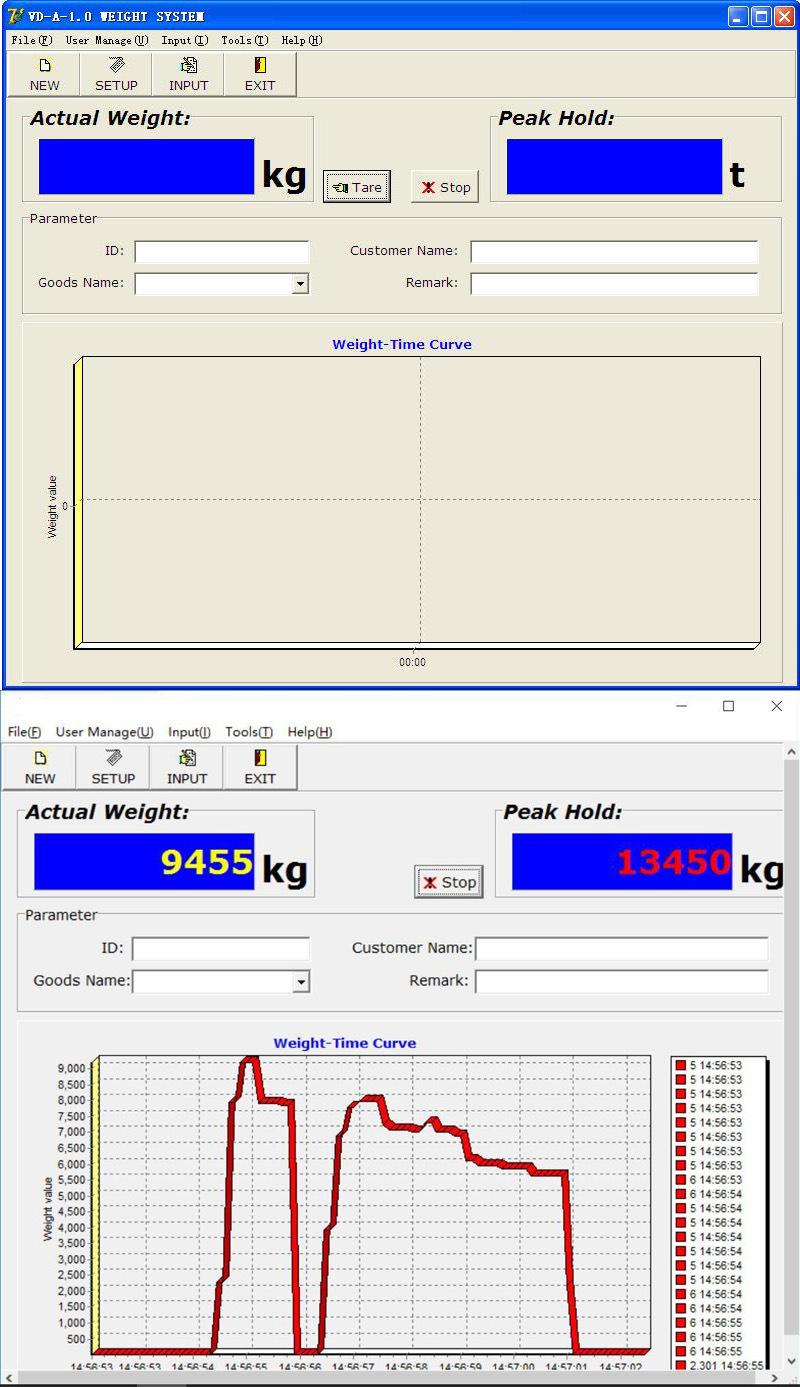

Software Installation instructions:
1.When you Insert the USB port to PC, it will notice you to install the driver of USB to RS232, after installation , Computer will find a new RS232 port.
2.Run the ATP software, click "SETUP" button, you will enter to system setup form, choose the com port ,then click "SAVE" button .
3.Restart the software, You can find the red led is light and green light is flickering, that is ok.
