Portable LED Display Axle Wheel Weighing Scale
Ningbo Jiangbei Shiquan Gifts Co., Ltd.- Structure:Mechanical and Electrical Scale
- Sensor:Analogue Scale
- Installation:Weighbridge
- Automation:Automation
- The Weighing Method:Static Truck Scale
- Scale Structure:Channel-Section Steel
Base Info
- Model NO.:AS003D
- Operating Environment:Explosion-proof Loadometer
- Lightning Protection:With Lightning Protection
- Display:LED or LCD
- Material:Aluminum-Alloy
- Service:OEM&ODM
- Power Supply:110V , 220V or According to Customer
- Production Time:25~45 Days
- Weighing Capacity:0.5~20t
- Defend Grade:IP66
- Net Weight:45kg

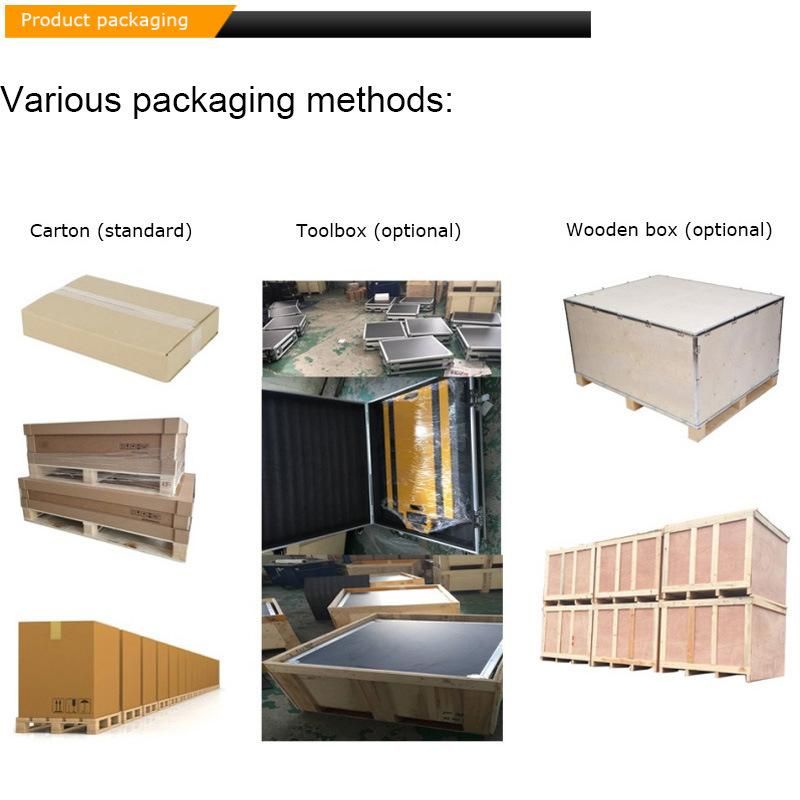

- Transport Package:Carton, Wooden Box, Tool Box
- Trademark:SAINTBOND truck axle scale
- Origin:Zhejiang, China
- Production Capacity:8500 Sets Per Month
Description
Basic Info.
Model NO. AS003D Operating Environment Explosion-proof Loadometer Lightning Protection With Lightning Protection Display LED or LCD Material Aluminum-Alloy Service OEM&ODM Power Supply 110V , 220V or According to Customer Production Time 25~45 Days Weighing Capacity 0.5~20t Defend Grade IP66 Net Weight 45kg Transport Package Carton, Wooden Box, Tool Box Trademark SAINTBOND truck axle scale Origin Zhejiang, China Production Capacity 8500 Sets Per MonthProduct Description

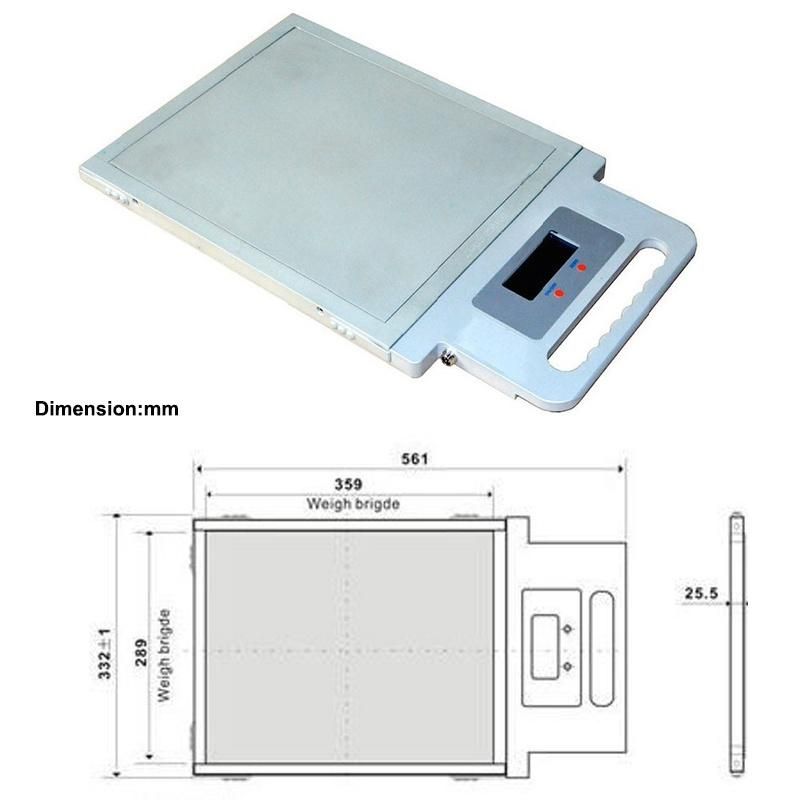

Product Details:
Aluminum-alloy; Ultra thin weigh pad design; Light-weighted, portable; Slope can be mounted or unmounted; 5 digits LED display; Larger weigh-pad
size to suit different vehicles; This product is mainly used to measure the weight of wheel & axle (when two weigh-pads are used) of vehicles statically
to help adjust the wheel & axle accurately. One AS003D can statically or dynamically measure wheel weight, so double can be parallelly connected to
measure axle weight. AS003D is widely used in measuring the weight of motorcar, auto car and little electrical bicycle.
Technical Parameter
Rated load: 2/3t | Static error:0.2%F.S |
Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
Indicator use temp. range: 0~+50ºC | Compensated temp. range: 0~+50ºC |
Rated output: 1.0±0.1 mV/V | Use temp. range:-30~+80ºC |
Non-linearity:0.2%F.S | Temp. effect on zero: 0.03 F.S/10ºC |
Error on corners: 0.2%F.S | Temp. effect on span:0.05 F.S/10ºC |
repeatability: 0.05%F.S | Safe overload: 120% |
Zero balance: ±1%F.S | Ultimate overload: 150% |
Excitation voltage: 9~15 VDC | Net weight: 10 kg |
Recommended voltage(V): 10 | Defend grade: IP66 |

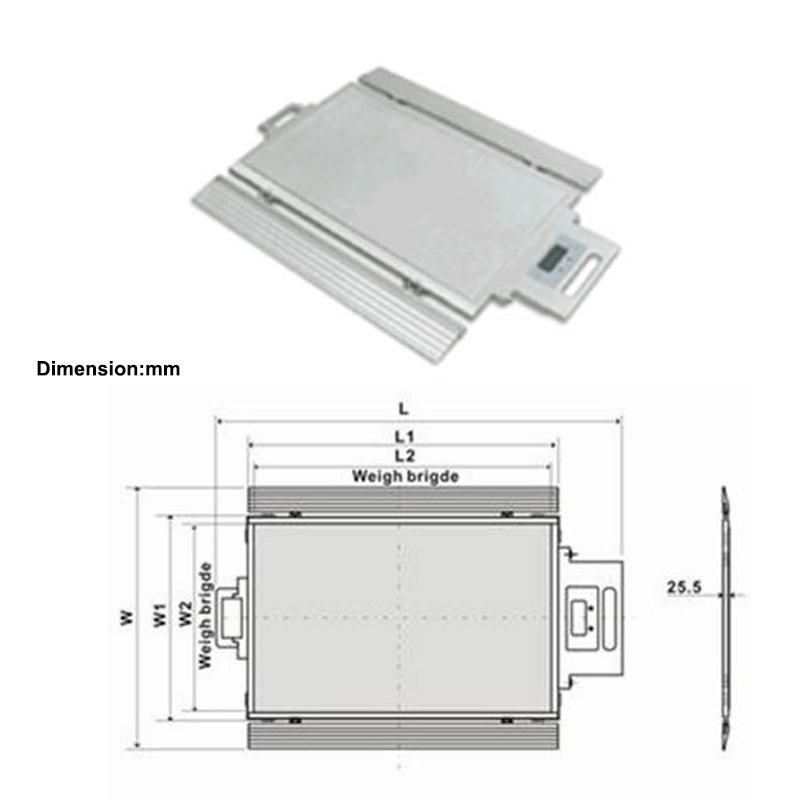

Capacity | L2(mm) | W2(mm) |
10/20t | 700 | 400 |
30/40T | 900 | 500 |
Product Details:
Aluminum-alloy; Ultrathin weigh pad design; Light-weighted, portable; Slope can be mounted or unmounted; 5digits LED display; Larger weigh-pad
size to suit different vehicles; This product is mainly used to measure the weight of wheel & axle (when two weigh-pads are used) of vehicles statically
to help adjust the wheel & axle accurately. One AS003D can statically measure wheel weight with high accuracy, so double can parallely connected to
measure axle weight.
Technical Parameter
Rated load:10/20/40t | Static comprehensive error: 0.1-0.3 %F.S |
Rated output:1.0±0.1 mV/V | Insulation resistance:≥5000 MΩ100VDC) |
Non-linearity:0.2%F.S | Compensated temp.range :-10~+50ºC |
Error on corners: 0.2%F.S | Use temp. range: -30~+80ºC |
Repeatability:0.05%F.S | Temp.effect on zero:0.03 F.S/10ºC |
Zero balance: ±1%F.S | Temp. effect on span:0.05 F.S/10ºC |
Excitation voltage: 9~15 VDC | Safe overload:120% |
Recommended voltage:10 V | Ultimate overload:150% |
Defend grade: IP66 | Net weight: 10kg (20t)/ 30kg (40t) |
