• Model NO.：SPC-30
• Automation：Automation
• The Weighing Method：Dynamic Weighbridge
• Scale Structure：U-Type Steel
• Operating Environment：Non Explosion Proof Loadometer
• Lightning Protection：With Lightning Protection

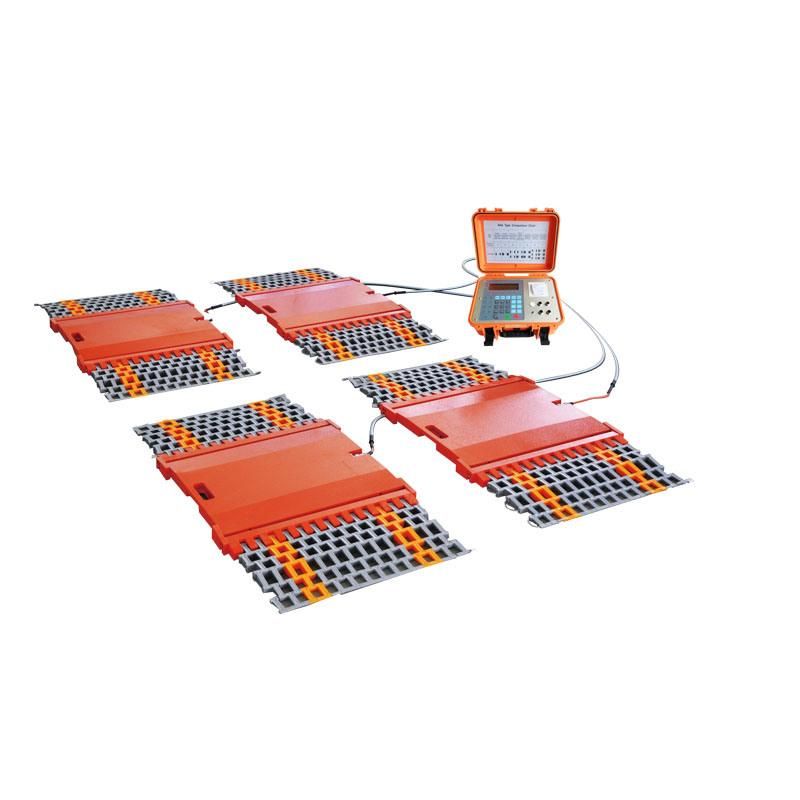

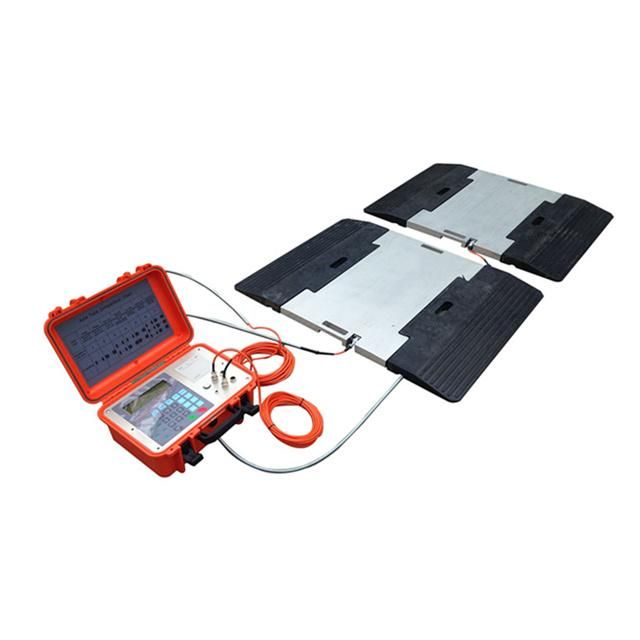

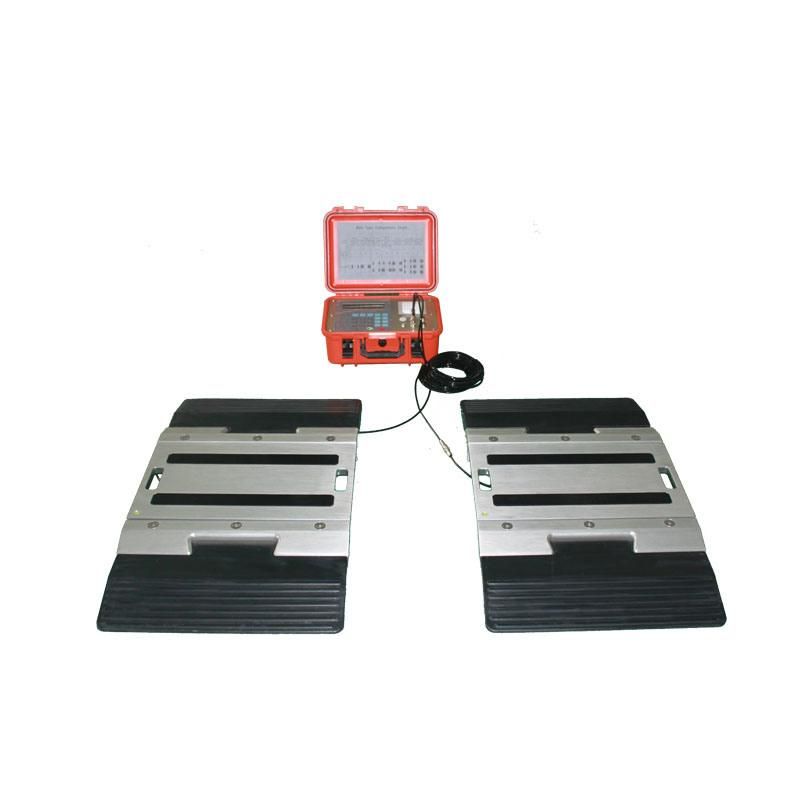

• Product Name：20t 30t 40t Mobile Portable Truck Axle Weigh Pad
• Safe Overload：150%F-S
• Environment Humidity：<90% Rh
• Power Supply：External:12V;Internal:6V--12ah (2pieces)
• Accuracy：OIML III
• Divisions：5-10kg
• Weigh Speed：<10km,H
• Transport Package：Standard
• Specification：900*500*40
• Trademark：OEM
• Origin：China
• HS Code：8423891090
• Production Capacity：100PC,Year

Platform Size (mm)500*400*40720*450*40900*500*40Ramp Size (mm)500*300720*330900*350Single pad capacity (t)101525AccuracyDynamic: 5%Static: 1%Inspection speedDynamic; ≤5km/hStatic: wheel stops in the middle of the weighing padSafe Overload150%Features

1. Split type, with 4 pcs or 6 pcs load cells inside

2. With high accuracy, heavy deadweight and high installation Height

3. With rubber ramp



1).Ultra-low,hard aluminum alloy pad,integrated design.

2).High strength,good repeatability.

3).Antirust,insterting-in and pulling-out seamless connection,waterproof.

4).Automatically distinguish vehicle axle model,check whether the vehicle is overloaded or not automatically.

5).Humanized software and hardware design.

6).With high grade aluminum suitcase,metallic painted,portable.
