• Model NO.：SCS Truck Scale
• Application：Agricultural
• Certification：OIML
• Customized：Customized
• Transport Package：as Per The Customers′ Requirements
• Specification：CE, SGS, SO9001
• Trademark：KEDA SCALES
• Origin：Made in China
• HS Code：8423891000
• Production Capacity：500set Per Month

Basic Info.

Model NO. SCS Truck Scale Application Agricultural Certification OIML Customized Customized Transport Package as Per The Customers′ Requirements Specification CE, SGS, SO9001 Trademark KEDA SCALES Origin Made in China HS Code 8423891000 Production Capacity 500set Per Month

Product Description

Technical parameter:
Precision grades: OIML(III)
Weighing range: 10-200T
Temperature range: Instrucment: -10~40 scale body: -30~65
Relative humidity: <95%
Working voltage: Voltage: 220V frequency: 50Hz
Indexing value: >3000
Safety overload: 150%Max
Platform combination length: 5-24m
Platform combination width: 3-3.4m

*Our company can design and make all kinds of non-standard electronic truck scale according to customer's requests
-. U-shape beams structure
-. 12mm thick steel surface avoid bending
-. ISO 9001: 2008
-. Convenient to install and maintend
1. Truck scale, u-shaped steel beams, uneasy deformation, good craftwork
2. Intelligent digital weighing instrument display, long-term working stability,
3. Easy for installation and maintenance.
4. Anti-jamming, anti-vibration, anti-corrosion, anti-wear capacity etc.
5. With high-precision sensors, testing accuractly, low failure rate
6. Use anti-surge junction box to protect weighing signal box,
7. Show tare, gross/net weight, date, time by digit. Auto tare, re-zero function.
8. Print all kinds of weighing lists
9. Dynamic check, digit filter and auto zero track
10. Interface: RS232 / standard communication

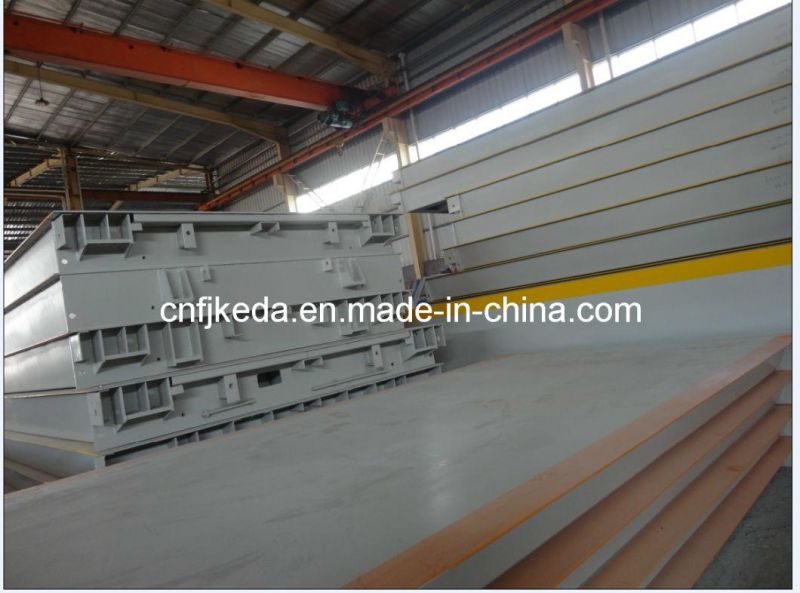

Made with U-shape beams, reasonable structure with economic cost and high rigidity. By carbon dioxide protecting continually welding, the welding is completely sealed and anticorrosive. The assembly and installation is simple and fast.

Standard accessories:
*. 1PCS digital weighing indicator
*. 1PCS Panasonic printer
*. 1PCS waterproof junction boxes
*. 1PCS keda dedicated shielded cable
*. 8PCS high accuracy digital load cell
*. 1whole set Bolt-screws, limit screw, loading cellscrew cover plate screw, installation tools.

Truck Scale	Capacity	Section	Parts	Load cell	TEU Container
3*6m	20-50t	1	2	4	1pcs(20GP)
3*7m	20-50t	2	4	6	1pcs(20GP)
3*8m	30-60t	2	4	6	1pcs(20GP)
3*9m	30-60t	2	4	6	1pcs(20GP)
3*10m	30-60t	2	4	6	1pcs (20GP)
3*12m	30-60t	3	6	8	1pcs(20GP)
3*14m	50-100t	3	6	8	1pcs(20GP)
3*16m	60-100t	4	8	10	1pcs(20GP)
3*18m	60-120t	4	8	10	1pcs(20GP)
3*20m	60-150t	4	8	10	1pcs(40GP)
3*24m	60-150t	4	8	10	1pcs(40GP)
3.4*14m	50-100t	3	6	8	1pcs(20GP)
3.4*16m	60-100t	4	8	10	1pcs(20GP)
3.4*18m	60-120t	4	8	10	1pcs(20GP)
3.4*20m	60-150t	4	8	10	1pcs(40GP)
3.4*24m	60-150t	4	8	10	1pcs(40GP)
