• Model NO.：LP7660
• Scale Structure：Channel-Section Steel
• Operating Environment：Explosion-proof Loadometer
• Lightning Protection：With Lightning Protection
• Product Name：Low Cost Portable Weighbridge for Truck
• Weighing Capacity：0.5~40t
• Unit of Measure：Kg or Lbs
• Accuracy：OIML III
• Display：6-Digit 18mm LCD with Backlight
• Power Supply：Lithium Battery 3.7V
• Protectio Class：IP67, IP68
• Cable Length：15m
• Load Cell：IP67 1000Ω Lp7110h
• Option：Lp766xv
• Transport Package：Standardsea Packing
• Specification：customize for customers
• Trademark：Xixing
• Origin：China
• HS Code：8423829090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. LP7660 Scale Structure Channel-Section Steel Operating Environment Explosion-proof Loadometer Lightning Protection With Lightning Protection Product Name Low Cost Portable Weighbridge for Truck Weighing Capacity 0.5~40t Unit of Measure Kg or Lbs Accuracy OIML III Display 6-Digit 18mm LCD with Backlight Power Supply Lithium Battery 3.7V Protectio Class IP67, IP68 Cable Length 15m Load Cell IP67 1000Ω Lp7110h Option Lp766xv Transport Package Standardsea Packing Specification customize for customers Trademark Xixing Origin China HS Code 8423829090 Production Capacity 1000sets/Year

Product Description

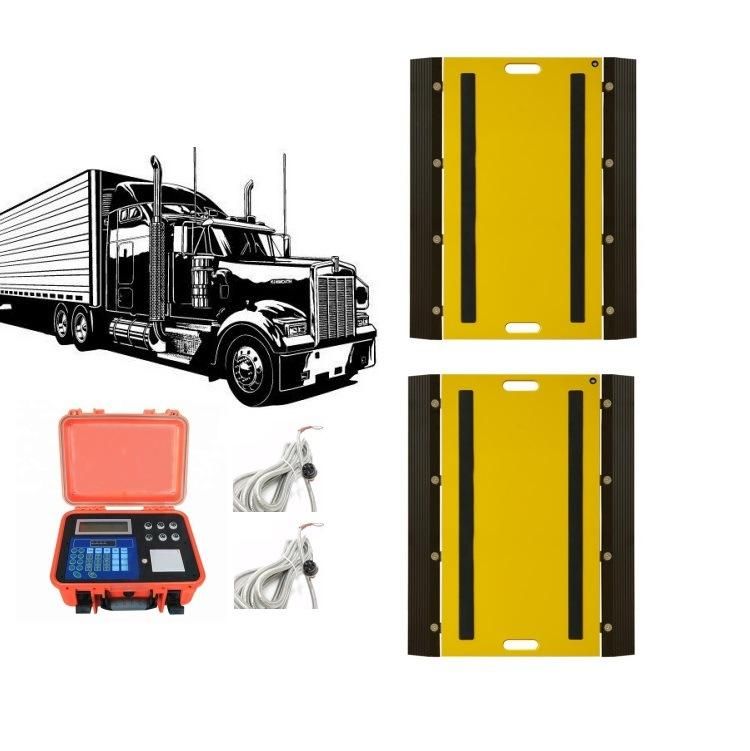

Low cost portable weighbridge for truck





Features:

1. wireless weighing plate, suitable for static weighing;
2. made of special aluminum, easy to carry and strong in structure, suitable for most working environments;
3. IP67 1,000Ω high impedance alloy steel load cells;
4. LP7561RF can connect up to 6 wireless weighing plate;
5. maximum transmission distance: 80m;
6. built-in weighing indicator, protected by IP67 sealed housing;
7. equipped with transmitter and radio modules for data transmission between external devices;
8. power supply: lithium battery (3.7V);
9. special anti-skid rubber at the bottom of the weighing platform;
10. IP68 connection of Weighing plate, IP68 connector;
11. moveable wheels;
12. option: LP766xV.


Parameter data:

No.	Capacity	A	B	C	Weight (kg)	Load cells
LP7660W-Y-3040	0.5t~5t	300	400	540	15	4 LP7110H
LP7660W-Y-4050	1.5t~5t	400	500	640	18	4 LP7110H
LP7660W-Y-4570	5t~15t	450	700	690	30	6 LP7110H
LP7660W-Y-5090	10t~20t	500	900	740	50	8 LP7110H
LP7660W-Y-6090	10t~20t	600	900	840	65	8 LP7110H
LP7660W-E-3040	0.5t~5t	300	400	410	16	4 LP7110H
LP7660W-E-4050	1.5t~5t	400	500	510	20	4 LP7110H
LP7660W-E-4570	5t~15t	450	700	560	35	6 LP7110H
LP7660W-E-5090	10t~20t	500	900	610	60	8 LP7110H
LP7660W-E-6090	10t~20t	600	900	710	75	8 LP7110H
LP7661W-Y-3040	0.5t~2t	300	400	430	14	4 LP7113
LP7661W-Y-4050	0.5t~2t	400	500	510	17	4 LP7113

Installation cases:

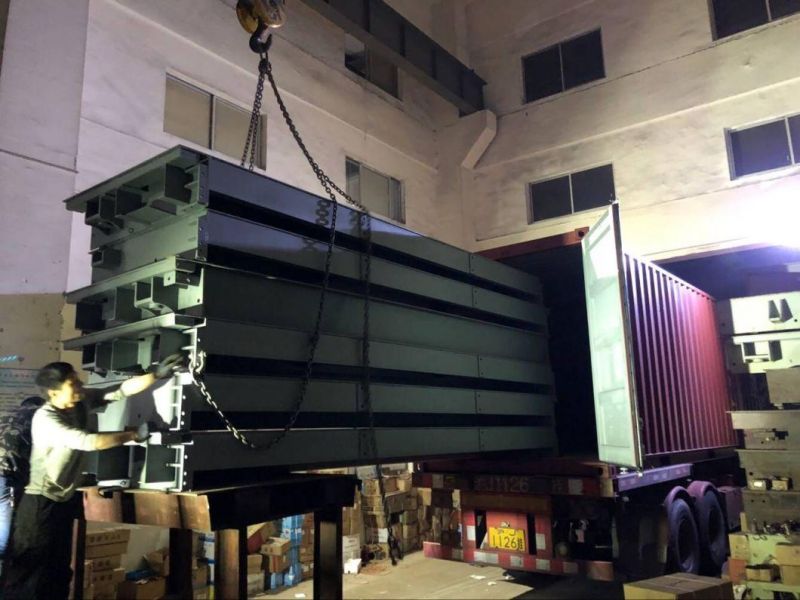

Loading container to customers:

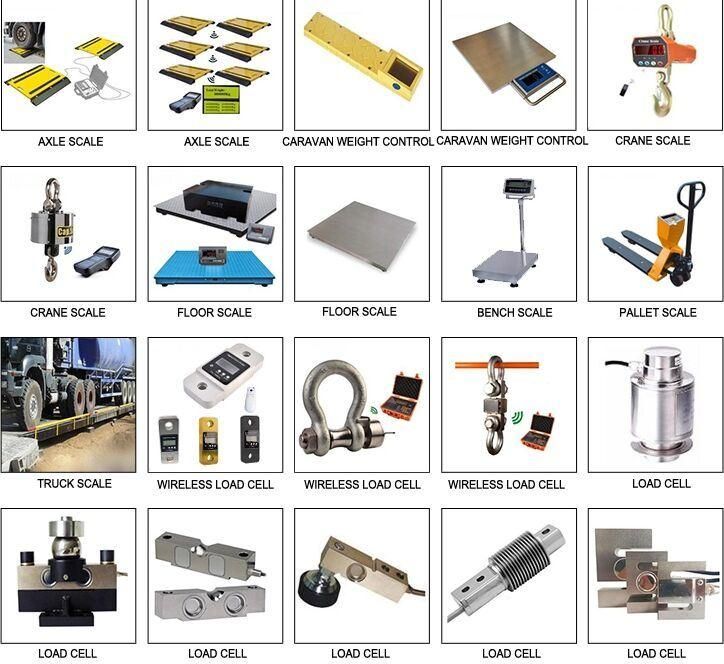

If you looking others We also have :



FAQ

 1.Can you make truck scale weighbridge design for us?

Yes,we have professional team with rich experience of truck scale weighbridge  design by CAD software.you only need to tell us truck scale weighbridge design you want to produce or send us drawing,so that we can customize according to your request.

2.Can you also offer truck weighing machines for us?

Yes,we can offer all kinds size and differet capacity of truck weighing machines to meet different request of customers.

 3.Could your engineer teach and train our worker and stay in our factory for long time?

Yes,we have very large engineer installation team,they can train and teach your worker to operate truck scale weighbridges,but you should pay them salary,round tickets and room and dinner and visa charges etc.

4.How about your machine quality, we are worry about the quality?

We are more than 30 years manufacturing experience of different kinds of truck weighings machines.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard.our truck scale is running well in more than 30 countries
