• Model NO.：RK400-01
• Usage：For Checking
• Shape：Round
• Customized：Non-Customized
• Measuring Range：≤8mm,Min
• Collector Dia：200mm
• Collector Height：350mm
• Resolution：0.2mm
• Accuracy：2%
• Output：5 Pulse ,mm or RS485 Optional
• Cable Length：1.5m
• Matrial：304 Stainless Steel
• Leaf Filter：Optional
• Transport Package：1 Piece Per Box
• Trademark：Rika
• Origin：China
• HS Code：90318090
• Production Capacity：10000PC,Month

Overview Product Description

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

FEATURES
   Compact size for easy use
   High accuracy, good stability
   Mesh in the funnel preventing debris such as leaves and insects from entering the working of rain sensor(mesh is optional)
   Well made tipping bucket with low resistance
   Highly polished stainless steel construction
   Horizontal Bubble in the bottom
   Rain collector with filter, to prevent the leaves, such as debris jam over the hole
   Optional heating function in cold region

APPLICATIONS
   Water supply system
   Hydrologic monitoring
   Natural disaster monitoring
   Agro-meteorological research
   Climate research

Specification

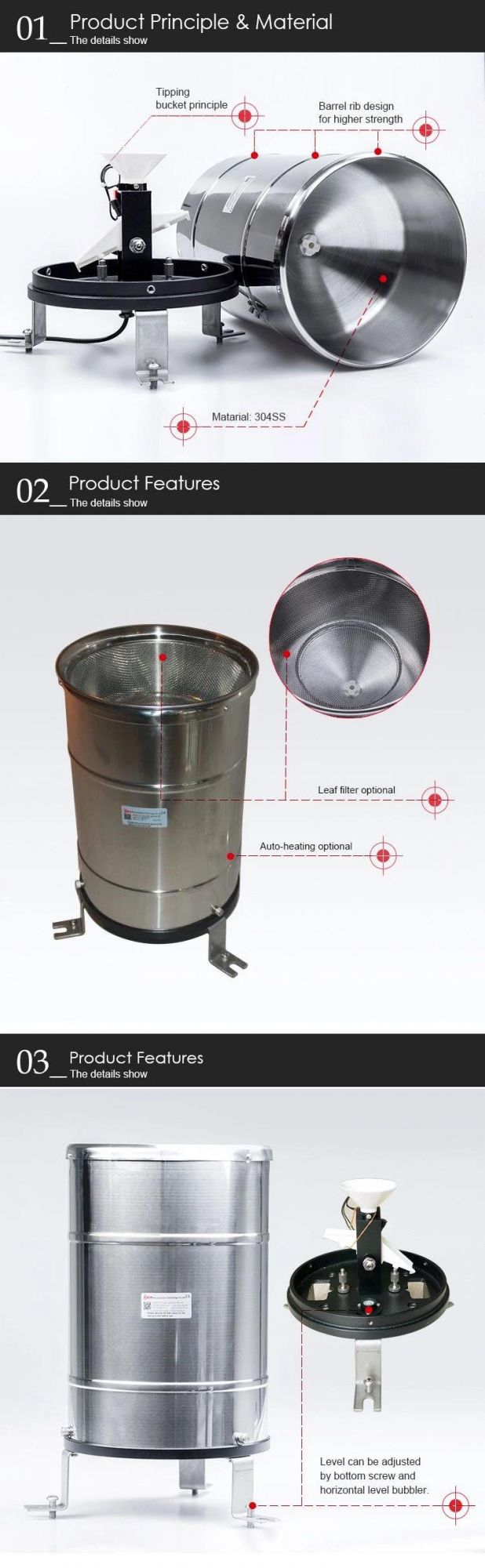

Detailed Photos

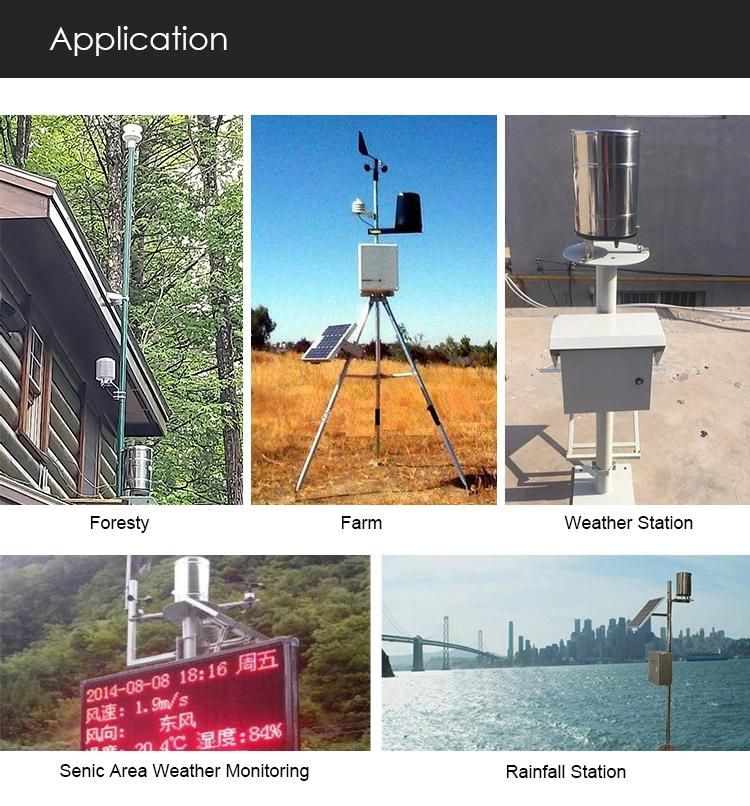

Application



Testimonial

Company Profile

Working Process
Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery
pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through
its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is "full"
, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse
signal to the data logger or electronic counter. Through this tipping "seesaw" action, the other
side of the bucket is aligned to receive the flow from the delivery pipe. This recording and
tipping cycle continues with rainfall.
