• Model NO.：TBH
• Scale Structure：Steel I Beam
• Operating Environment：Non Explosion Proof Loadometer
• Lightning Protection：With Lightning Protection
• Load Cell：OIML Approved M36I
• Accuracy：Class III
• Units：Kg, T
• Warranty：10 Years Warranty for The Platform
• Transport Package：Bulk
• Specification：3.4m en option
• Trademark：HIWEIGH
• Origin：China
• HS Code：8423899010
• Production Capacity：20000PCS,Year

Basic Info.

Model NO. TBH Scale Structure Steel I Beam Operating Environment Non Explosion Proof Loadometer Lightning Protection With Lightning Protection Load Cell OIML Approved M36I Accuracy Class III Units Kg, T Warranty 10 Years Warranty for The Platform Transport Package Bulk Specification 3.4m en option Trademark HIWEIGH Origin China HS Code 8423899010 Production Capacity 20000PCS/Year

Product Description

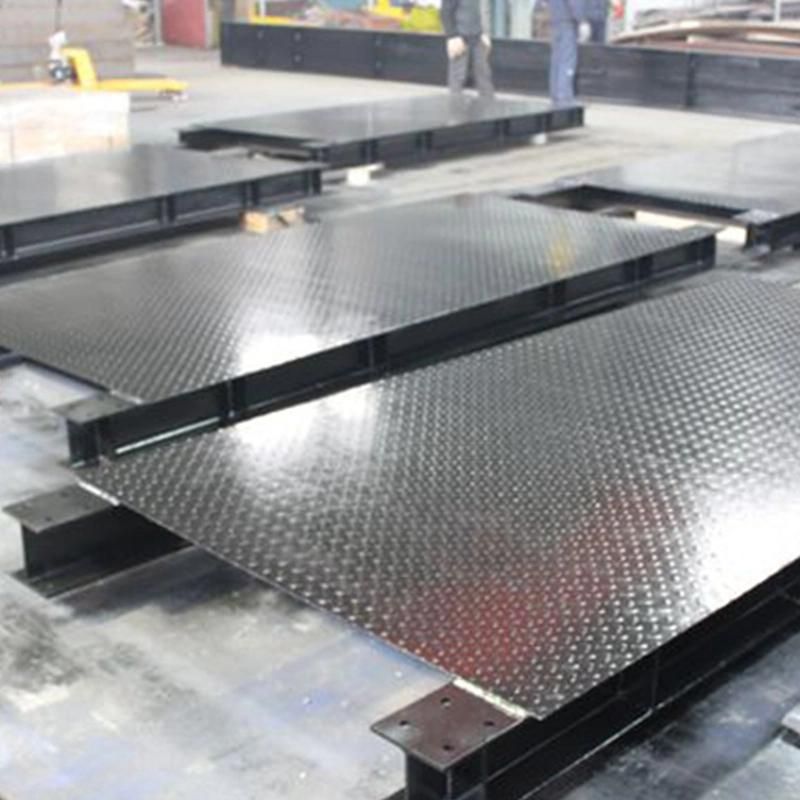

H beams Module Structure
Stronger H beams structure, with checked plate. Modules design for easy loading in truck or container.

Easy Installation
Easy installation with labor work saving.

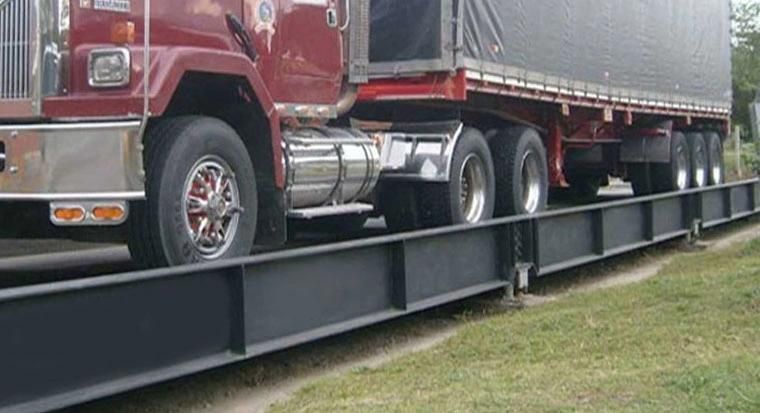

Side Guide
High 500×200 H beams on 2 sides

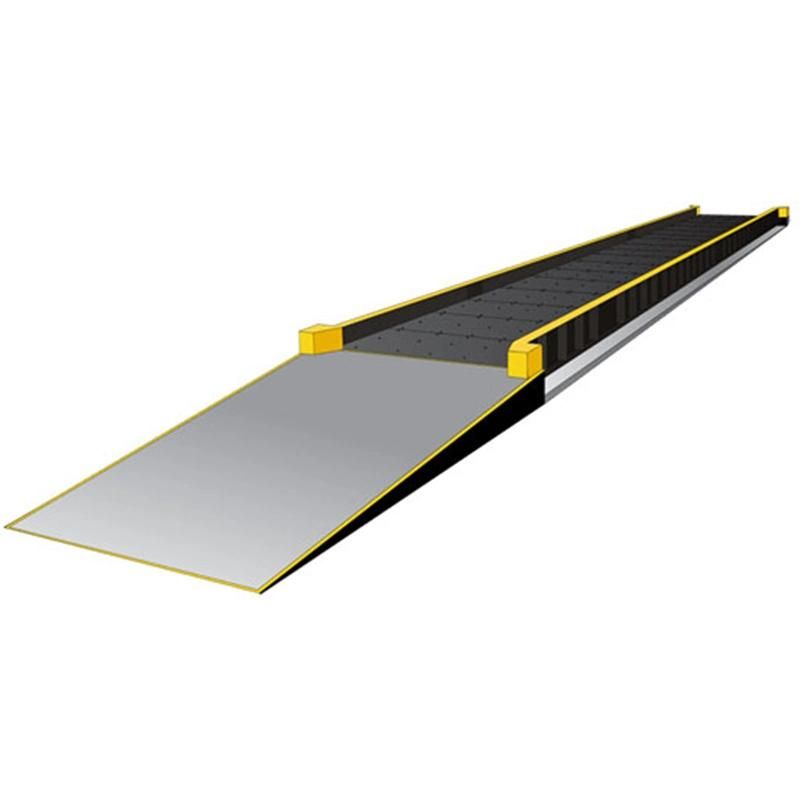

PLATFORM
Heavy duty with H beams and check plate. Smart design with easy installation. Modules design for container/truck load. 3m or 3.4m width. 16m, 18m, 21m, 24m length. Epoxy painting for long time use.

LOAD CELL
OIML approved M36i column load cell. Stainless steel material . Hermetically sealed, IP68 .Optional HM9B model.

INDICATOR
S.S housing, IP65 protection. 240×128 dot matrix LCD. High accuracy up to 10,000e. Anti-vibration and anti-surge design. Easy to operation wtith big LCD display. Multi interface: RS232, RS485, Erthernet, etc. Super anti-interference technology:  Analog or digital working mode.

Models

Part No.	410015	410016	410017	410018
Models	TBH316	TBH318	TBH321	TBH324
Capacity	80Ton	100Ton	100Ton	120Ton
Division	20kg	20kg	20kg	20kg
Platform size	3x16m	3x18m	3x21m	3x24m



Part No.	410019	410020	410021	410022
Models	TBH3416	TBH3418	TBH3421	TBH3424
Capacity	80Ton	100Ton	100Ton	120Ton
Division	20kg	20kg	20kg	20kg
Platform size	3.4x16m	3.4x18m	3.4x21m	3.4x24m

Company Information

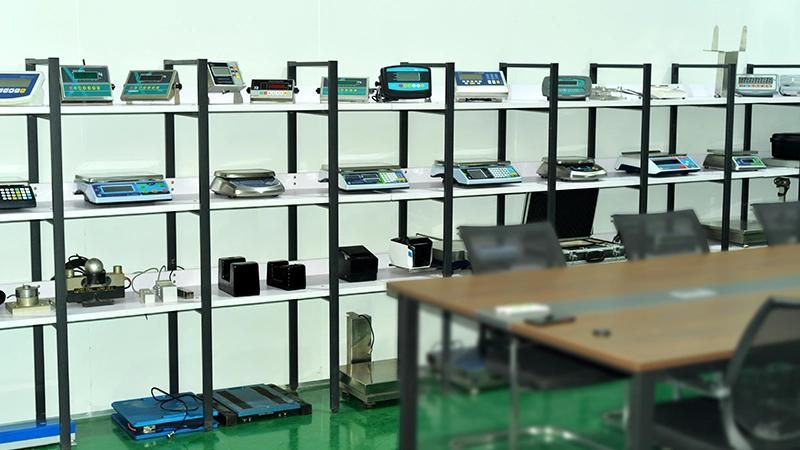

We have been devoted ourselves to the development and improvement of weighing technology and system for
about 20 years, we also take the swiftest result of the weighing process and highest precision of weighing result as
our target for every weighing solution we supplied.

With all top-class engineers, we making only high quality weighing terminals, OIML approved load cells, stainless
steel scales and precision balances. With high protection till IP68&IP69K, and also multi-output of Modbus, RS232
/RS485, 4-20mA, Bluetooth, WiFi, etc., we can meet almost all your weighing demands.

We are looking for the partners in each market with our win-win policy for the marketing, it's not about selling the
products but build up the real long-term business ecosystem!

Moorange - Precise Your Weighing !
HiWEIGH - Value Each Gram !
JoyScale - Enjoy Your Business !

Precise your weighing for industry, laboratory, food, medical and logsitics!
