• Model NO.：SM025
• Resolution：0.01mm
• Precision：0.015mm
• Measure Method：Manual
• Accuracy：A
• Precision Measuring Device：Precision Measuring Device
• Certification：GB
• Customized：Customized
• Transport Package：Carton
• Trademark：SYS
• Origin：China
• Production Capacity：4000PCS Per Month

Basic Info.

Model NO. SM025 Resolution 0.01mm Precision 0.015mm Measure Method Manual Accuracy A Precision Measuring Device Precision Measuring Device Certification GB Customized Customized Transport Package Carton Trademark SYS Origin China Production Capacity 4000PCS Per Month

Product Description

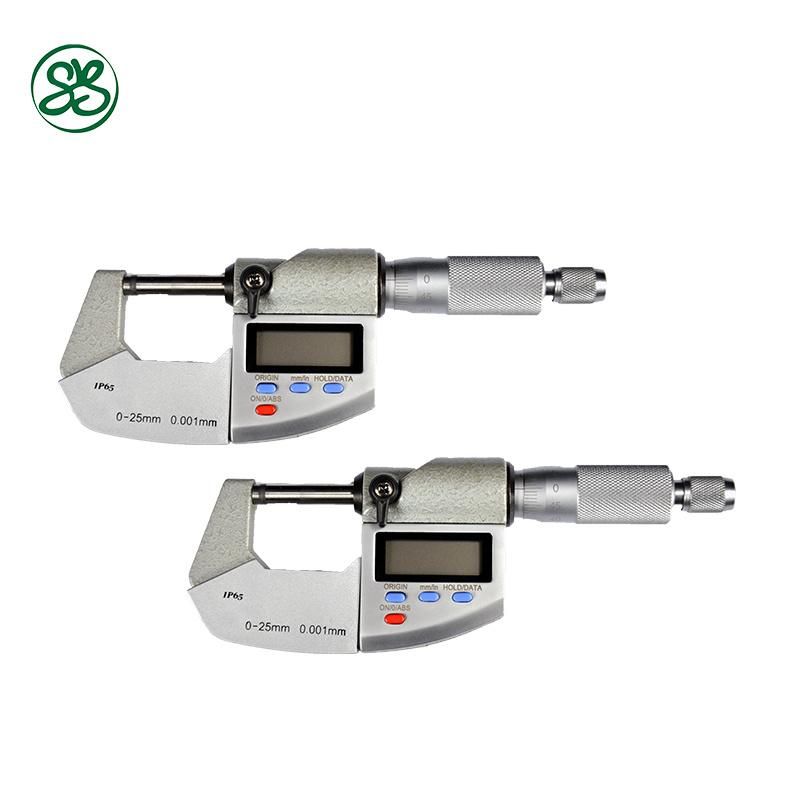

Electronic Outside Micrometer
Production Feature:

1. Class A electrostatic protection.
2. IP65 waterproof rating.
3. Function: Switch; Metric/English system; Zero at any position.
4. Carbide probes.
5. Resolution: 0.001mm/0.00005".
6. 3V lithium battery (CR2032), power consumption <15uA.
7. Data output.
8. Fast response time, no over-speed error, no power-on failure.
9. Automatic power off.

Technical Specification:

Model	Measurement Range	Division value	Precision
SM-025	0-25mm	0.001mm	+0.003mm
SM-050	25-50mm	0.001mm	±0.003mm
SM-075	50-75mm	0.001mm	±0.004mm
SM-100	75-100mm	0.001mm	±0.004mm

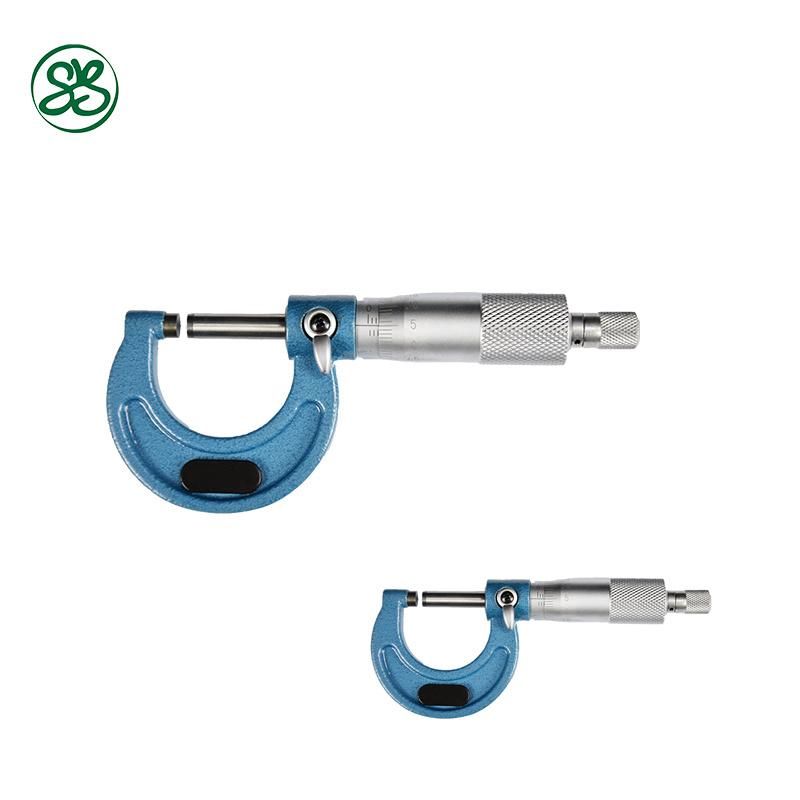

Outside Micrometer

Production Feature:

1. Measuring surface with carbide tip.
2. Smooth chrome surface with clear scales.
3. With locking clamps.
4. Ratchet locking device or friction sleeve ensures accurate repeatability.
5. With a reference bar (excluding 0-25 models).

Technical Specification:


Model	Measurement Range	Division value	Precision
SN-025	0-25mm	0.01mm	±0.004mm
SN-050	25-50mm	0.01mm	±0.004mm
SN-075	50-75mm	0.01mm	±0.005mm
SN-100	75-100mm	0.01mm	±0.005mm
SN-125	100-125mm	0.01mm	±0.006mm
SN-150	125-150mm	0.01mm	±0.006mm
SN-175	150-175mm	0.01mm	±0.007mm
SN-200	175-200mm	0.01mm	±0.007mm
SN-225	200-225mm	0.01mm	±0.008mm
SN-250	225-250mm	0.01mm	±0.008mm
SN-275	250-275mm	0.01mm	±0.009mm
SN-300	275-300mm	0.01mm	±0.009mm
