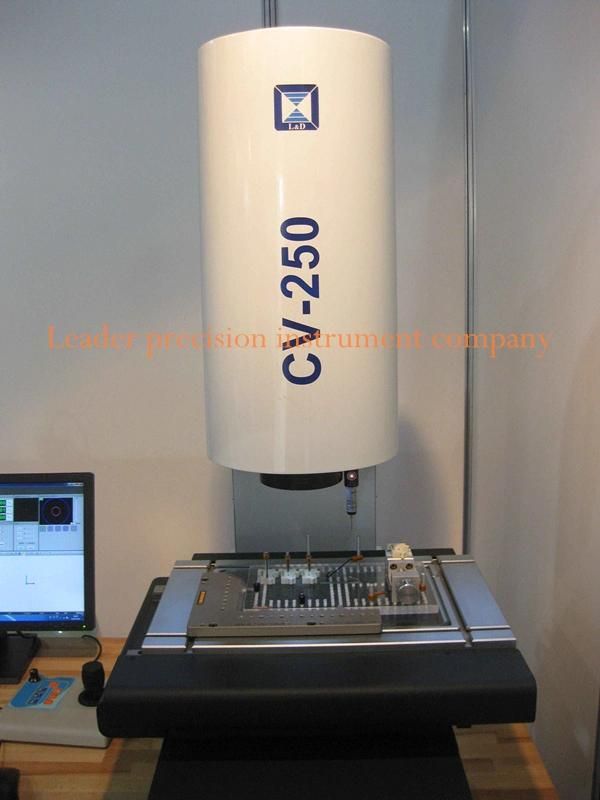

3D Automated Small Size Video Measuring Machine (CV-250)

Leader Precision Instrument Co., Ltd.
  • Type：Dial Indicator
  • Material：Aluminum Alloy
  • Measurement Object：2D Element
  • Range：220*120mm
  • Precision：(2.5+L,150)Micro
  • Measure Method：Automatic

Base Info

  • Model NO.：CV-250
  • Accuracy：A
  • Precision Measuring Device：Precision Measuring Device
  • Certification：CE, ISO
  • Customized：Customized
  • Name：Video Measuring Machine
  • Model：CV-250
  • Stage Size (mm)：450 X280
  • Glass Size (mm)：306*196
  • Travel of Xyz(mm)：220*120*150
  • Driving System：Servo Motor Control
  • Speed：200 mm,S
  • Resolution of X/Y/Z-Axis：0.0005mm
  • X, Y-Axis Accuracy：≤( 2.5 + L,150 )*0.001mm
  • Software：Quick Image Measuring Software Qim-5008 & USB
  • Transport Package：Standard Exporting Package
  • Specification：SGS
  • Trademark：Leader
  • Origin：Guangdong
  • HS Code：9031809090
  • Production Capacity：100 PCS,Year

Description

Parameter
 ModelCV 250CV 300CV 400Stage Size (mm)450 x280500 x 300606 x 466Glass Size (mm)306*196350 x 280450 x 350Travel (mm)X axis220270370Y axis120170270Z axis150 (for focus)150 (for focus)150 (for focus)Driving SystemServo Motor ControlSpeed200 mm/sResolution of X/Y/Z-axis0.5μ mPositioning Accuracy1μ mX, Y-axis Accuracy≤ 2.5+L/150 (μ m)Z-axis Accuracy0.05-0.03mmSoftwareQuick Image Measuring software QIM-5008 & USBVideo System? CCD Camera: SENTECH Color 1/2" CCD Camera
? Lightening System: Cold-light source Surface and Transmission illumination
? Zoom Lens: U. S. A Navitar Zoom Lens
? Magnification of field lens: 0.7X-4.5X
? Total Magnifications: 30X-190X
? Object View: 10.6mm-1.6mmWeight (KG)145170270Power SupplyAC220V/110V      50/60 Hz Standard Delivery:Quick Image Measuring software QIM-5008Sentech Color 1/2" CCD CameraNavitar Zoom Lens 0.7x-4.5xCapture CardUSB transfer BoxLED Light sourceRenishaw MCP Probe set  SENTECH Color 1/2" CCD Camera Technical DataPickup Device & LensDisplay SystemTV LinesMin. IlluminationPower SourceDimension(mm)1/2" Color(CCD, C/CS-Mount)PAL4800.2Lux/F1.2DC 12V/AC24V70*57*260 Optional Accessories0.5x Navitar Additional Lens2x Navitar Additional LensCalibrations ScaleNavitar Coaxial LensNavitar Auto Zoom LensOptem Auto Zoom+ Coaxial lens 3D Automated Small Size Video Measuring Machine (CV-250)3D Automated Small Size Video Measuring Machine (CV-250)
