• Model NO.：RAY-510
• Usage：For Checking
• Customized：Non-Customized
• Transport Package：1 Set, Wooden Case

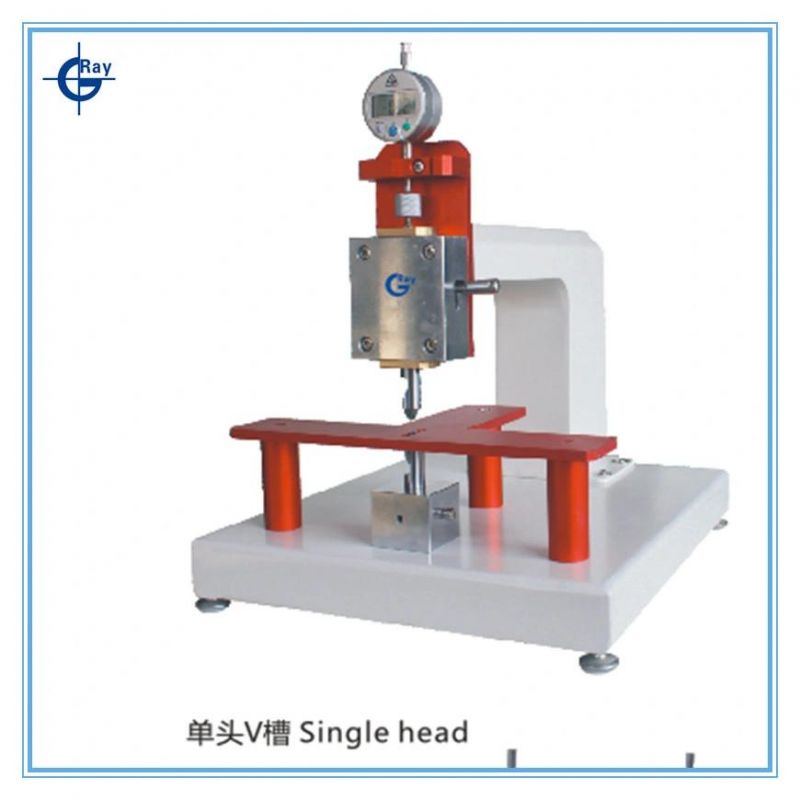

• Specification：Single side
• Trademark：Ray Shine
• Origin：China
• HS Code：9031809090
• Production Capacity：30 Set, Month

ModelRAY-510Accuracy0.02Throat depth230mmUnitmm/inRange0-8mm
Features:
1.Easy and convient cooperation.
2.Dial indicator measurement by joint venture and high precision;
3.0.02mm; Digital display table, the accuracy of 0.02 mm;
4.0.01mm; Minimum unit: 0.01 mm;
5.230mm; Effective extends the longest size 230 mm;

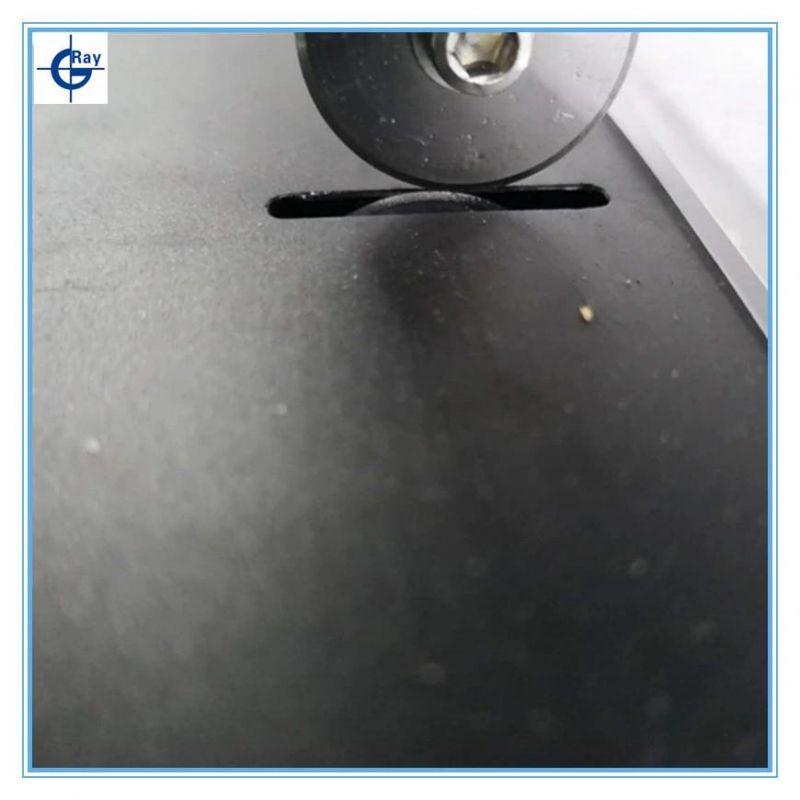

6.360; Circular cutter life is long, 360 degrees all available;
7.Mm/in can alternate;
8.Can test the thickness of pcb board, v-cut and can calculate the depth of v-cut;
9.Measuring tool slide up and down slide type, high precision;
10.To measure depth: stroke within 8 mm on the edge of the sword;
11.The blade is of high quality material, the most thin blade: 0.15 mm;
12.500mm*505mm*400mm; Machine size 500 mm * 505 mm * 505 mm wide;
13:Weight 15KG;
14.Certificate Number: BCTC-160303310C;


Usage:

It is used for PCB V-cut thickness residual and single side V-cut thickness measurement.


Company Introduction
Ray-Shine Electronic (HK) Ltd (Dongguan Dinglu Electronic Tech Co.,Ltd)is a high&new-tech enterprise located in Dongguan city, Guangdong Province China. We expertised in PCB production and percision inspection machine equipment such as prepreg cutting machine, metallographic machines, line width testing machine, panel thickness testing machine, X-ray inspection machine ect, and PCB related consumables such as PP sheet, filter cartridge, protective film  researching, manufacturing, and selling and technology support.








FAQ:



1. What's the gauge brand?

----Standard machine use Sanliang Brand, if you need other brand such as Mitutoyo we can also change brand


2.What's the PCB thickness range?

----0-8mm


3.What's your nearest port?

---Shenzhen port


Packing and Shipping

Packing Method:
Standard wooden package

Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.
