• Model NO.：UM-4DL
• Shape：Rectangular
• Customized：Non-Customized
• Name：Industrial Parts Ceramic Ultrasonic Steel Plate Pi
• Display Screen：2.4qvga (320 × 240) Color OLED Screen
• Working Principle：Ultrasonic Pulse , Echo Method and Echo , Echo Met
• Measure The Resolution：0.01 or 0.1mm(0.001 or 0.01in)
• Measuring Range：0.6 to 508 mm (0.025 to 20.00 Inch)
• Repeatability：0.05mm
• Gain：High, Medium and Low Third Gear Adjustable
• Communication Interface：USB 2.0 Full Speed Interface
• Measure The Update Rate：4Hz Per Second, 8Hz, 16Hz Optional
• Material Sound Velocity Range：500-9999m,S,0.0179-0.3937in,Us
• Unit：mm or Inches
• Warranty Period：1year
• Wight：Containing The Battery 280g
• Dimension：153mmx76mmx37mm(Hxwxd)
• Operating Temperature：-10 to +50 ºC
• Transport Package：Carton Case
• Specification：153mm× 76mm× 37mm
• Trademark：NANBEI
• Origin：China
• HS Code：9031809090
• Production Capacity：3000sets,Month

Basic Info.

Model NO. UM-4DL Shape Rectangular Customized Non-Customized Name Industrial Parts Ceramic Ultrasonic Steel Plate Pi Display Screen 2.4qvga (320 × 240) Color OLED Screen Working Principle Ultrasonic Pulse / Echo Method and Echo / Echo Met Measure The Resolution 0.01 or 0.1mm(0.001 or 0.01in) Measuring Range 0.6 to 508 mm (0.025 to 20.00 Inch) Repeatability 0.05mm Gain High, Medium and Low Third Gear Adjustable Communication Interface USB 2.0 Full Speed Interface Measure The Update Rate 4Hz Per Second, 8Hz, 16Hz Optional Material Sound Velocity Range 500-9999m/S,0.0179-0.3937in/Us Unit mm or Inches Warranty Period 1year Wight Containing The Battery 280g Dimension 153mmx76mmx37mm(Hxwxd) Operating Temperature -10 to +50 ºC Transport Package Carton Case Specification 153mm× 76mm× 37mm Trademark NANBEI Origin China HS Code 9031809090 Production Capacity 3000sets/Month

Product Description

Industrial parts ceramic ultrasonic steel plate pipe wall thickness gauge

The UM-4 series is a new generation of gage, breakthrough technology for the same budget to provide better performance of the instrument, which greatly improved the performance of the previous ultrasonic thickness, with better measurement stability and repeatability. Widely used in petrochemical, power, boat and pipe, pressure vessel and storage tank wall thickness measurement. Can measure the thickness of metal materials, pipes, pressure vessels, sheet (steel, aluminum), plastic, iron pipe, PVC pipe, glass and other materials;


The main function

2.4-inch QVGA (320 × 240 dot matrix) color OLED screen, contrast 10000: 1, A-scan snapshot,
Zero-crossing measurement technology, gain third gear adjustable, maximum / minimum capture, difference / reduction rate mode,
High / low alarm, built-in multiple probe compensation line, the thickness of the color with the coupling or alarm and dynamic changes.
Penetration coating function: for the removal of the paint layer of the substrate net thickness measurement
Large capacity storage function: can store 100,000 thickness value

Technical Parameters


Display screen	2.4QVGA (320 × 240) color OLED screen, contrast 10000: 1
working principle	Ultrasonic pulse / echo method and echo / echo method using a twin crystal probe
Measuring range	Standard mode: 0.6 to 508 mm (0.025 to 20.00 inch) Coating mode: 3-25mm (for the removal of the paint layer of the substrate net thickness measurement) Coating thickness less than 2mm Depending on the probe used, the material to be measured and the surface condition
Pipe measurement lower limit (steel)	Φ20×3mm(PT08 Probe) Φ15×2mm(PT06 Probe) The indication error does not exceed ±0.1mm
Measure the resolution	0.01 or 0.1mm(0.001 or 0.01in)
Unit	mm or inches
Indication error	±0.05mm  (H≤10mm) ±(0.5% H+0.01 ) (H>10mm) Note: H is the thickness of the measured object
Indication stability	Using a breakthrough zero-crossing measurement technique, the thickness measurement is not affected by the attenuation strength of the material, the gain and the gate height, and has high measurement stability and reliability.
Repeatability	0.05mm
Gain	High, medium and low third gear adjustable
storage	Grid format storage, can store 100,000 thickness value, can be connected to the computer to export data, data can be statistics, analysis, archiving, printing reports and other operations.
Communication Interface	USB 2.0 Full Speed interface
Display mode	Thickness value mode, minimum / maximum capture mode, difference / reduction rate mode
V path correction	Automatic V sound path correction, compensation for dual crystal probe non-linearity
Measure the update rate	4HZ per second, 8HZ, 16HZ optional
Material sound velocity range	500-9999m/s,0.0179-0.3937in/us
Working language	Chinese, English, Japanese, German, French five languages to choose from
Alarm settings	Maximum / minimum alarm, dynamic changes in the thickness of the alarm when reading the color
Power	Two 1.5V AA batteries
Operating time	Two AA batteries, the use of time is greater than 35 hours
Turned off	Optional 5,10,20 minutes without operation after the automatic shutdown, or can only manually shut down
Operating temperature	-10 to +50 ºC, with special requirements up to -20 ºC
Dimension	153mm×76mm×37mm(H×W×D)
Wight	Containing the battery 280g
warranty period	1year


Standard configuration

Number	Name	Model	Quantity
1	Thickness gauge host	UM-4DL	1
2	Standard probe	TC510	1
3	Instrument box	None	1
4	Alkaline batteries	1.5V	2
5	Coupling agent 50g	None	1
6	USB cable	USB2.0	1
7	Communication software CD	DataView	1


Option

Rubber jacket;
Numerous selectable probes;
Calibration ladder test block;
Coupling agent and high temperature coupling agent
Interface cable and communication software

FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.


Pre-sale service

· 24hours online to ensure quick response to customers' inquiry or online message;

· Guide customers to choose the best suitable machine model;

· Offer detailed specification and competitive prices;

Contract execution

· Machine production will be arranged strictly according to the contract;

· Machine photos will be sent to you for inspection during production;

· Send customs clearance documents by DHL;

· Update latest news after delivery and prepare customs clearance;

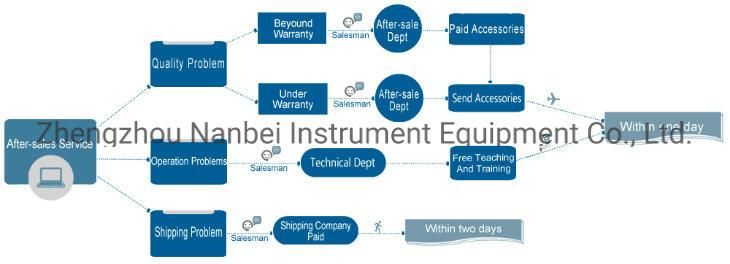

After-sale service

· 12 months warranty except for wear parts;

· Broken spare parts (except for wear parts) will be sent for free due to quality problems;

· In time response to customers technical problems;

· New products update for customers' reference

Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!

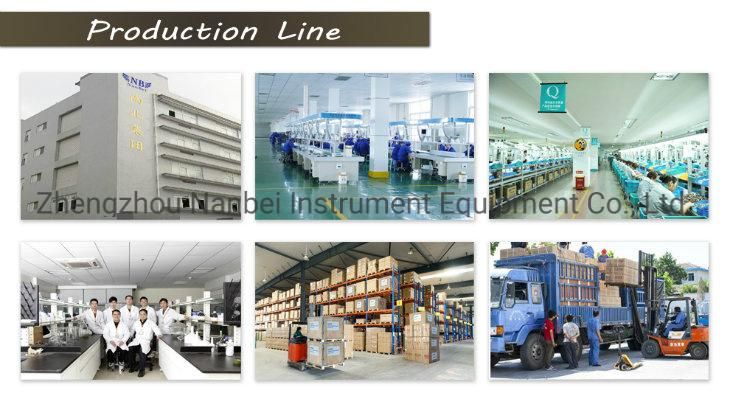

Factory Show:


Certification:
Our products have international certifications such as SGS, CE, ISO!

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
