Supmeter Mini Weighing Indicator with RS485 and RS232

Changsha Supmeter Technological Co., Ltd.
  • After-sales Service：24 Hours After-Sale Service
  • Warranty：12 Months
  • Weighing：999999
  • Accuracy：0.1g
  • Display Type：LED
  • Display Digits：6 digits

Base Info

  • Model NO.：BST106-B60S[L]
  • Measure Method：Semi-Automatic
  • Shell Material：Aluminum
  • Application：Heavy Industrial
  • Certification：CE
  • Customized：Customized
  • Power Supply：DC24V
  • Communication：RS485 and RS232
  • Protocol：Modbus RTU
  • Transport Package：Carton Box
  • Specification：107*60*100mm [W*H*D]
  • Trademark：SUPMETER
  • Origin：China
  • HS Code：8537109090
  • Production Capacity：1000000PCS,Year

Description

Power SupplyAC24V±20%Display

5 Red Led Digital Tubes for English&Digit Display

Sampling Frequency640HzA/D Convert24-bitKeypad4 keys for Shortcut mode operation with key toneExcitation Voltage Output of LoadcellDC12VMax. Connection number of Loadcell8 Loadcells (350Ω)[mV]Signal Input Range0-19.5mVDO2 Normally Open/Closed Relays:AC250V/DC24v,1AAO1Analog Signal Output: 4~20mA.Communication PortCOM1:RS232;COM2:RS485Outline Dimension107 × 60 × 100 mm (W×H×D)Net Weight Approx. 1.2kgIP GradeIP65Verfication Accuracy0.03%Static Weighing/Force Measuring Accuracy0.2%∼0.5%

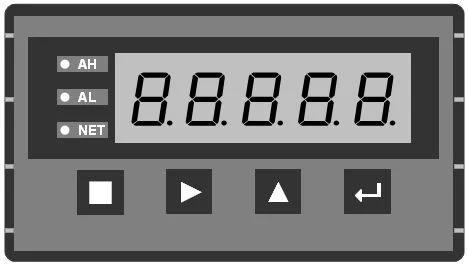

Operation Interface Diagram:

Supmeter Mini Weighing Indicator with RS485 and RS232

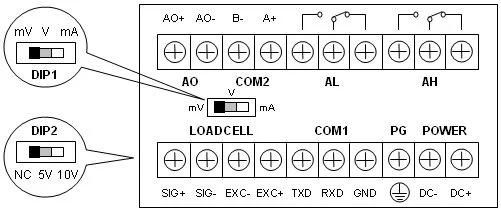

Terminal:

Supmeter Mini Weighing Indicator with RS485 and RS232

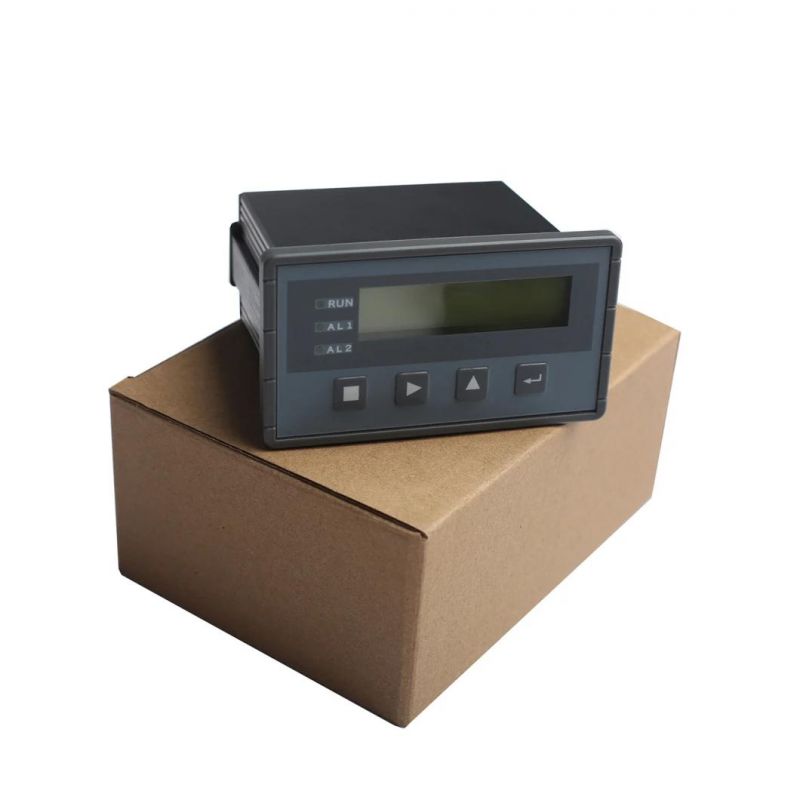

Package:

Supmeter Mini Weighing Indicator with RS485 and RS232
