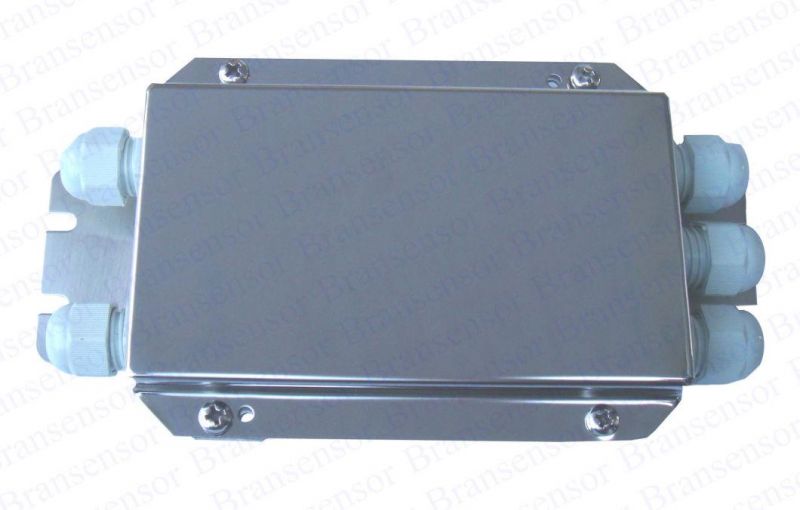

Stainless Steel Load Cell Junction Box (BJCSS004-A)

Hefei Brans Measuring And Controlling Technology Co., Ltd.
  • Material：Stainless Steel
  • Potentiometer：USA Bourns
  • Channels：2, 4 Channels
  • Application：Weighing Scales
  • Connect Terminals：Spring Clamp Screwless
  • Sealed Joints：Stainless Steel Joints

Base Info

  • Model NO.：BJCSS004-A
  • Transport Package：Exporting Cartons
  • Specification：203*96*36mm
  • Trademark：BRANS
  • Origin：China
  • HS Code：8536300000
  • Production Capacity：100000pieces,Day

Description

NUMBERITEMDETAILS1Model bumberBJCSS004-A2Connection versions2, 43Material of housingStainless steel4Circuit Boardwith anti-fungal coating5PotentiometersBOURNS-3296, 100Kohms, 25-turn cermet6Connect TerminalsSpring clamp screwless, 12-28 AWG7Sealed JointsSteel or plastic joints8TrimmingIndividual cell, signal trim9EnclosureStainless Steel NEMA Type10Protection ClassIP6511Size203*96*36mm(L*W*H)12WarrantyOne-year limited warranty Stainless Steel Load Cell Junction Box (BJCSS004-A)

5. Applications
Universal applications in weighing machinery, Process Weighing, weighing scales like Truck scales, tank and silo weighing systems, test & measurement and process automation and control sectors which Commonly used in multi-load cell weighing applications

6. Relevant industries: Weighing Machinery, Process Weighing, Process Automation + Contro, Test + Measurement

All of these junction boxes can be customized with Aluminium (A), polyester (P) or stainless steel (E) housing. Welcome to Brans and talk about it.
