High Precision Pneumatic Measuring Head Od Measuring Head and System

Henan Dae Sung Reed Co., Ltd.
  • After-sales Service:Technical Support
  • Warranty:12 Months
  • Type:Limit Gauge
  • Measurement Object:Inside Diameter
  • Test Methods:Through Check Method
  • Material:Steel

Base Info

  • Model NO.:OD
  • Precision Gauge:Precision Gauge
  • Certification:ISO, CE
  • Usage:For Working, For Inspection, For Checking
  • Shape:Cylinder
  • Customized:Non-Customized
  • Length of Hole:4mm +
  • Diameter of Hole:10-60mm
  • Depth of Hole:8mm +
  • Work Mode:Pneumatics
  • Measured Surface Width:1mm +
  • Sensitivity:High
  • Measurement Accuracy:+,- 0.01mm
  • Transport Package:Standard Export Package
  • Specification:inside diameter
  • Trademark:HDK
  • Origin:Cn
  • HS Code:9017800000
  • Production Capacity:5000 Sets Per Month

Description

Basic Info.

Model NO. OD Precision Gauge Precision Gauge Certification ISO, CE Usage For Working, For Inspection, For Checking Shape Cylinder Customized Non-Customized Length of Hole 4mm + Diameter of Hole 10-60mm Depth of Hole 8mm + Work Mode Pneumatics Measured Surface Width 1mm + Sensitivity High Measurement Accuracy +/- 0.01mm Transport Package Standard Export Package Specification inside diameter Trademark HDK Origin Cn HS Code 9017800000 Production Capacity 5000 Sets Per Month

Product Description

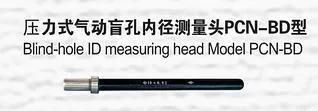

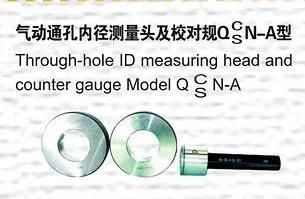

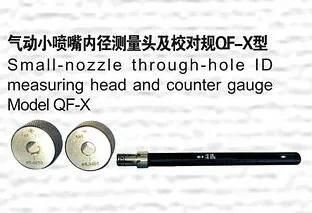

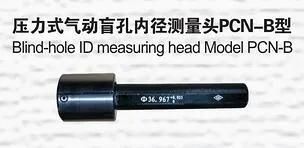

Gauge Heads for Inside Diameter (Direct type)
This type of gauge heads are used to measure inside diameter of holes.
Air is directly released through nozzle hole into the measured product and this type
provides non-contact measurement.
High Precision Pneumatic Measuring Head Od Measuring Head and SystemHigh Precision Pneumatic Measuring Head Od Measuring Head and SystemHigh Precision Pneumatic Measuring Head Od Measuring Head and System

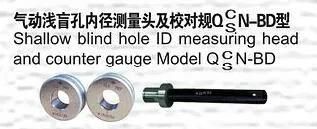

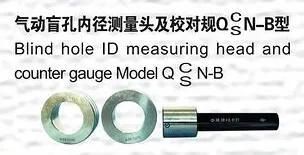

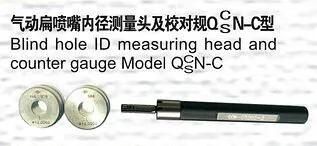

Gauge Heads for Inside Diameter (Indirect Type/Leaf Type)
In some product conditions, where direct type is not a proper choice, the measurement should
use indirect contact type. In this type, air nozzle hole is set under a leaf with carbide
ball on its measuring point. The carbide ball directly contact the product surface. Differ
with direct type, air from the nozzle hole is not directly released into the product.
High Precision Pneumatic Measuring Head Od Measuring Head and SystemHigh Precision Pneumatic Measuring Head Od Measuring Head and SystemHigh Precision Pneumatic Measuring Head Od Measuring Head and SystemHigh Precision Pneumatic Measuring Head Od Measuring Head and System

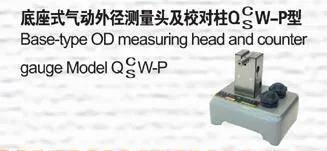

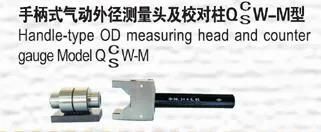

Gauge Heads for Outside Diameter (Direct type)
This type of gauge heads are used for measuring outside diameter and provide non-contact
measurement.
Two types of snap and ring style are available.
High Precision Pneumatic Measuring Head Od Measuring Head and SystemHigh Precision Pneumatic Measuring Head Od Measuring Head and System
aster Gauges for Air Micrometer
Gauge heads are used together with an air micrometer, which is a comparator type instrument
calibrated using a pair of master rings or plugs.
A pair of masters consists of upper and lower part of limit sizes.
High Precision Pneumatic Measuring Head Od Measuring Head and System
