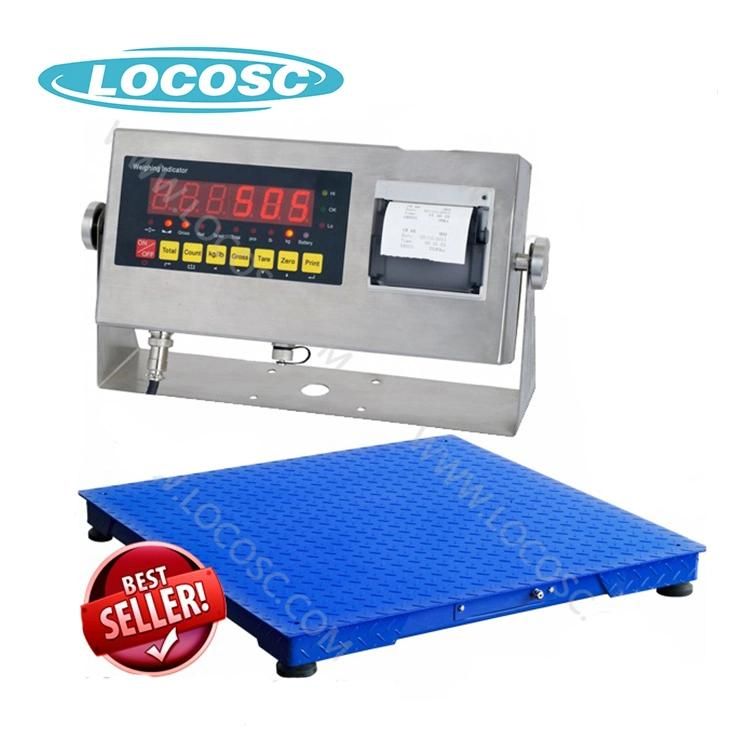

Lp7620 Weighing Platform Scale (NTEP indicator)
Locosc Ningbo Precision Technology Co., Ltd.- Structure：Electronic Scale
- Display Type：LED,LCD
- Installation：Platform Scale
- Automation：Automation
- The Weighing Method：Static Truck Scale
- Scale Structure：U-Type Steel
Base Info
- Model NO.：LP7620
- Operating Environment：Explosion-proof Loadometer
- Lightning Protection：Without Lightning Protection
- Rated Load：1000~10000kg
- Accuracy：0.2~2kg
- Surface：Powder Coating
- Transport Package：Carton
- Specification：1mX1m 1.2mX1.2
- Trademark：LOCOSC
- Origin：Zhejiang, China (Mainland)
- HS Code：8423829090
- Production Capacity：2000 Piece, Month
Description
Basic Info.
Model NO. LP7620 Operating Environment Explosion-proof Loadometer Lightning Protection Without Lightning Protection Rated Load 1000~10000kg Accuracy 0.2~2kg Surface Powder Coating Transport Package Carton Specification 1mX1m 1.2mX1.2 Trademark LOCOSC Origin Zhejiang, China (Mainland) HS Code 8423829090 Production Capacity 2000 Piece/ MonthProduct Description
Specifications
weighing platform scale: stainless steel ,low profile scale, OIML load cell(optional)1t-10t 1m*1m 1.2m*1.2m 1.5m*1.5m 2m*3mProduct Name: weighing platform scale
- No base frame, low profile, self-aligning.
- U-type beam, welded with special clamping apparatus.
- Material: C.S. or S.S., Pan: smooth or slipproof plate.
- C.S. surface: painted & baked or galvanized.
- S.S. surface: polished & brushed.
- Patent load introduction swivel foot.
- Four load cells: alloy steel or stainless steel.
- Normal capacity: 0.5/1/1.5/2/3/5/10t.
- Normal size: 1.0×1.0/1.2×1.2/1.2×1.5/1.5×1.5/1.5×2.0/2.0×2.0/2.0×3.0m.
- Resolution: normally 3000e, optional 6000d or 15000d.
