• Measure Method：Automatic
• Accuracy：A
• Precision Measuring Device：Precision Measuring Device
• Certification：GB, CE, ISO
• Customized：Customized
• Transport Package：Carton Packing
• Trademark：Lee Power
• Origin：China
• Production Capacity：1000set,Month

Basic Info.

Measure Method Automatic Accuracy A Precision Measuring Device Precision Measuring Device Certification GB, CE, ISO Customized Customized Transport Package Carton Packing Trademark Lee Power Origin China Production Capacity 1000set/Month

Product Description

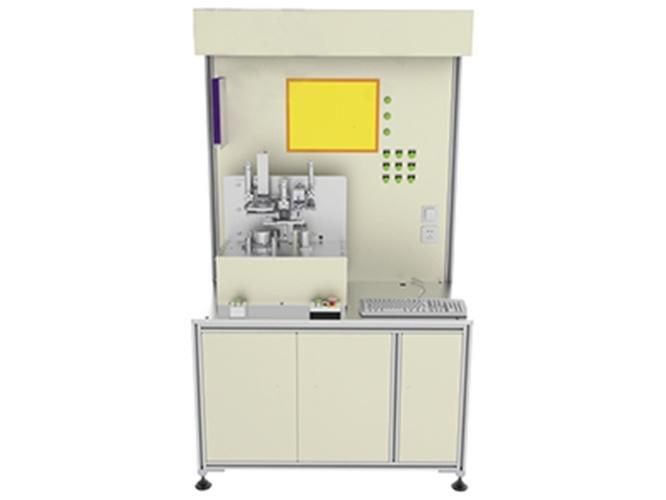

Comprehensive Measuring Machine for Connecting Rod
Comprehensive measuring machine for connecting rod can realize the automatic measurements of the following items: bore diameter, roundness and cylindricity; centre-to-centre distance between two bores; curvature, distortion and thickness. SPC analysis of the above measurement data can be conducted.

Features
High measurement precision
High measurement accuracy
High measuring efficiency ≤ 30 sec / piece
Greatly reduce labor costs

Specifications
Measurement principle: Comparison measurement. Displacement sensor is used to measure the difference between the measured parts and the calibration parts, and then the relative sizes of the measured parts are calculated.
Measurement range: Manual adjustments for various sizes measurements.
Measurement takt time: ≤30 seconds, under normal condition and operation
Measurement position technology level: sensor resolution: 0.0001mm, measurement accuracy: ±0.001mm, stability accuracy: ±0.001mm/4 h, GR&R: ≤10%.
