• Model NO.：KM-21121-100
• Precision Measuring Device：Precision Measuring Device
• Certification：DIN, GB, RoHS, ISO
• Customized：Customized
• Graduation：0.001mm
• Measurement：Metric
• Transport Package：ABS Box or Paper Box
• Specification：GB Standard
• Trademark：KM
• Origin：Shaanxi, China
• HS Code：9017300000
• Production Capacity：50000pieces,Month

Basic Info.

Model NO. KM-21121-100 Precision Measuring Device Precision Measuring Device Certification DIN, GB, RoHS, ISO Customized Customized Graduation 0.001mm Measurement Metric Transport Package ABS Box or Paper Box Specification GB Standard Trademark KM Origin Shaanxi, China HS Code 9017300000 Production Capacity 50000pieces/Month

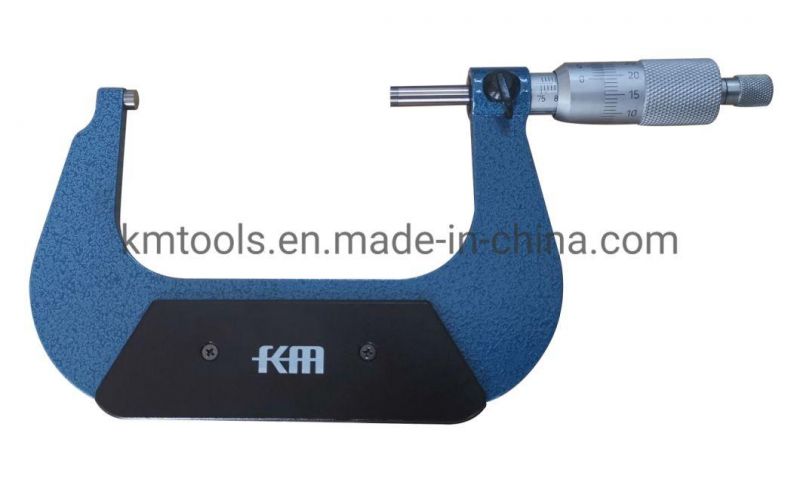

Product Description

Feature:
1.Graduation: 0.001mm(Metric);0.0001″(Inch).
2.No-parallax vernier scale for high precision measuring.
3.Carbide measuring faces.
4.Ratchet stop.
5.Painted frame.
6.Supplied in the storage case.

Specification:
Metric:

Order No.	Measuring Range	Graduation	Accuracy
KM-21121-25	0~25mm	0.001mm	0.004mm
KM-21121-50	25~50mm	0.001mm	0.004mm
KM-21121-75	50~75mm	0.001mm	0.005mm
KM-21121-100	75~100mm	0.001mm	0.005mm
KM-21121-125	100~125mm	0.001mm	0.006mm
KM-21121-150	125~150mm	0.001mm	0.006mm
KM-21121-175	150~175mm	0.001mm	0.007mm
KM-21121-200	175~200mm	0.001mm	0.007mm

Inch:

Order No.	Measuring Range	Graduation	Accuracy
KM-21121-1	0-1″	0.0001″	0.004mm
KM-21121-2	1-2″	0.0001″	0.004mm
KM-21121-3	2-3″	0.0001″	0.005mm
KM-21121-4	3-4″	0.0001″	0.005mm
KM-21121-5	4-5″	0.0001″	0.006mm
KM-21121-6	5-6″	0.0001″	0.006mm
KM-21121-7	6-7″	0.0001″	0.007mm
KM-21121-8	7-8″	0.0001″	0.007mm
