• Model NO.：LP7510P
• Application：Heavy Industrial
• Certification：OIML
• Customized：Customized
• Accuracy Class：OIML III
• Resolution：Display 30000
• Zero Stability Error：Tk0 < 0.1μV,K
• Span Stability Error：Tkspn < ± 6 Ppm,K
• Sensitivity：1 μV ,E
• Input Voltage：-30~30mv DC
• Excitation Circuit：5 VDC
• AC Power：AC100~250V
• Operation Temperature：- 10 °c ~ + 40 °c
• Operation Humidity：≤90%Rh
• Storage Temperature：- 40 °c ~ + 70 °c
• Transport Package：Carton
• Specification：204*45*209 mm
• Trademark：LOCOSC
• Origin：Ningbo, China
• HS Code：9031809090
• Production Capacity：40000 Piece, Month

Basic Info.

Model NO. LP7510P Application Heavy Industrial Certification OIML Customized Customized Accuracy Class OIML III Resolution Display 30000 Zero Stability Error Tk0 < 0.1μV//K Span Stability Error Tkspn < ± 6 Ppm//K Sensitivity 1 μV /E Input Voltage -30~30mv DC Excitation Circuit 5 VDC AC Power AC100~250V Operation Temperature - 10 °c ~ + 40 °c Operation Humidity ≤90%Rh Storage Temperature - 40 °c ~ + 70 °c Transport Package Carton Specification 204*45*209 mm Trademark LOCOSC Origin Ningbo, China HS Code 9031809090 Production Capacity 40000 Piece/ Month

Product Description

Description---------------------------------------------------------------------------------

LOCOSC LP7510P accumulation indicator has all the features of the standard model LP7510 but features a built-in printer, is perfect for working with static axle scales. This unit has a built-in needle printer and can print in different formats.

Application to waterproof bench scale, floor scale, hopper scale, pet scale, load cell, etc.





Specification-------------------------------------------------------------------------------

Display	6-digit 20mm LED or 25mm LCD with backlight
Accuracy class	OIML III
AD convert	Σ-△, 24 bit
Input voltage	-5mV~20mV
Resolving	display 50000, internal code 2000000
Minimum resolution	1μV/e
Excitation voltage	DC5V
Load cell interface	4-wire (optional: 6-wire)
Drive capability	1~6 350Ω analog load cell(s)
Power supply	AC110~240V 50/60Hz DC9V or built-in 6V/4Ah lead acid battery
Work environment	-10ºC ~ +40ºC, ≤85%RH
Battery enduring life	30 hours (with four 350Ω analog load cells)

Feature---------------------------------------------------------------------------------------

1. Stainless steel casing
2. AC adapter included (battery is optional)
3. Multiple weighing units available
4. Function: gross, tare, zero, hold, count weighing, accumulation weighing, overload/underload alarm
5. Power saving mode
6. Automatic date and time update
7. Ability to modify gravity based on different geographical locations
8. 100% manual zero range setting
9. Automatic error warning alarm
10. Splash proof keyboard and display
11. Connects to a remote display, multiple printers
12. Drives up to six 350Ω load cells





Load Cell Connection-------------------------------------------------------------------

It can connect 4pcs 350Ω load cells at most, both four and six line load cell are OK.
To make it simple, we use quick connector or standard plug. As bellow:











From high precision micro-analysis to more than 100 tons of weighing application, we specialize our products and solutions around various processes of the petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry. Main products: electronic weighing scale (bench scale, floor scale, platform scale, crane scale, animal scale, pallet truck scale), digital weighing indicator, load cell, sensor, weighing module, etc.

Our products have been well sold all over China, and 60% of them are exported to North America, Europe, South America, Southeast Asia. Besides, LOCOSC is an experienced company for ODM & OEM service. We have cooperation with well-known enterprises both at home and abroad. We owe our achievement to your trust and the driving force for self-transcendence. We promise to improve performance and reduce costs with abundant energy and passion.

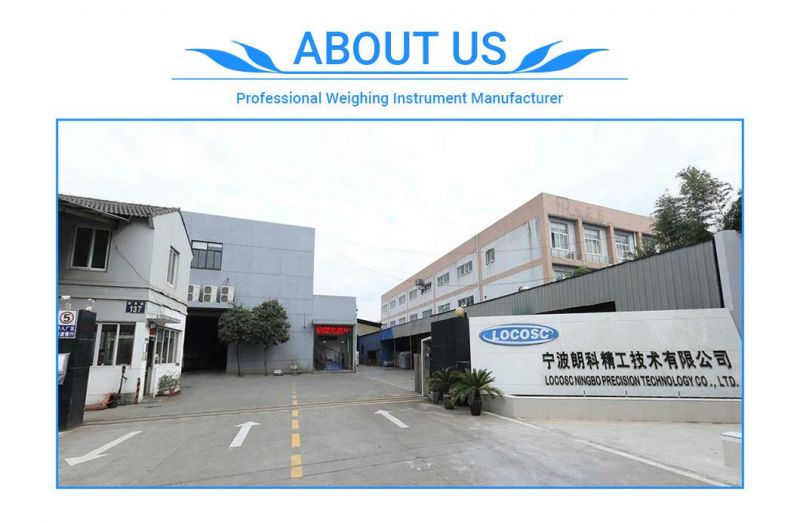

LOCOSC NINGBO PRECISION is a manufacturer of weighing apparatus and high precision instruments for professional use. Adhering to the business philosophy of "Modular craft, Pipelining production, Integrated brand, Global service", we are responsible for the R&D, manufacturing, solutions, sales and after-sales services of weighing instrument. We are headquartered in Ningbo and have branches in Shanghai, Guangzhou, Zhengzhou, Beijing, Chengdu, America. We have more than 500 employees and a factory area of 23,000 square meters.

The annual production capacity of LOCOSC is 30,000 bench scales, 30,000 floor scales, 4,000 truck scales, 200,000 weighing indicators, 500,000 load cells, 20,000 crane scales, 20,000 platform scales, 500 loader scales, and more than 100 weighing systems. Each product of LOCOSC has its uniqueness and has been awarded many certifications, such as ISO9001, NTEP, OIML, CE.
















Why Choose Us---------------------------------------------------------------------------

1. Your inquiry will be replied within 12 hours.
2. OEM or ODM projects are welcomed.
3. We send samples for customer to check the quality.
4. We provide an English manual for using and maintaining.
5. All products and accessories have been tested by three times before ship out.
6. All products have one year warranty. If there is no man-made problems, we will replace or repair for your freely.
7. We have a professional R&D team.
8. We provide good quality, on-time delivery and competitive price for you.
9. We offer the best after-sale service. If any problems happen, our team will do our best to solve for you.





FAQ--------------------------------------------------------------------------------------------

1. How to place an order for products?
Let us know your requirement or application, we will give you a quotation in 12 hours. Then we will send the PI after you confirm the order.

2. Do you have any minimum order quantity limit for load cell?
One piece for sample checking is available, but the sample price is high. In the mass production, unit price depends on the rough idea of Qty., the more the better.

3. Do your company have any certificate for products?
Yes, we have been awarded certifications, such as ISO9001, NTEP, OIML, CE. We can send you the certificated documents and test reports.

4. What areas can your products be applied to?
Our products are rich in variety and can be used in petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry.

5. Are you a trading company or a factory?
We are a group company specialized in the R&D and manufacture of weighing equipment for 12 years. Our factory is located in Ningbo, China. You can come to visit us. Looking forward to meeting you!
