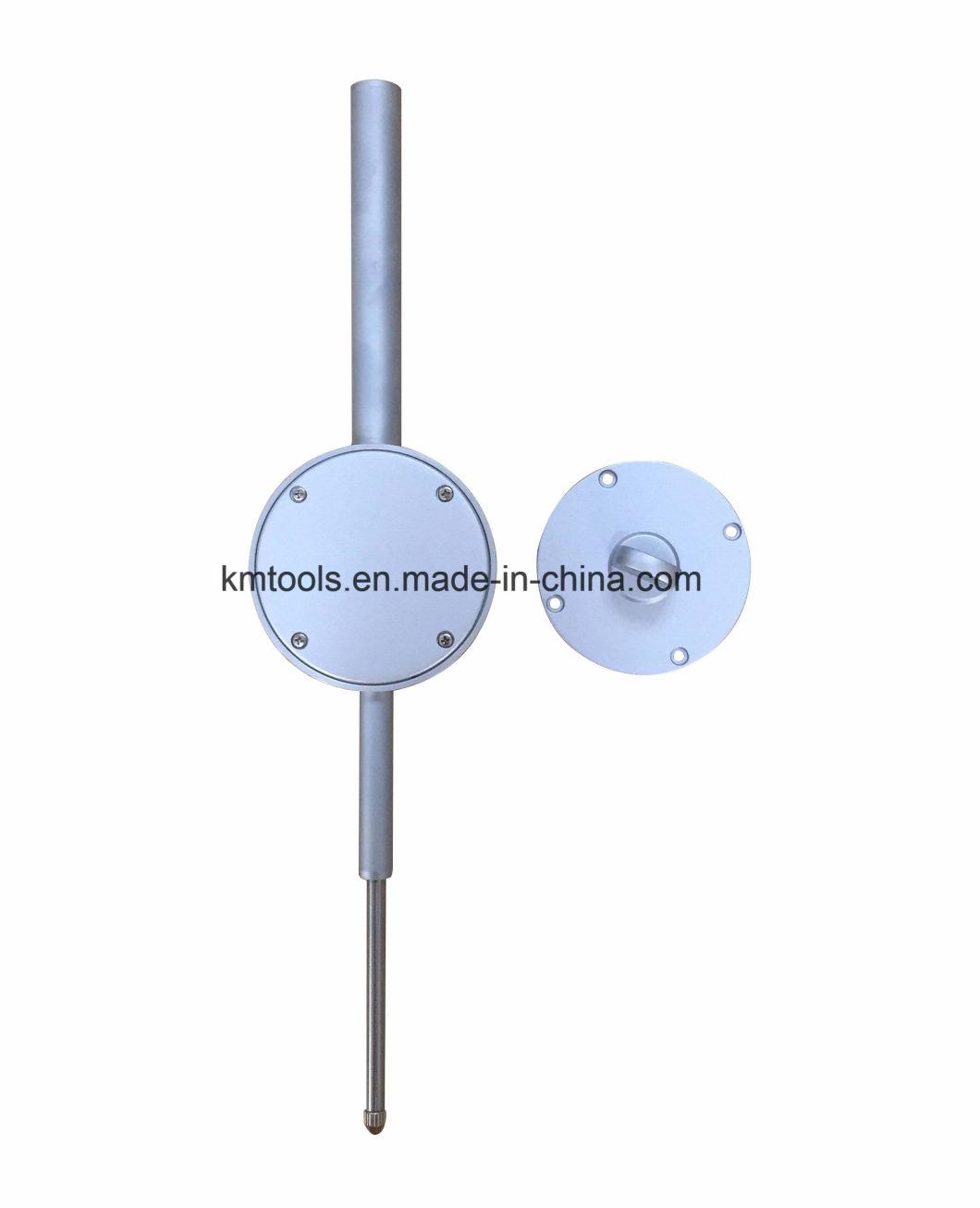

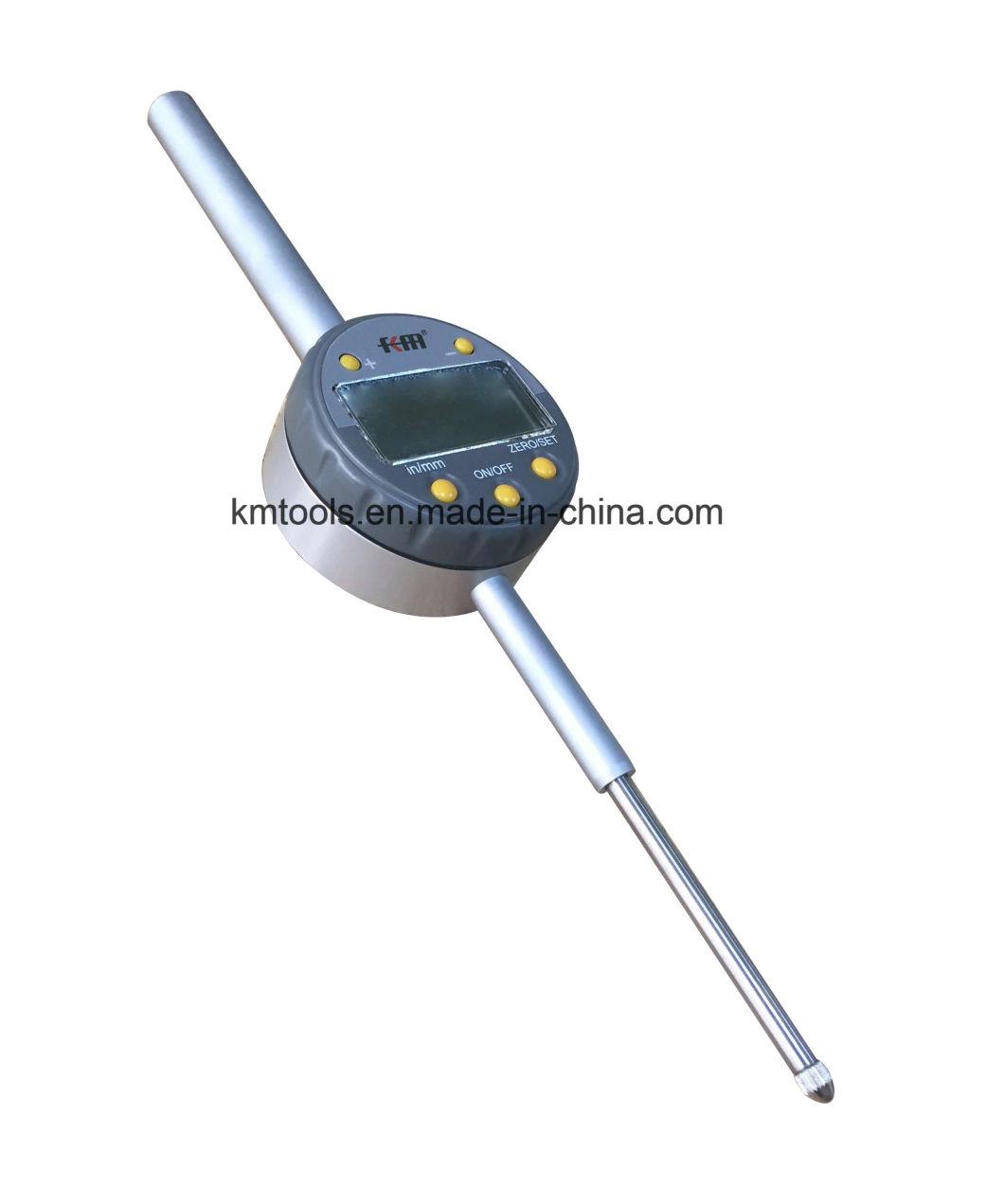

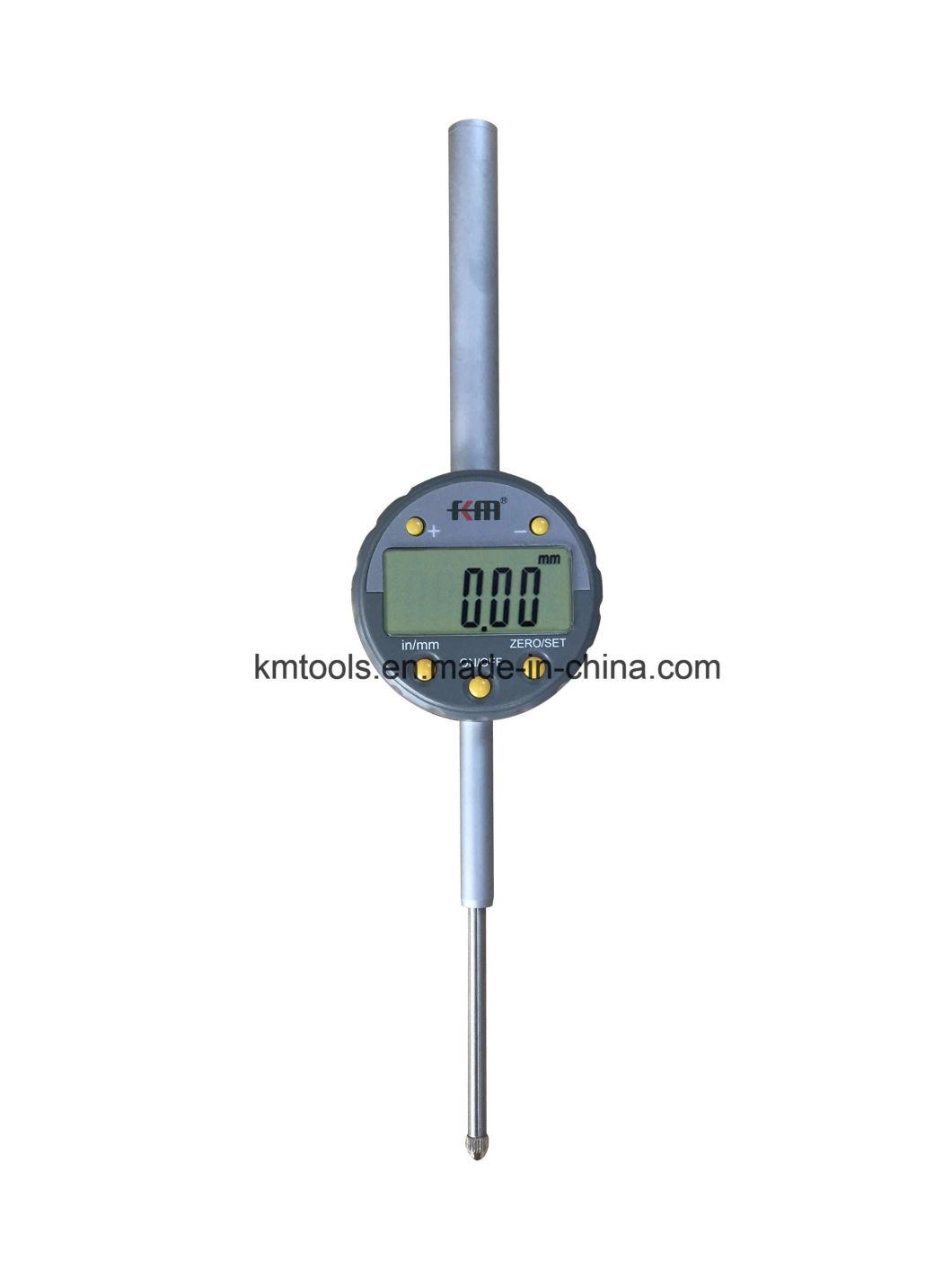

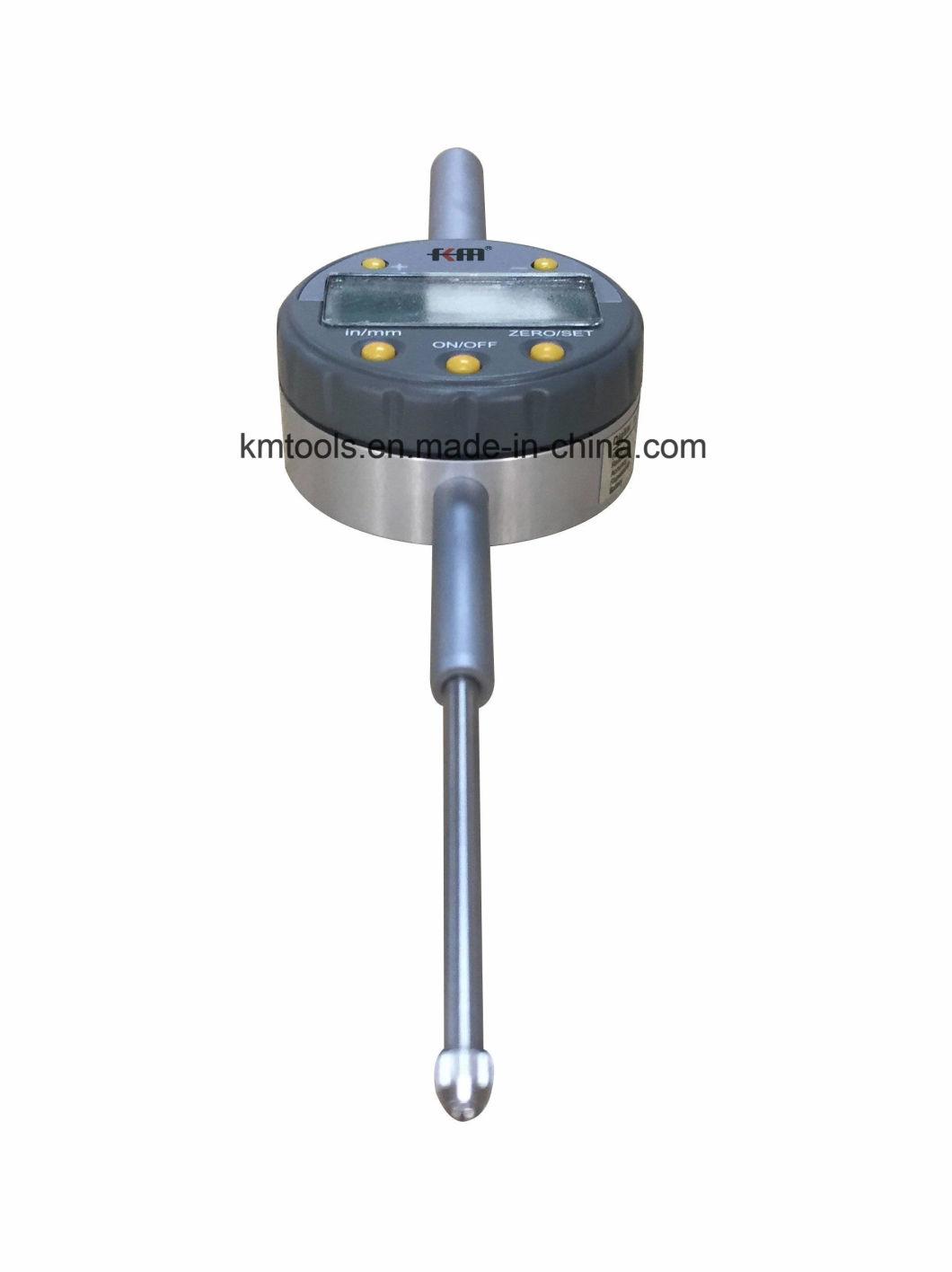

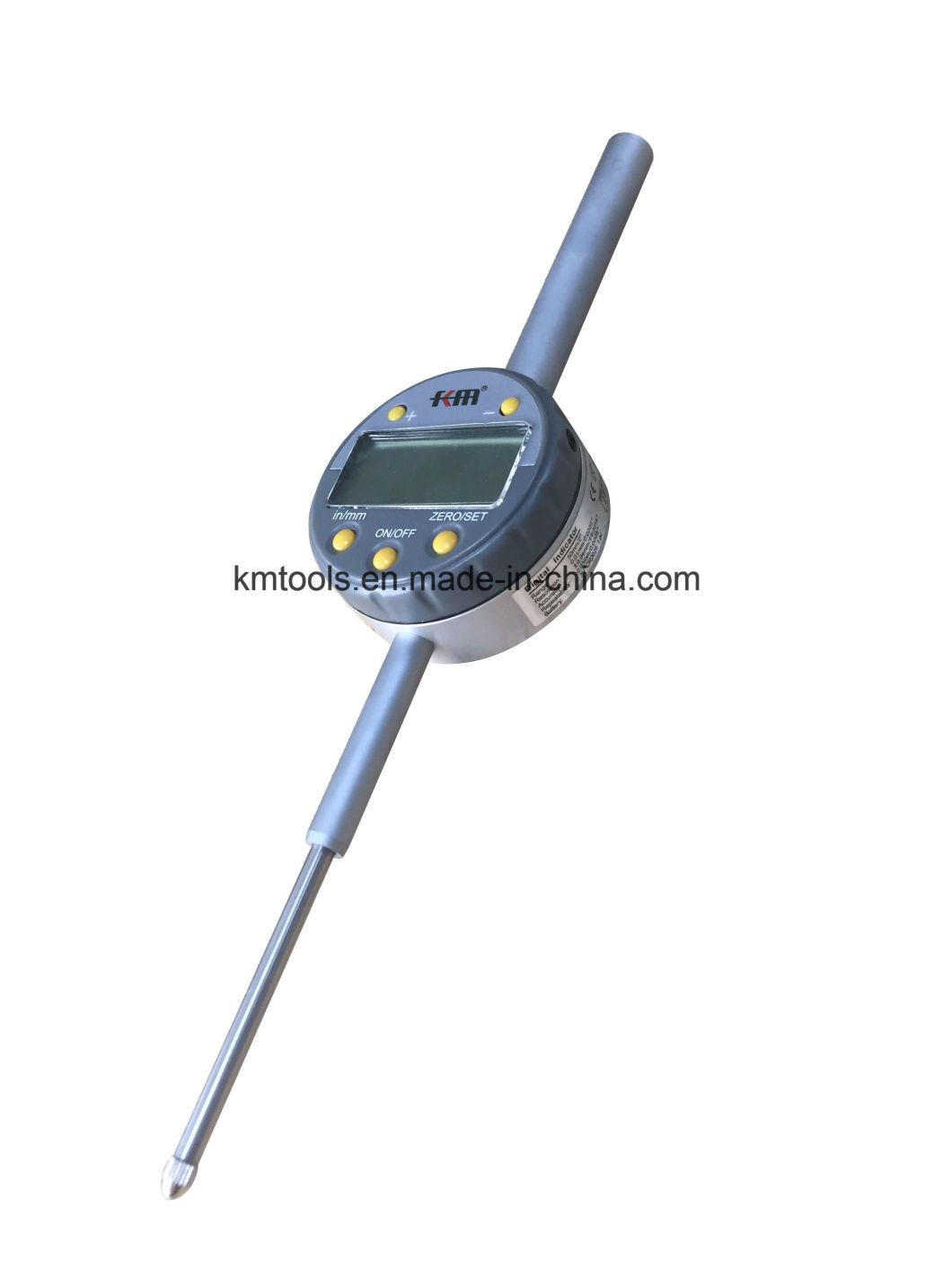

0-50mm/0-2′′ Digital Dial Indicator with 0.01mm/0.0005′′ Resolution
Deko Corporation- Type：Digital Indicator
- Measurement Object：Length
- Range：0-50mm,0-2′′
- Resolution：0.01mm,0.0005′′
- Precision：0.01mm
- Measure Method：Manual
Base Info
- Model NO.：KM-232LJ-50
- Precision Measuring Device：Precision Measuring Device
- Certification：DIN, GB, RoHS, ISO
- Customized：Customized
- Max Measuring Force：3.5n
- Measurement：Metric,Inch
- Transport Package：ABS Box
- Specification：GB Standard
- Trademark：KM
- Origin：Shaanxi, China
- HS Code：9017300000
- Production Capacity：50000pieces,Month
Description
Order No.
Range
Resolution
Accuracy
Max Measuring Force
Function
KM-232-12.7
0~12.7mm/0.5''
0.01mm/0.0005''
±0.02mm
1.6N
in/mm,ON/OF,ZERO
KM-232F-12.7
0~12.7mm/0.5''
0.01mm/0.0005''
±0.02mm
1.6N
in/mm,ON/OF,ZERO,
ABS/INC,TOL
KM-232J-12.7
0~12.7mm/0.5''
0.01mm/0.0005''
±0.02mm
1.6N
in/mm,ON/OF,ZERO,
+, -
KM-232L-25.4
0~25.4mm/1''
0.01mm/0.0005''
±0.03mm
2.2N
in/mm,ON/OF,ZERO
KM-232LF-25.4
0~25.4mm/1''
0.01mm/0.0005''
±0.03mm
2.2N
in/mm,ON/OF,ZERO,
ABS/INC,TOL
KM-232LJ-25.4
0~25.4mm/1''
0.01mm/0.0005''
±0.03mm
2.2N
in/mm,ON/OF,ZERO,
+, -
KM-232L-50
0~50mm/2''
0.01mm/0.0005''
±0.04mm
3.5N
in/mm,ON/OF,ZERO
KM-232LF-50
0~50mm/2''
0.01mm/0.0005''
±0.04mm
3.5N
in/mm,ON/OF,ZERO,
ABS/INC,TOL
KM-232LJ-50
0~50mm/2''
0.01mm/0.0005''
±0.04mm
3.5N
in/mm,ON/OF,ZERO,
+, -
